MDT BE-GTL1TW.B1 sklenený tlačidlový panel II Light, 1-násobný, RGBW stavová LED, teplotný senzor, biely

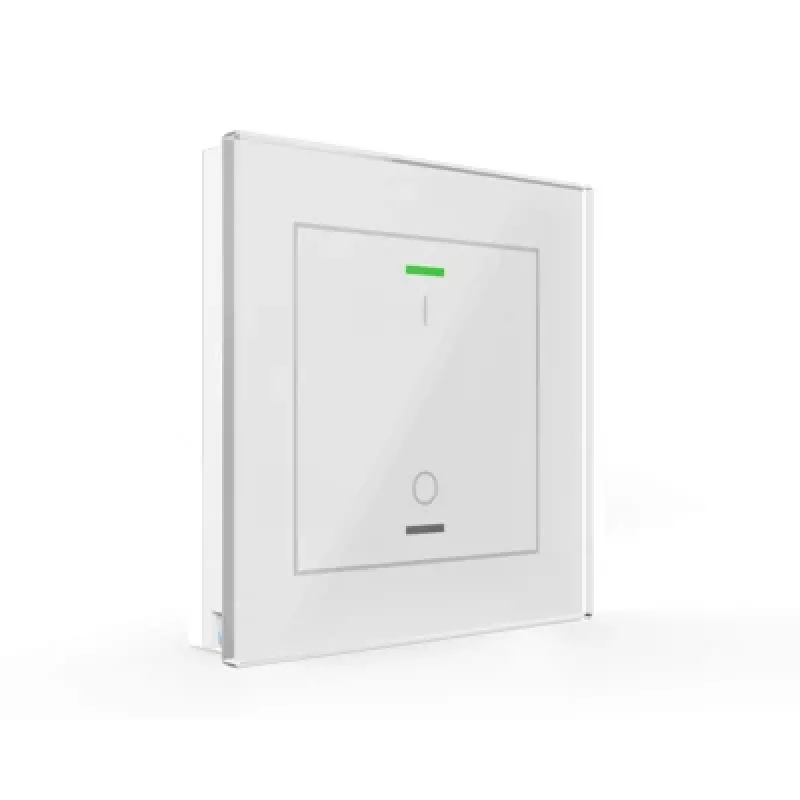

The MDT BE-GTL1TW.B1 Glastaster II Light combines a sleek glass touch surface with integrated temperature sensing and RGBW status indication in a single-gang KNX device. Unlike conventional push-buttons, it offers adjustable backlighting and flexible functions for switching, dimming, blind control, value sending, and scene recall.

Highlights

• 1-gang glass push-button with integrated temperature sensor
• RGBW status LED with adjustable brightness
• KNX bus powered, flush-mounted on standard switch box
• Functions: switching, dimming, blind control, value sender, scene recall
• White glass surface, modern flat design

In daily use

Configure the device via ETS to match your building automation needs. The temperature sensor provides room temperature values on the KNX bus, while the RGBW LED can signal status in your preferred colour. The glass surface is easy to clean and fits standard flush-mounted boxes.

Full specifications

• Product type: Glass push-button sensor
• Series: Glastaster II Light
• Number of buttons/channels: 1-gang
• Integrated sensor: Temperature sensor
• LED indicators: RGBW status LED
• Colour: White
• Material: Glass surface
• Communication protocol: KNX
• Mounting type: Flush-mounted
• Power supply: KNX bus (21-32V DC)
• Current consumption: Max. 10 mA
• Protection class: IP20
• Operating temperature: -5°C to +45°C
• Bus connection: KNX bus terminal
• Configuration software: ETS

Final note

For precise integration, refer to the manufacturer's ETS application description.
