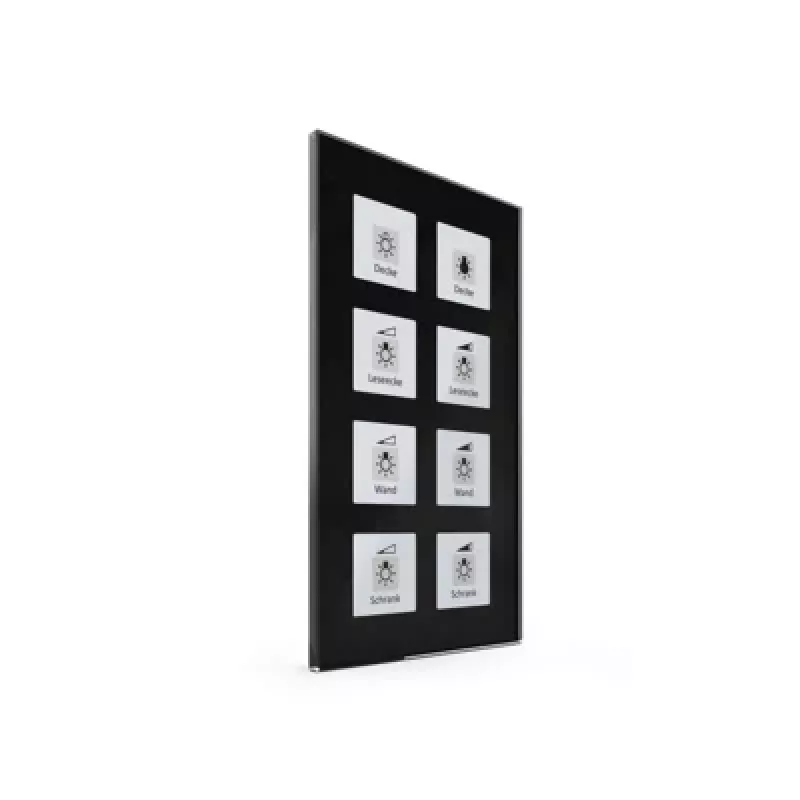

MDT BE-GTT8S.01 sklenené tlačidlo Plus 8-násobné čierne s teplotným senzorom

The MDT BE-GTT8S.01 is a KNX glass push button with 8 configurable buttons and an integrated temperature sensor. Its active color display shows symbols, text, values, and background colors, while the built-in room thermostat enables precise climate control.

Advantages

This device combines intuitive control with elegant design. The glass surface is easy to clean, and the color display allows clear visualization of functions. The integrated temperature sensor eliminates the need for a separate thermostat, saving space and installation effort.

Suitable for

• Residential and commercial buildings with KNX bus systems
• Control of lighting, blinds, heating, and scenes
• Flush-mounted installation in standard wall boxes

Key specifications

• Number of buttons: 8-fold (configurable)
• Integrated sensor: Temperature sensor
• Display: Active color display with symbols, text, values, background color
• Thermostat function: Integrated room thermostat
• Logic functions: 4 logic blocks
• Bus system: KNX
• Mounting type: Flush-mounted
• Material: Glass surface, plastic housing
• Color: Black
• Operating voltage: KNX bus voltage
• Bus current consumption: approx. 10 mA
• Protection class: IP20
• Operating temperature: -5 to +45 °C
• Relative humidity: 5 to 95 % (non-condensing)
• Configuration: ETS Software (ETS5 or higher)
• Firmware update: Yes, via ETS
• Installation depth: 30 mm

Recommendations

For optimal performance, use with a KNX power supply and configure with ETS5 or higher. Ensure installation in a standard flush-mounted box.
