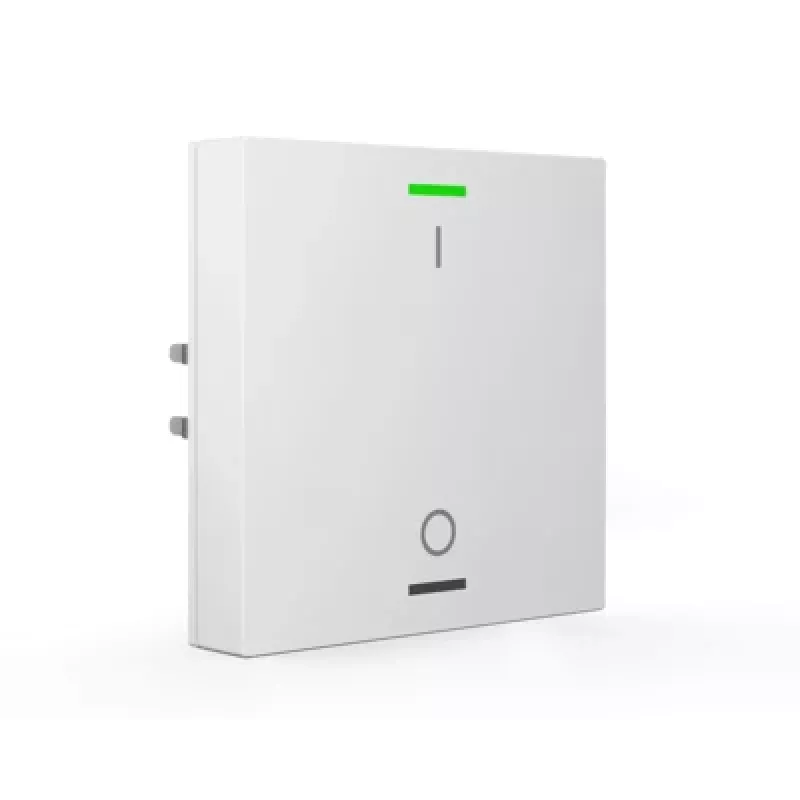

MDT BE-TAL6301.B1 KNX tlačidlo 1-násobné s RGBW stavovou LED a teplotným senzorom, Studio biela lesklá

In modern smart buildings, a single elegant control point can manage lighting, blinds, and scenes. The MDT BE-TAL6301.B1 KNX push-button brings that capability to any 63mm switch range, combining a sleek studio white glossy finish with an integrated RGBW status LED and temperature sensor for intelligent room automation.

Key specifications

• 1-gang KNX push-button with short/long press differentiation
• RGBW status LED with adjustable colour and brightness
• Integrated temperature sensor
• Functions: switching, dimming, blind control, value transmitter, scene recall, sequence control
• Flush-mounted for 63mm switch ranges (e.g., Gira Standard 55, Jung A 550)
• Powered via KNX bus, current consumption approx. 10 mA
• Operating temperature: 0 to +45 °C
• Protection class: IP20
• Material: high-quality plastic
• Configuration via ETS (Engineering Tool Software)

Why choose it

The push-button offers versatile control functions and a customisable RGBW LED for status indication, all in a compact design that fits standard 63mm frames. The integrated temperature sensor adds room climate data to your KNX system without extra devices.

Ideal use cases

• Residential smart homes for lighting and blind control
• Office buildings requiring scene-based automation
• Hotel rooms for guest-friendly control of multiple functions
• Integration into existing 63mm switch designs

Good to know

The device is powered directly from the KNX bus and configured with ETS. It is designed for indoor use with an operating temperature range of 0 to +45 °C.
