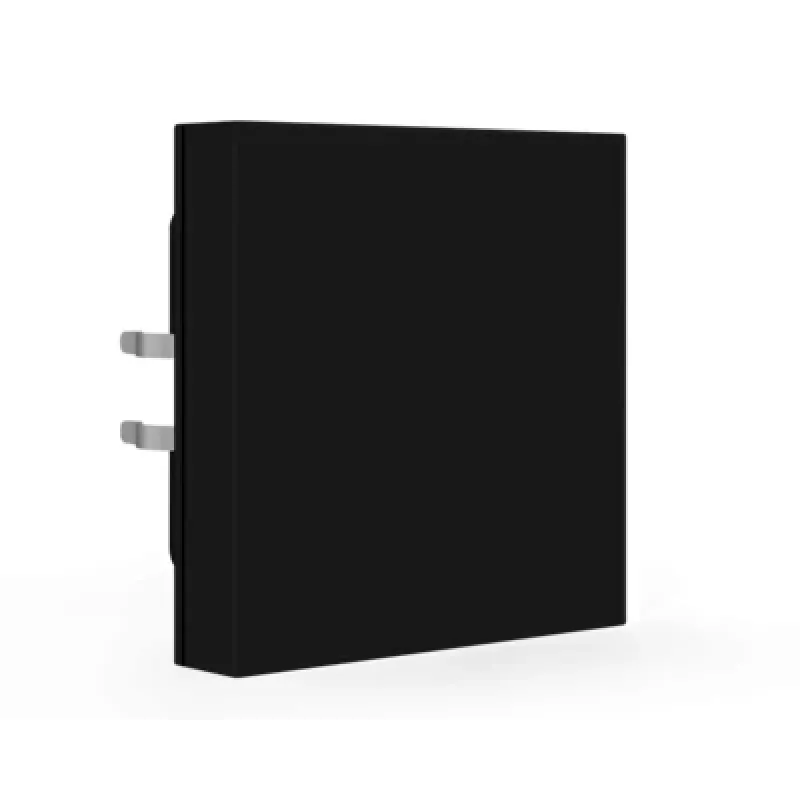

MDT KNX Tlačidlo Light 55 Basic 1-násobné matne čierne BE-TAL55B106.01

In a modern smart home, the MDT KNX Push Button Light 55 Basic 1-fold in matte black provides a sleek and reliable control point for lighting, blinds, or scenes. It is designed for flush-mounted installation in standard 55mm switch ranges such as Gira Standard 55 or Jung A 500, making it a versatile choice for both new builds and retrofits.

Key specifications

• Bus System: KNX
• Number of Buttons: 1-fold (1 rocker)
• Colour: Matte Black
• Integrated LED: 2-colour (red/green) for status and operation
• Functions: Switching, Dimming, Blind/Shutter Control, Value Transmitter, Scene Recall, Sequence Control
• Power Supply: KNX Bus (no auxiliary power supply needed)
• Mounting: Flush-mounted in standard wall box
• Material: Plastic
• Protection Class: IP20
• Operating Temperature: 0 to +45 °C
• Configuration Software: ETS (ETS5 or higher)
• Installation Depth: Approx. 25 mm
• Firmware Update: Yes, via ETS

Why choose it

This push button sensor offers flexible control with visual feedback via its integrated LED. It integrates seamlessly into KNX installations and can be configured for a wide range of functions, making it a compact and powerful addition to any building automation system.

Ideal use cases

• Smart home lighting control
• Blind and shutter automation
• Scene recall for home or office
• Building automation in commercial spaces

Good to know

The device is powered directly from the KNX bus, eliminating the need for additional wiring. It is configured using ETS5 or higher, and firmware updates are possible via ETS.
