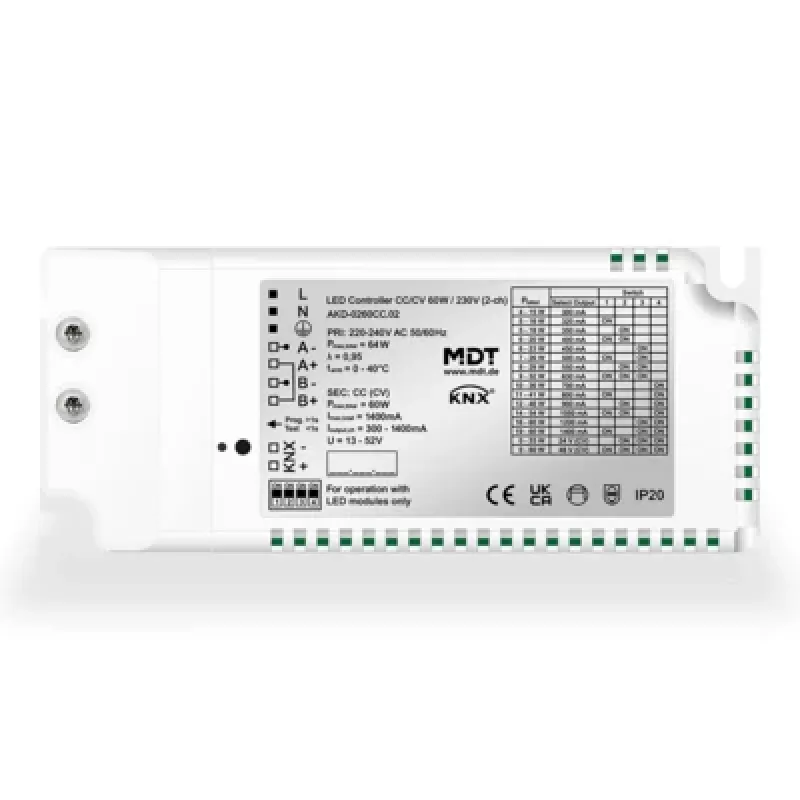

MDT LED kontrolér CC/CV 60W/230V 2-kanálový AKD-0260CC.02

With a total output power of 60W across two channels, this KNX LED controller delivers constant current or constant voltage to drive LED strips, modules, and luminaires with precision.

Overview

The MDT AKD-0260CC.02 is a flush-mounted KNX actuator for LED lighting. It provides two independent output channels, each capable of up to 30W, with selectable constant current (CC) or constant voltage (CV) operation. The device is configured via ETS and integrates seamlessly into KNX building automation systems.

What stands out

• Dual output channels with individual control
• Selectable CC/CV modes for flexible LED compatibility
• PWM dimming from 0 to 100%
• Wide output voltage range in CV mode (12-48V DC)
• Multiple selectable constant currents in CC mode
• Integrated protection against overload, short circuit, and overtemperature

Technical details

• Bus System: KNX
• Output Type: Constant Current (CC) / Constant Voltage (CV)
• Number of Channels: 2
• Total Output Power: 60W
• Output Power per Channel: Max. 30W
• Input Voltage: 230V AC
• Output Voltage (CV Mode): 12-48V DC
• Output Current (CC Mode): Selectable (250mA, 350mA, 500mA, 700mA, 1000mA, 1050mA, 1200mA, 1400mA, 1500mA)
• Dimming Range: 0-100%
• Dimming Technology: Pulse Width Modulation (PWM)
• Mounting Type: Flush-mounted (in-wall)
• Protection Features: Overload, Short Circuit, Overtemperature
• Standby Power Consumption: < 0.3W
• Operating Temperature: 0°C to +45°C
• IP Rating: IP20
• Configuration Software: ETS (KNX Tool Software)
• Compatibility: LED strips, LED modules, LED luminaires

Our verdict

A robust and flexible KNX LED controller for professional lighting installations, offering dual-channel control, CC/CV versatility, and comprehensive protection.
