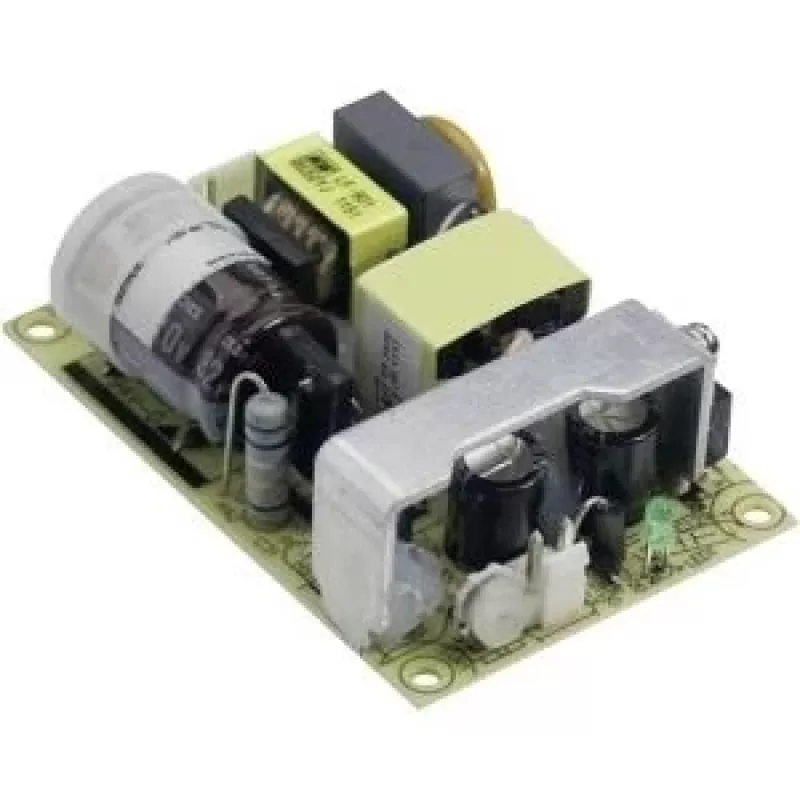

MEAN WELL EPS-35-12 35W 12V 2,92A AC/DC open-frame napájací zdroj

Industrial-grade AC/DC open frame power supply delivering a stable 12 VDC output at up to 2.92 A (35 W). With a wide 80–264 VAC input range and up to 90% efficiency, it ensures reliable operation in demanding automation, LED, and control systems.

Advantages

Free air convection cooling eliminates fan noise and maintenance. Protections against short circuit, overload, and overvoltage safeguard connected equipment. The compact open frame design integrates easily into space-constrained enclosures.

Suitable for

• Industrial automation and control panels
• LED lighting and signage
• Test and measurement instruments
• Telecommunication devices
• General electronic projects requiring a reliable 12V rail

Key specifications

• Output: 12 VDC, 2.92 A, 35 W
• Input: 80–264 VAC, 47–63 Hz
• Efficiency: up to 90%
• Protections: short circuit, overload, overvoltage
• Operating temperature: -30 to +70°C
• Isolation: 3000 VAC input to output
• MTBF: >1,000,000 hours
• Safety: UL62368-1, TUV EN62368-1, EAC TP TC 004

Recommendations

For reliable, efficient 12V power in industrial environments, the EPS-35-12 offers proven performance and long service life. Pair with proper ventilation and secure mounting for optimal thermal management.
