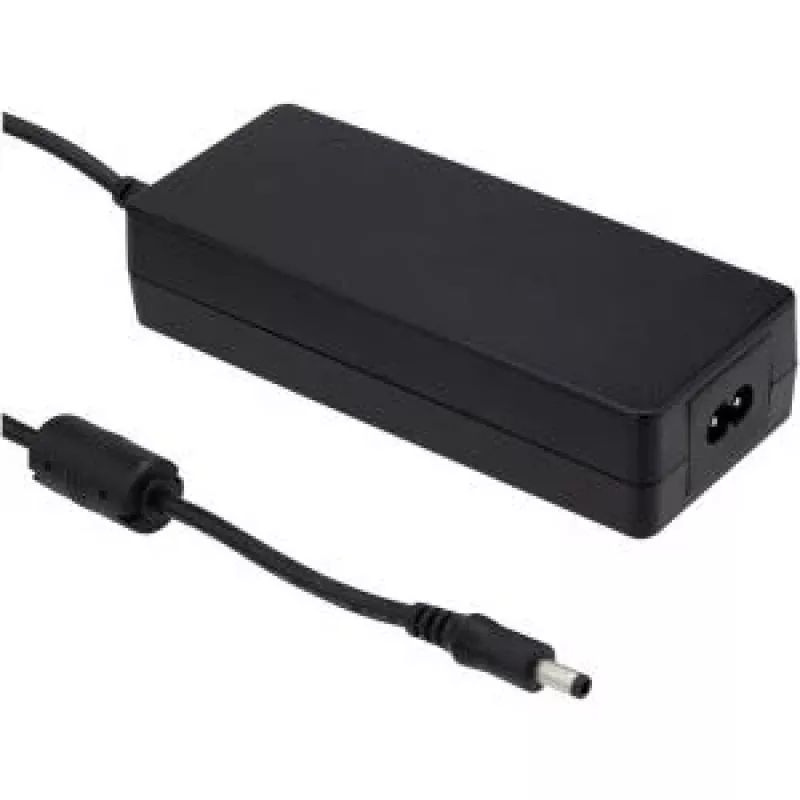

MEAN WELL GSM90B24-P1M 90W 24V medicínsky napájací zdroj s vymeniteľnými AC konektormi

In hospitals and clinics, where every piece of equipment must perform flawlessly, the MEAN WELL GSM90B24-P1M delivers stable 24V DC power to patient monitors, diagnostic devices, and portable medical instruments. This 90-watt wall-mount adapter meets stringent medical safety standards, ensuring both patient and operator protection.

Key specifications

• Output: 24 VDC, 3.75 A, 90 W
• Input: 80–264 VAC, interchangeable AC plugs (P1M series)
• Efficiency: up to 91%, no-load consumption <0.15 W
• Medical safety: IEC 60601-1 (3rd edition), 2xMOPP, leakage current <100 µA
• Protection: short circuit, overload, over voltage, over temperature
• Connector: 2.5 x 5.5 mm DC plug, center positive, 120 cm cable
• Operating temperature: -30 to +70 °C, free air convection cooling
• Certifications: UL, CUL, TUV, CB, FCC, CE, EAC, UKCA, RCM, PSE, KC, CCC

Why choose it

Engineered for medical environments, this adapter provides reinforced insulation and low leakage current, reducing risk to patients. Its wide input voltage range and interchangeable plugs make it suitable for global use, while high efficiency and low standby power cut energy costs. The compact, fanless design ensures silent operation and long-term reliability with an MTBF over 100,000 hours.

Ideal use cases

• Powering patient monitors and infusion pumps in hospitals
• Running portable diagnostic devices in clinics and labs
• Supplying medical carts and mobile workstations
• Use in home healthcare equipment like CPAP machines

Good to know

The adapter meets Energy Efficiency Level VI and includes comprehensive protection features. It comes with a 120 cm DC cable and a 2.5 x 5.5 mm plug. The operating temperature range of -30 to +70 °C allows use in various environments, and the 4000 VAC isolation voltage provides an extra safety margin.
