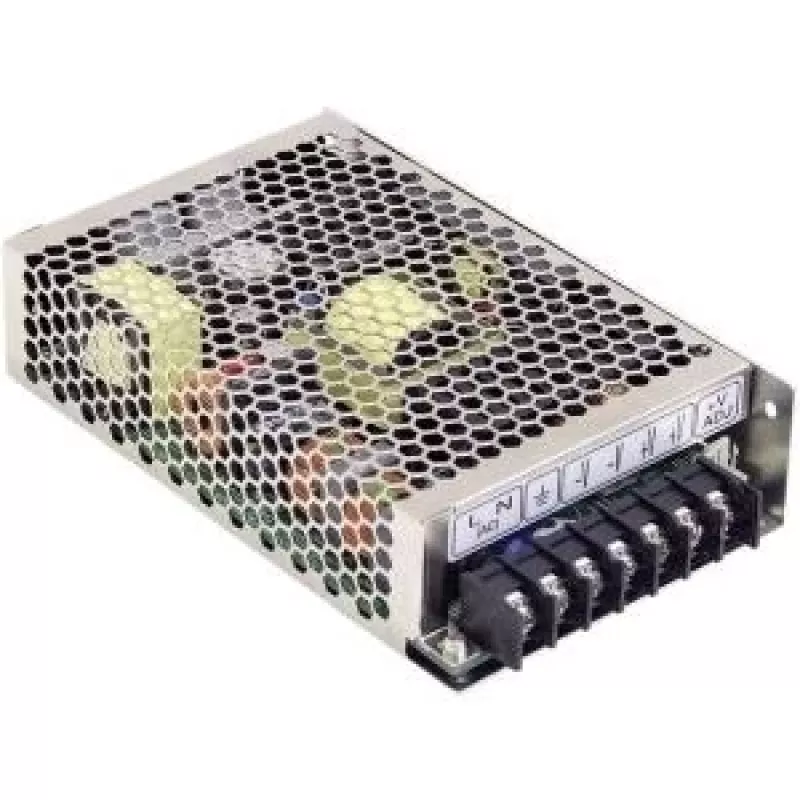

MEAN WELL HRP-150-24 150W 24V uzavretý napájací zdroj s PFC

The HRP-150-24 from MEAN WELL is a 150-watt enclosed AC/DC power supply that delivers a stable 24 VDC output with active power factor correction, making it an efficient choice for industrial and ITE applications. Unlike open-frame units, its metal housing provides durable protection and simplifies chassis mounting, while the wide input range accommodates both 85–264 VAC and 120–370 VDC, ensuring compatibility with diverse power environments.

Highlights

• 150 W output power with 24 VDC and 6.25 A current
• Active PFC (>0.95) for improved energy efficiency and compliance
• Wide input range: 85–264 VAC or 120–370 VDC
• Metal enclosed chassis with free air convection cooling
• Comprehensive protections: short circuit, overload, over voltage, over temperature
• Certified to UL60950-1, TUV EN60950-1, CB, and CE

In daily use

This power supply is built for reliability in demanding environments. With an operating temperature range of -30°C to +70°C and convection cooling, it operates silently without fans, reducing maintenance and points of failure. The output voltage is adjustable from 21.6 to 28.8 V, allowing fine-tuning for specific loads. Low ripple and noise (150 mVp-p) ensure clean power for sensitive electronics, while the 3 kVAC isolation provides safety and noise immunity.

Full specifications

• Output voltage: 24 VDC (adjustable 21.6–28.8 V)
• Output current: 6.25 A
• Output power: 150 W
• Input voltage: 85–264 VAC / 120–370 VDC
• Efficiency: 89%
• Ripple & noise: 150 mVp-p
• Power factor: >0.95 at 230 VAC full load
• Protections: short circuit, overload, over voltage, over temperature
• Operating temperature: -30 to +70°C
• Cooling: free air convection
• Mounting: chassis mount
• Housing: metal
• Isolation: 3 kVAC input to output
• Certifications: UL60950-1, TUV EN60950-1, CB, CE
• MTBF: >200K hrs (MIL-HDBK-217F)

Final note

With its robust metal enclosure, wide input tolerance, and active PFC, the HRP-150-24 is a dependable power solution for industrial automation, LED lighting, and other high-demand applications.
