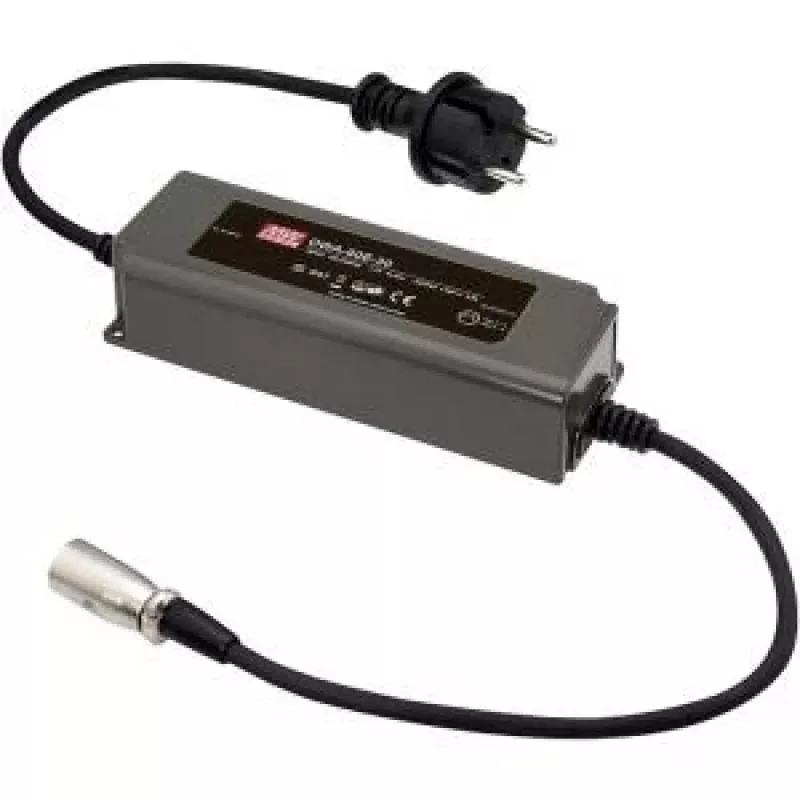

MEAN WELL OWA-90E-36 90W 36V 2,5A IP67 LED driver napájací zdroj, čierna

Powering outdoor LED lighting installations, the MEAN WELL OWA-90E-36 delivers a steady 36 VDC at up to 2.5 A, making it a dependable choice for landscape lighting, signage, and industrial automation. Its fully encapsulated IP67-rated plastic housing shrugs off dust, moisture, and temperature swings from -40°C to +70°C, so it thrives where ordinary power supplies fail.

Key specifications

• Output: 90 W, 36 VDC, 2.5 A
• Input: 90–264 VAC or 127–370 VDC
• Efficiency: up to 90%
• Protection: short circuit, over current, over voltage, over temperature
• Cooling: free air convection, no fan needed
• Isolation: 3.75 kVAC I/P-O/P
• Certifications: UL, CUL, TUV, CB, CE
• Dimensions: 171 × 63 × 37.5 mm (L × W × H)
• Weight: 0.77 kg

Why choose it

Built-in active PFC keeps harmonics low and efficiency high, while the rugged IP67 enclosure eliminates the need for an extra protective box. The wide input range handles unstable mains or battery backup systems, and convection cooling means silent, maintenance-free operation for years.

Ideal use cases

• Outdoor LED floodlights and street luminaires
• Architectural and landscape lighting
• Industrial machinery and control panels
• Signage and display backlighting
• Any 36 VDC load requiring weatherproof power

Good to know

The OWA-90E-36 is part of MEAN WELL's OWA series, known for high reliability and long service life (MTBF >100k hours). It includes a 3-year warranty and is fully compliant with major international safety standards.
