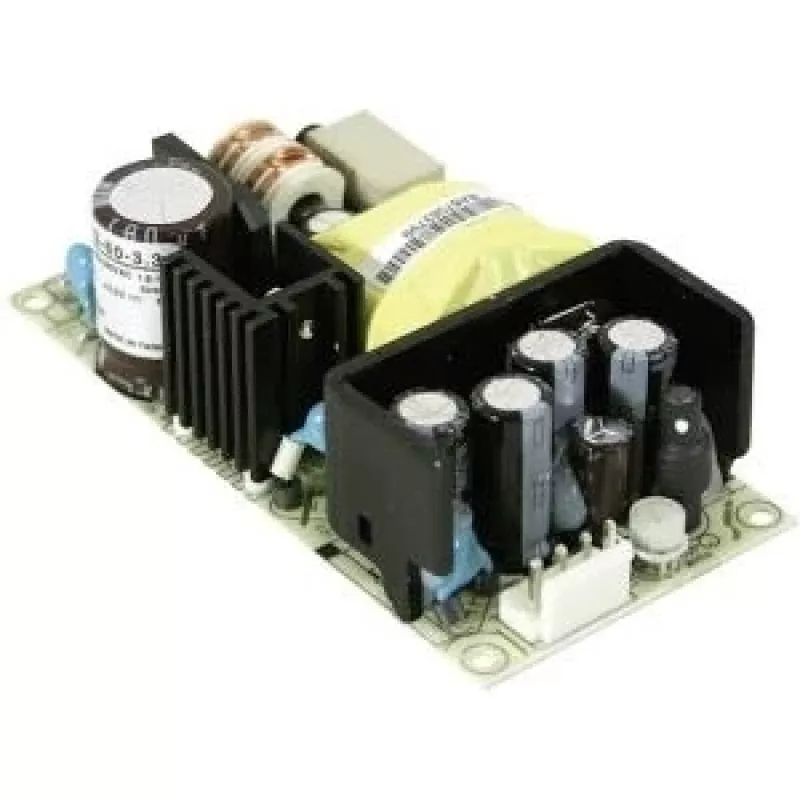

MEAN WELL RPS-60-12 60W 12V 5A Open-Frame medicínsky napájací zdroj

This open frame AC/DC power supply delivers a reliable 12V DC output with 5A current, providing 60W continuous power (72W peak for 10 seconds) for demanding medical and industrial applications. Its high efficiency of 88% and convection cooling ensure quiet, dependable operation without the need for a fan.

Advantages

Compliant with IEC/EN/ANSI/AAMI ES60601-1 medical safety standards with 2xMOPP isolation, it offers reinforced 4000VAC input-to-output isolation for enhanced patient and operator safety. The wide input voltage range of 80~264VAC accommodates global mains supplies, while a compact open frame design simplifies integration into space-constrained equipment. Built-in protections against short circuit, overload, over voltage, and over temperature safeguard both the supply and connected devices, contributing to an MTBF exceeding 1,000,000 hours.

Suitable for

• Medical devices requiring 2xMOPP isolation, such as patient monitors and diagnostic equipment
• Industrial automation systems and control panels
• Test and measurement instruments
• Telecommunication and networking equipment
• Any application needing a reliable 12V DC power source with low standby power (<0.75W no-load)

Key specifications

• Output: 12V DC, 5A, 60W continuous (72W peak for 10s)
• Input: 80~264VAC (113~370VDC)
• Efficiency: 88%
• Isolation: 4000VAC input-output, 2xMOPP
• Form factor: Open frame, free air convection cooling
• Operating temperature: -30°C to +70°C
• Protections: Short circuit, overload, over voltage, over temperature
• Ripple & noise: 100mVp-p
• Line regulation: ±0.5%
• Load regulation: ±0.5%
• MTBF: >1,000,000 hours
• No-load power consumption: <0.75W
• EMC: EN55011, EN55032 Class B; harmonic current EN61000-3-2 Class A

Recommendations

For medical or industrial systems requiring a safe, efficient, and compact 12V power solution, the MEAN WELL RPS-60-12 offers proven reliability and compliance. Its robust design and comprehensive protections make it an excellent choice for both new designs and replacements.
