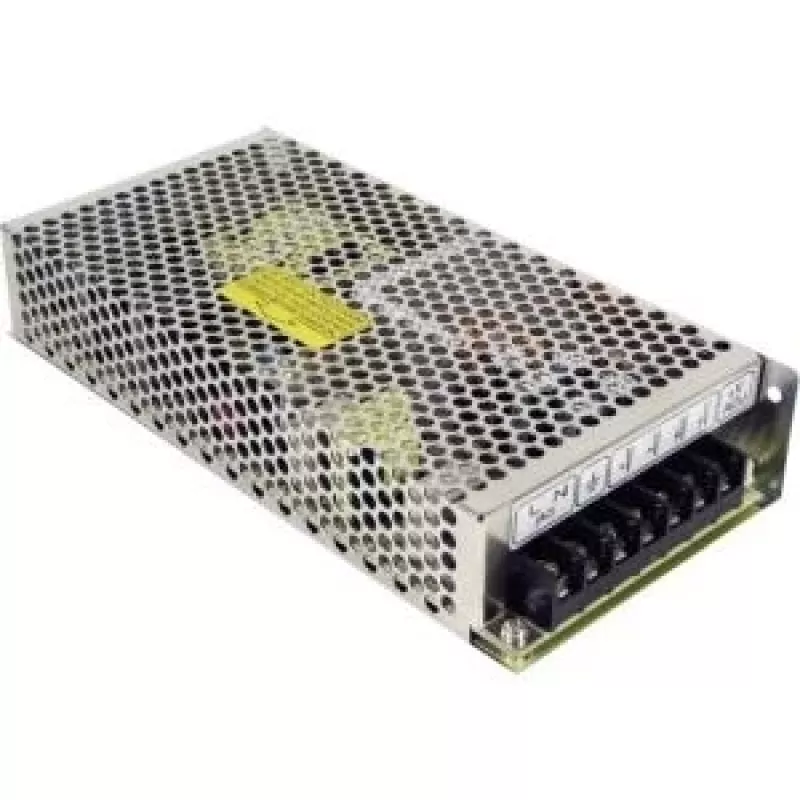

MEAN WELL RS-150-15 150W 15V 10A uzavretý spínaný napájací zdroj s PFC

The RS-150-15 stands out in the 150-watt class by delivering a full 10 amps at 15 volts in a compact enclosed chassis, with a wide-range 88–264 VAC input that eliminates the need for a voltage selector switch. Unlike many competitors that derate above 40°C, this unit maintains full output up to 50°C and only derates to 60% at 70°C, making it a dependable backbone for industrial automation, LED signage, and test fixtures.

Highlights

• 150 W continuous output with 15 VDC / 10 A single rail
• Universal AC input: 88–264 VAC (47–63 Hz) or 125–370 VDC
• High efficiency up to 84% and low no-load consumption
• Built-in protections: overload, overvoltage, and short circuit
• Free air convection cooling – no fan, no noise, no maintenance
• Compact metal case with chassis-mount screw terminals

In daily use

Installation is straightforward: the RS-150-15 mounts directly to a panel or DIN rail adapter with four screws, and the clearly marked terminal block accepts ring or fork lugs. The output voltage can be trimmed from 13.5 to 18 V via the front-panel potentiometer, allowing you to compensate for cable drops or fine-tune for sensitive loads. Ripple and noise are held to 150 mVp-p, ensuring clean power for analog circuits and motor drivers. The hold-up time of 28 ms at full load (230 VAC) keeps your system alive through brief mains interruptions, while the 3 kVAC input-to-output isolation provides a solid safety barrier.

Full specifications

• Output power: 150 W
• Output voltage: 15 VDC (adjustable 13.5–18 V)
• Output current: 10 A
• Input voltage: 88–264 VAC / 125–370 VDC
• Input frequency: 47–63 Hz
• Efficiency: 84%
• Hold-up time: 28 ms (230 VAC, full load)
• Ripple & noise: 150 mVp-p
• Protections: overload, overvoltage, short circuit
• Operating temperature: -25 to +70 °C (derating above 50 °C)
• Cooling: free air convection
• Isolation voltage: 3 kVAC (input to output)
• Safety standards: UL60950-1, TUV EN60950-1, CB, CE
• Mounting: chassis mount

Final note

With its rugged metal enclosure, wide operating temperature range, and full international safety approvals, the RS-150-15 is a reliable power source for OEM equipment, industrial controls, and LED lighting systems that demand stable 15 V power without the complexity of a fan-cooled supply.
