Mediálny konvertor TP-Link MC110CS 10/100Mbps, 1000 Mbit/s, SC konektor

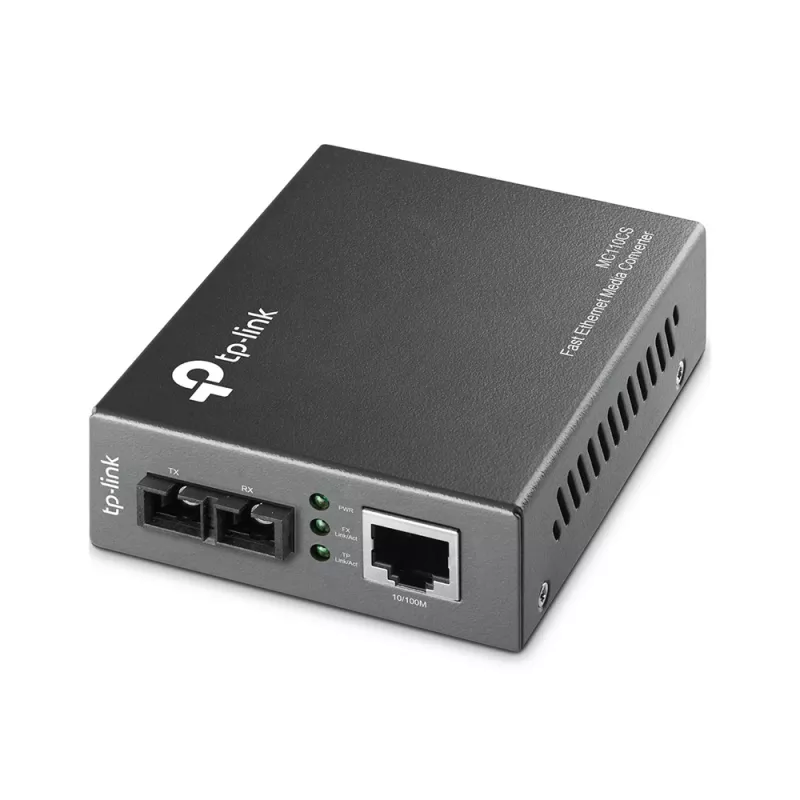

The TP-Link MC110CS is a single-mode media converter that converts between 100BASE-FX fiber and 100BASE-TX copper connections. Compliant with IEEE 802.3u standards and equipped with an SC-type fiber connector, the unit operates at a wavelength of 1310 nm and supports long-distance transmission over single-mode fiber up to 20 kilometers. The device can be used as a standalone converter or mounted in a compatible 19" TP-Link chassis, and includes front-panel LEDs for status indication.

Advantages

The MC110CS provides wire-speed forwarding for 100 Mbps Ethernet over fiber using LX longwave laser optics and supports Auto MDI/MDI-X and auto-negotiation on the TX (RJ-45) port. Its single SC fiber port and one RJ-45 copper port make installation straightforward, while LEDs for power and link/speed simplify monitoring. Low power consumption and the option to operate standalone or in a TP-Link chassis add deployment flexibility.

Suitable for

• Extending 100 Mbps Ethernet networks over single-mode fiber links up to 20 km
• Connecting fiber backbone to copper switches or routers
• Small installations requiring a standalone media converter or integration into a 19" chassis

Key specifications

• Standards: IEEE 802.3u 10/100Base-TX, 100Base-FX
• Fiber type: Single-mode
• Fiber connector: SC
• Wavelength: 1310 nm
• Maximum fiber distance: 20,000 m
• Ports: 1 x RJ-45 (TX), 1 x SC fiber
• Supported speed: 10/100 Mbps (wire-speed forwarding for 100 Mbps)
• Power consumption: approx. 1.52 W
• Color: Black

How to use

Connect the single-mode SC fiber cable to the SC port and the copper Ethernet cable to the RJ-45 port. If used standalone, power the unit from its external adapter (follow manufacturer power specifications). If installed in a TP-Link 19" chassis, insert the module into the chassis slot and provide chassis power. The device negotiates duplex and cross-over (Auto MDI/MDI-X) on the TX port automatically; monitor the front-panel LEDs to confirm power and link status.

Recommendations

Use single-mode fiber with SC connectors and ensure correct fiber polarity when connecting links. For reliable long-distance links up to 20 km, use compliant single-mode fiber and clean connectors before mating. Place the converter in a ventilated location and avoid exposure to excessive dust or moisture.
