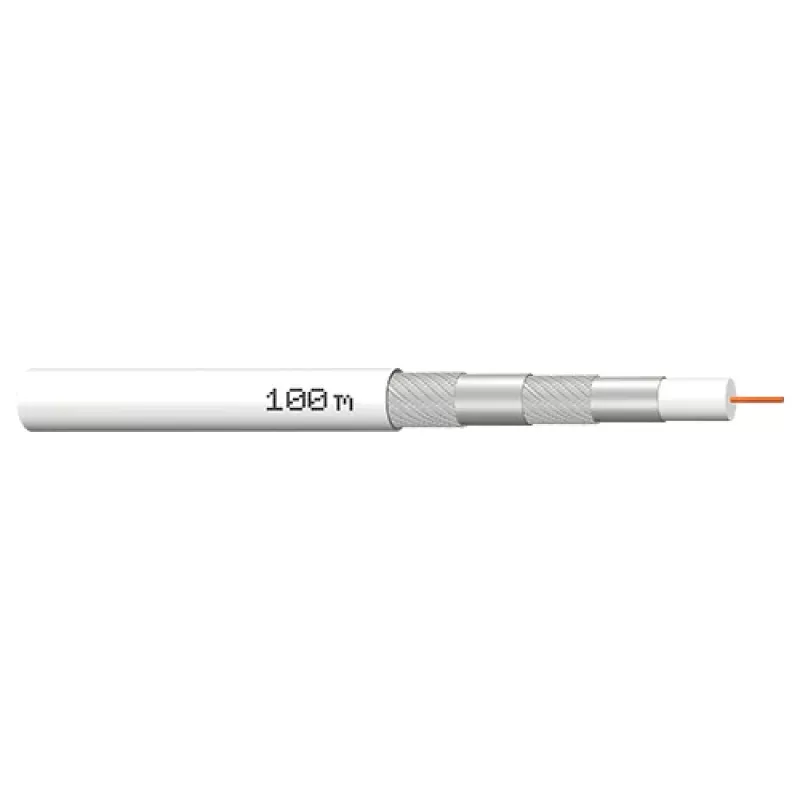

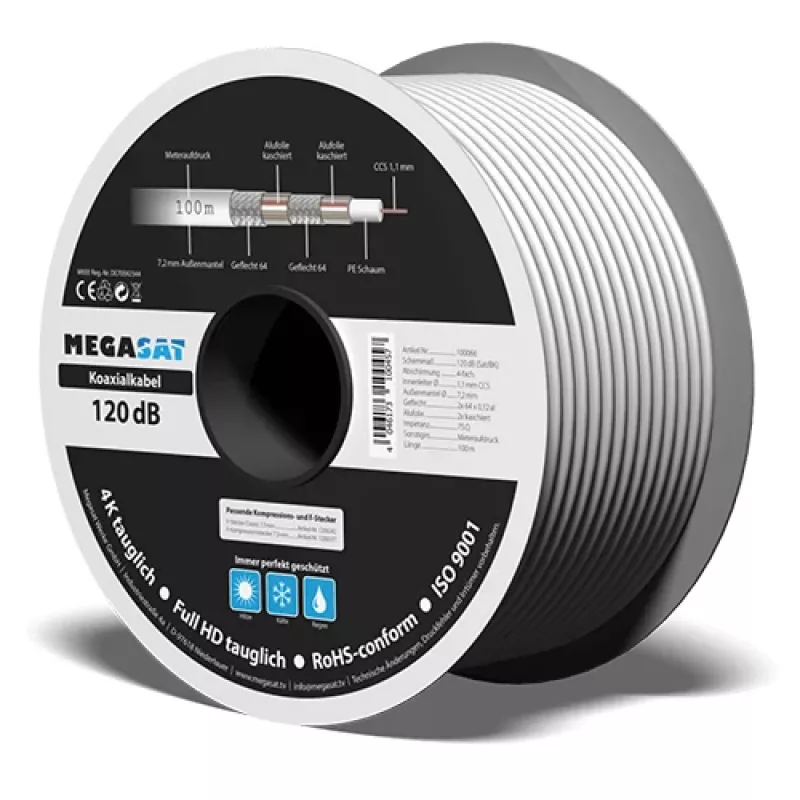

Megasat koaxiálny kábel 100 m, štvorvrstvové tienenie, 120 dB, 75 Ohm, F-typ Ready 100066

Long satellite and cable TV runs often suffer from signal loss and electromagnetic interference, degrading picture quality. This 100-meter coaxial cable solves that with four-layer shielding and a 120 dB shielding effectiveness, preserving signal integrity over extended distances.

Who is it for

Installers and technicians setting up satellite dishes, DVB-T antennas, or cable TV networks where a reliable, low-loss cable is essential. Ideal for both indoor and outdoor runs.

Main features

• 100 m length for extensive installations without splicing.
• Quad-shielded construction (four layers) for superior interference rejection.
• 120 dB shielding effectiveness ensures clean signal transmission.
• 75 Ohm impedance matches standard video and RF equipment.
• 1.1 mm inner conductor and 4.8 mm dielectric for low attenuation.

Specifications

• Cable type: Coaxial
• Length: 100 m
• Inner conductor diameter: 1.1 mm
• Dielectric diameter: 4.8 mm
• Outer conductor diameter: 6 mm
• Overall outer diameter: 7.2 mm
• Shielding: Quad (4-layer)
• Shielding effectiveness: 120 dB
• Impedance: 75 Ohm
• Connector: None (bare cable)

Tips

Pair with high-quality F-type compression connectors for weatherproof outdoor connections. Use cable clips to secure the cable and avoid sharp bends that can damage the shielding.
