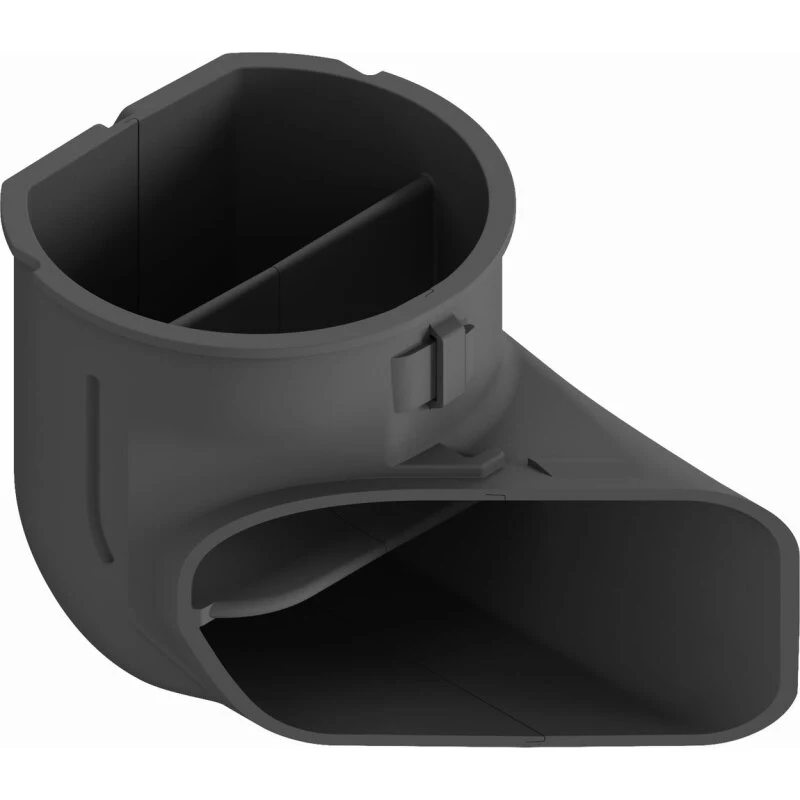

MELTEM S-AS-90 adaptér koleno 90 stupňov (300502)

When installing decentralized ventilation units, connecting ductwork at a right angle can be a challenge. The MELTEM S-AS-90 Adapterstutzen gewinkelt 90 Grad solves this by providing a 90-degree angled connection for round ducts with a nominal diameter of 90 mm. Made from white ABS plastic, it is designed for use with Meltem V-WRG, V-WRG-E, and V-WRG-S ventilation units, ensuring a secure push-fit installation for supply or exhaust air systems.

Who is it for

This adapter is intended for HVAC installers and technicians working with Meltem decentralized ventilation systems. It is suitable for both indoor and outdoor applications, offering flexibility in wall or ceiling mounting depending on the unit configuration.

Main features

• 90-degree angled duct adapter for round ducts
• Nominal duct diameter: 90 mm (DN 90)
• Material: ABS plastic, white
• Push-fit / plug-in installation method
• UV resistant and suitable for temperatures up to 60°C
• Flame retardant according to fire protection class B2
• Optimized for low pressure loss in ventilation systems

Specifications

• Product Type: Duct Adapter
• Adapter Angle: 90 Degrees
• Connection Type: Round Duct
• Nominal Duct Diameter: 90 mm
• Material: ABS Plastic
• Color: White
• Compatibility: Meltem V-WRG, V-WRG-E, V-WRG-S Ventilation Units
• Application: Ventilation Systems (Supply/Exhaust Air)
• Installation Method: Push-fit / Plug-in
• UV Resistance: Yes
• Temperature Resistance: Up to 60°C
• Fire Protection Class: B2 (Flame Retardant)
• System Type: Decentralized Ventilation

Tips

Ensure the duct and adapter are clean and free of debris before push-fitting to maintain a secure connection and optimal airflow.
