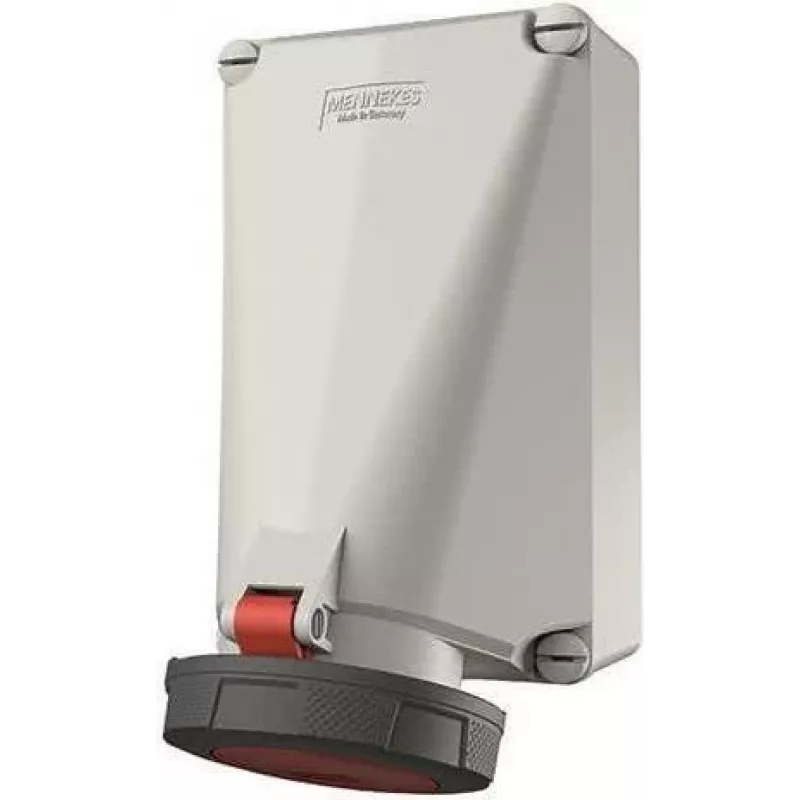

MENNEKES 143 CEE nástenná zásuvka 125A 5-pólová 400V 6h IP67 červená

Industrial and outdoor electrical installations demand a power connection that can handle high current, resist moisture and dust, and stay reliable for years. The MENNEKES 143 CEE wall-mounted socket delivers exactly that: a robust 125 A, 5-pole (3P+N+PE) outlet rated for 400 V and built to IP67 protection, making it suitable for the toughest environments.

Who is it for

This socket is intended for electricians, facility managers, and industrial users who need a permanent, high-capacity power point for heavy machinery, temporary power distribution, or outdoor equipment. It is commonly installed in workshops, construction sites, marinas, and agricultural facilities.

Main features

• Rated current: 125 A
• Rated voltage: 400 V
• 5 poles (3P+N+PE) with clock position 6h
• IP67 protection against dust and temporary immersion
• Housing made of polyamide (PA6), red RAL 3000
• Screw terminals for flexible cables 16–50 mm² or rigid cables 16–70 mm²
• Wall/surface mounting with M63 cable gland

Specifications

• Frequency: 50/60 Hz
• Contact material: nickel-plated brass
• Temperature range: -25°C to +40°C
• Standards: IEC 60309-1, IEC 60309-2

Tips

Ensure the socket is installed by a qualified electrician and that the cable gland is properly sealed to maintain the IP67 rating. For outdoor use, mount it in a location protected from direct sunlight to extend the life of the polyamide housing.
