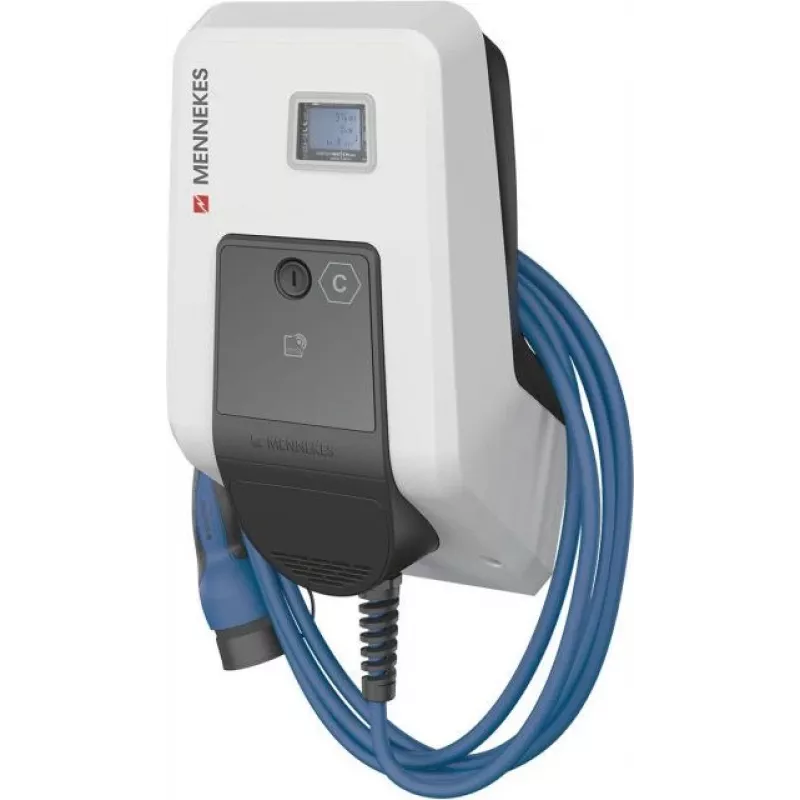

MENNEKES AMTRON Professional 22C2 wallbox nabíjacia stanica 22 kW Type 2 konektor samica RFID Ethernet IP54 1384202

Wallbox charging station delivering 22 kW of three-phase AC power for fast, reliable EV charging. The integrated MID-compliant energy meter and OCPP 1.6 J communication via Ethernet make it ideal for commercial and fleet environments where billing accuracy and remote management matter.

Advantages

Built to withstand harsh conditions with an IP54-rated, UV-resistant housing and IK10 impact resistance. The integrated RFID reader provides secure access control, while local load management prevents overloads. DC fault current detection (≥6 mA) ensures safety without an external RCD type B.

Suitable for

• Commercial parking lots and office buildings
• Fleet depots and employee charging
• Residential complexes with shared parking
• Locations requiring billing-grade energy metering

Key specifications

• Charging power: 22 kW (Mode 3, IEC 61851-1)
• Charging current: 32 A per phase, 400 V, 3-phase
• Connector: Type 2 socket with locking actuator
• Communication: OCPP 1.6 J via Ethernet (LAN)
• Integrated MID-compliant energy meter
• Access control: RFID reader
• Protection: IP54, IK10, DC fault current detection ≥6 mA
• Operating temperature: -30 °C to +50 °C
• Housing: UV-resistant PC/ABS blend
• Status indicator: LED display

Recommendations

For professional installations where uptime, safety, and billing accuracy are non-negotiable, the AMTRON Professional 22C2 is a robust, future-proof choice. Pair with a compatible backend via OCPP for centralized monitoring and load management.
