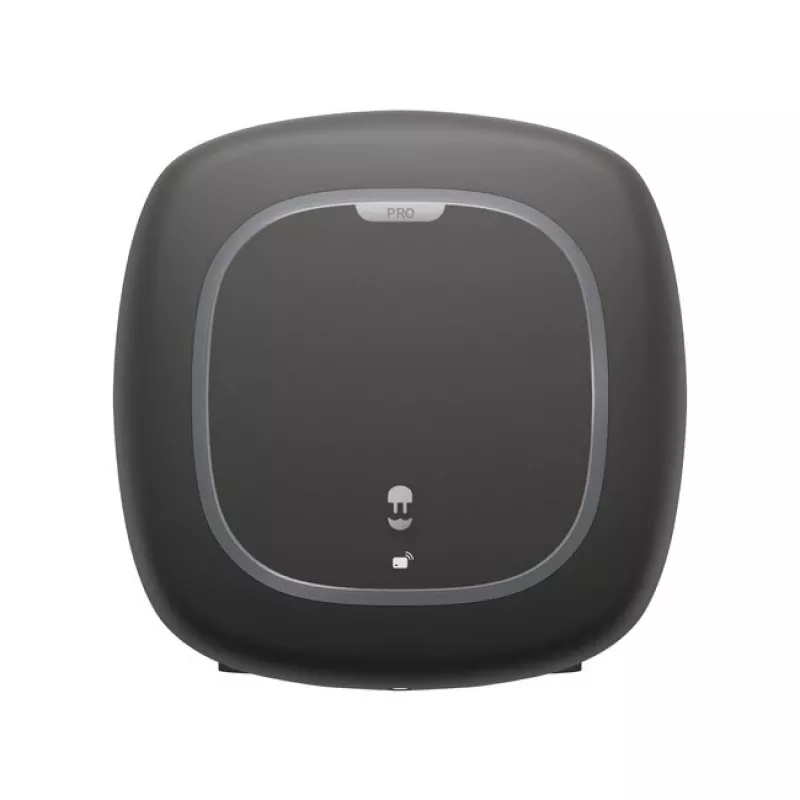

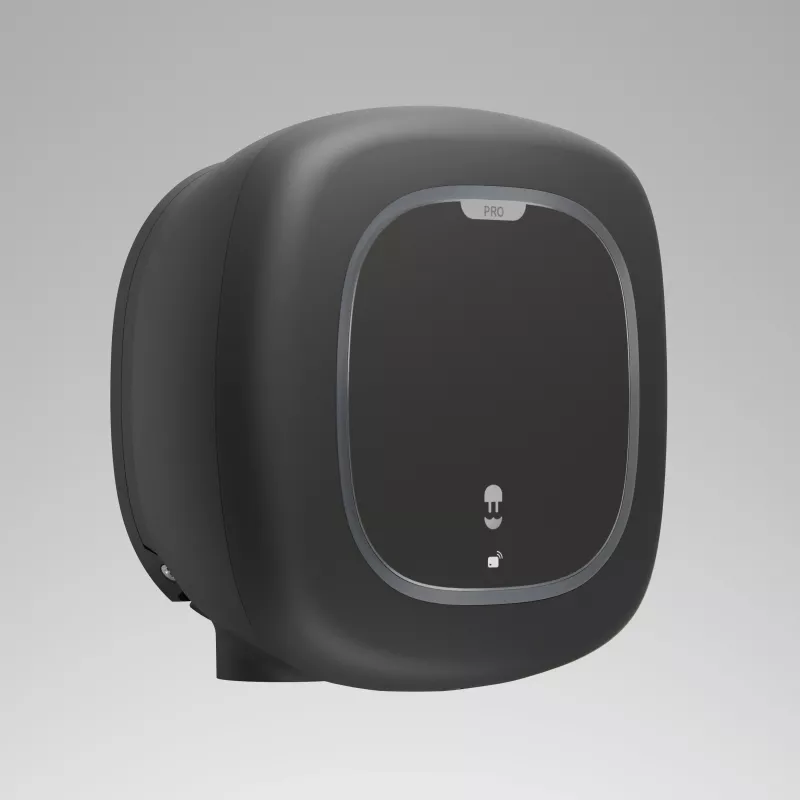

Wallbox nabíjačka pre elektrické vozidlá | Pulsar Pro | 22 kW | 5 m | čierna

The Wallbox Pulsar Pro is a powerful 22 kW AC electric vehicle charger, delivering fast and reliable charging for residential and commercial use. With an integrated Type 2 cable and a sleek black finish, it combines performance with durability, offering a smart charging solution that adapts to your needs.

Advantages

This EV charger supports three-phase power at 22 kW, significantly reducing charging times for compatible electric vehicles. Equipped with Wi-Fi and Bluetooth connectivity, the Pulsar Pro enables control via the MyWallbox app, allowing you to monitor and schedule charging sessions with ease. Its robust IP55 and IK10 ratings ensure protection against dust, water, and impact, making it suitable for indoor and outdoor installations. The integrated energy meter and dynamic power sharing functionality optimise energy usage, while the optional RFID authentication adds an extra layer of security.

Suitable for

• Electric vehicles with a Type 2 charging socket (e.g., Tesla, VW, BMW, Audi, etc.)
• Wall-mounted installations in garages, carports, and commercial parking areas
• Residential and business environments requiring high-power AC charging

Key specifications

• Charging power: 22 kW AC
• Connector: Type 2 with integrated 5 m cable
• Input voltage: 400 V AC (3-phase)
• Input current: 32 A
• Frequency: 50/60 Hz
• Connectivity: Wi-Fi and Bluetooth
• Authentication: MyWallbox app, optional RFID
• Protection rating: IP55, IK10
• Operating temperature: -25°C to 40°C
• Communication protocol: OCPP 1.6J
• Load management: Power Boost (optional) and Dynamic Power Sharing
• Energy meter: Integrated
• Residual current detection: DC 6 mA
• Housing material: PC/ABS
• Colour: Black
• Mounting: Wall-mounted

Recommendations

To get the most out of your Wallbox Pulsar Pro, ensure a dedicated 3-phase circuit with at least 32 A capacity is available. For enhanced security, consider adding the optional RFID reader. Always consult a certified electrician for installation to ensure compliance with local regulations.
