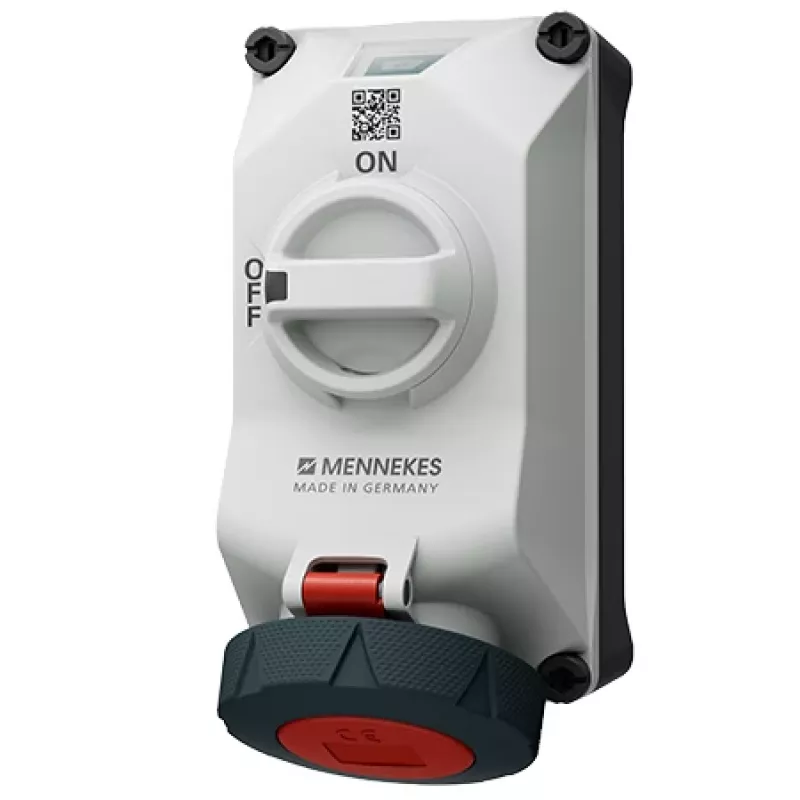

MENNEKES DUOi 32A 5P 6h 400V IP69 nástenná zásuvka 5614506G

The MENNEKES DUOi 5614506G stands out as a wall-mounted receptacle engineered for demanding industrial environments where high-pressure washdowns and dust ingress are constant threats. Its IP69 rating ensures protection against close-range high-pressure, high-temperature water jets, making it a reliable choice for food processing, chemical plants, and heavy outdoor installations.

Highlights

• Rated for 32 A at 400 V, 50/60 Hz, with 5-pole configuration (3P+N+PE) and 6h earth contact position.
• IP69 ingress protection for superior resistance to water and dust in harsh washdown conditions.
• Robust polyamide (PA6) housing with IK08 impact resistance and glow wire resistance up to 850 °C.
• Flexible cable entry options (rear, top, bottom) and screw terminals for secure, maintenance-friendly connections.
• Complies with IEC 60309-1 and IEC 60309-2 standards for industrial plugs and sockets.

In daily use

This receptacle is built to endure frequent connection cycles and aggressive cleaning procedures. The grey/black body blends into industrial settings while the screw terminals allow for straightforward wiring. Its operating temperature range from -25 °C to +40 °C ensures performance in both cold storage and hot process areas.

Full specifications

• Product Type: Wall-mounted Receptacle
• Brand Series: DUOi
• Current Rating: 32 A
• Voltage Rating: 400 V
• Frequency: 50/60 Hz
• Number of Poles: 5-pole (3P+N+PE)
• Earth Contact Position: 6h
• Ingress Protection: IP69
• Housing Material: Polyamide (PA6)
• Connection Technology: Screw terminals
• Mounting Type: Wall-mounted
• Standards Compliance: IEC 60309-1, IEC 60309-2
• Operating Temperature Range: -25 °C to +40 °C
• Impact Resistance: IK08
• Glow Wire Test: 850 °C
• Colour: Grey/Black
• Cable Entry: Flexible (rear, top, bottom)
• Application: Industrial, harsh environments

Final note

For installations where hygiene and durability are non-negotiable, the DUOi 5614506G delivers a sealed, robust power connection point that withstands the toughest conditions.
