MENNEKES PowerTOP Xtra 125A 5-pólový 1h IP67 priemyselný konektor samec 13259

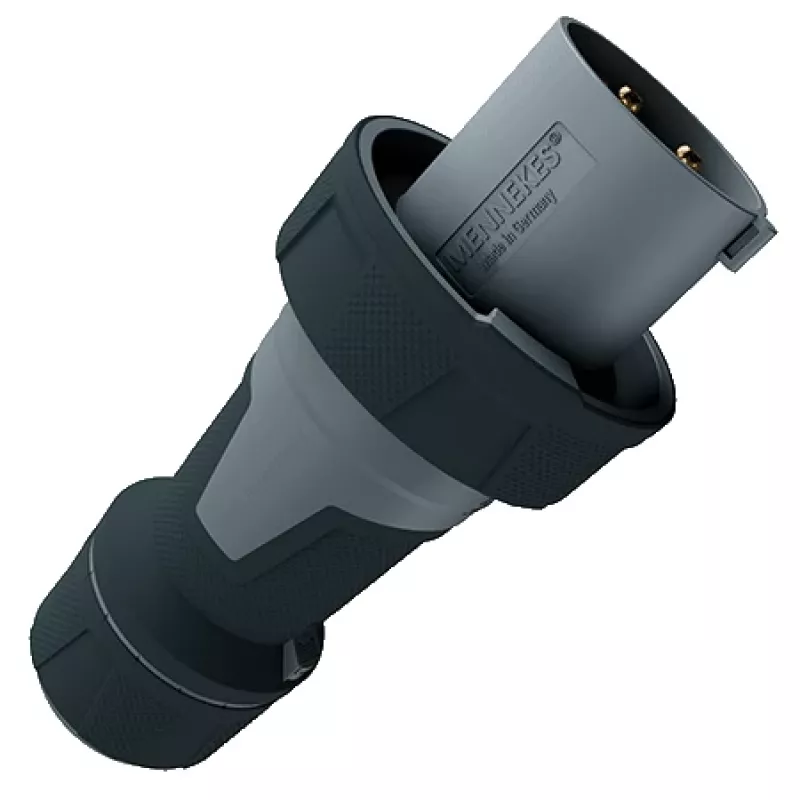

The MENNEKES PowerTOP Xtra 13259 is a heavy-duty industrial plug engineered for high-current 125 A applications where reliable power delivery and environmental protection are non-negotiable. Unlike standard CEE plugs, its 5-pole configuration with 1h earth contact position and IP67 sealing makes it suitable for demanding industrial environments, construction sites, and outdoor installations exposed to dust and temporary immersion.

Highlights

• 125 A current rating for high-power equipment
• 5-pole (3P+N+PE) with 1h earth contact position
• IP67 ingress protection against dust and water
• Screw terminals for secure, vibration-resistant connections
• Robust polyamide housing in red

In daily use

The PowerTOP Xtra 13259 connects to compatible 125 A CEE sockets, providing a safe and durable power interface for industrial machinery, generators, and distribution panels. Its screw terminals accommodate large conductor cross-sections, while the integrated cable gland with strain relief supports cable diameters from 29 to 68 mm, ensuring a secure fit in mobile or fixed installations.

Full specifications

• Rated voltage: 380–415 V AC
• Frequency: 50/60 Hz
• Housing material: Polyamide (PA6)
• Contact material: Brass, nickel-plated
• Operating temperature: -25 °C to +40 °C
• Impact resistance: IK08
• Glow wire test: 850 °C
• Standards: IEC 60309-1, IEC 60309-2

Final note

For high-current industrial power connections, the MENNEKES PowerTOP Xtra 13259 delivers the performance and durability expected from a leading manufacturer.
