MENNEKES Xtra R CEE konektor samec 16A 5-pólový 1h 500V IP54 skrutkové svorky 13597

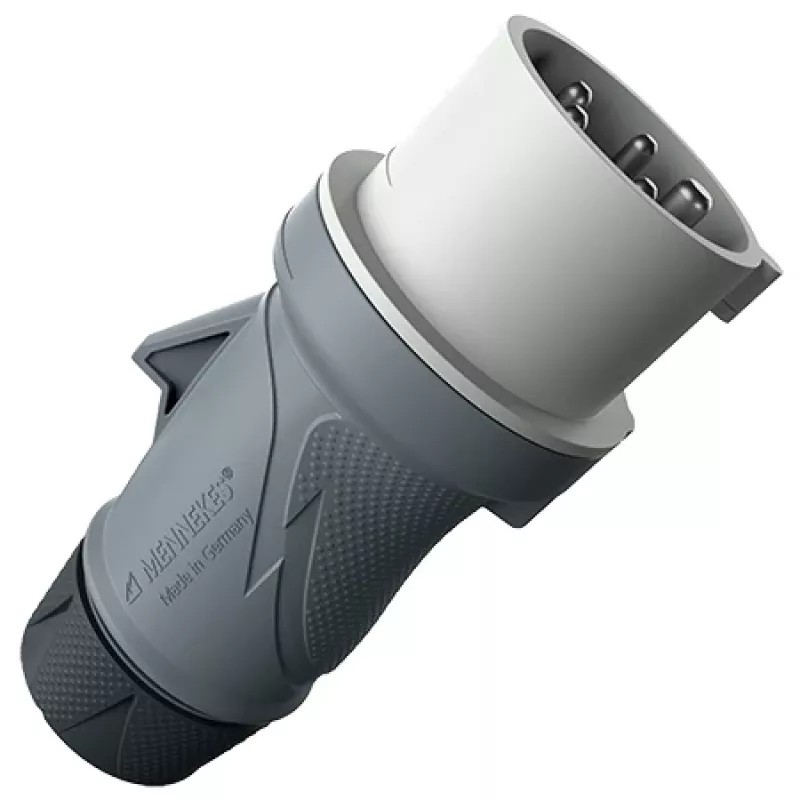

The Xtra R plug from MENNEKES is built for demanding industrial power connections where a secure, weather-resistant link is non-negotiable. Its 5-pole configuration (3P+N+PE) with a 1h earth contact position delivers reliable three-phase power for heavy-duty equipment, while the IP54 rating keeps dust and splashing water out. Unlike standard plugs, the Xtra R uses a robust polyamide housing and nickel-plated brass contacts to withstand daily mechanical stress and frequent mating cycles.

Highlights

• 16 A rated current at 500 V for high-power industrial applications
• 5-pole (3P+N+PE) with 1h earth contact position per IEC 60309
• IP54 ingress protection against dust and water splashes
• Screw terminals with cable gland and strain relief for secure wiring
• Durable polyamide housing in grey/black

In daily use

Connect the Xtra R plug to a suitable CEE socket and lock it in place for a vibration-resistant connection. The screw terminals accept cables from 6 to 13 mm in diameter, and the strain relief prevents accidental pull-out. Suitable for portable power distribution in workshops, construction sites, and outdoor events where a reliable 16 A three-phase supply is required.

Full specifications

• Rated current: 16 A
• Rated voltage: 500 V
• Frequency: 50/60 Hz
• Number of poles: 5 (3P+N+PE)
• Earth contact position: 1h
• Ingress protection: IP54
• Connection technology: Screw terminals
• Housing material: Polyamide
• Cable diameter range: 6 - 13 mm
• Operating temperature: -25°C to +40°C
• Contact material: Brass, nickel-plated
• Mounting type: Portable plug

Final note

MENNEKES Xtra R plugs are engineered for longevity in harsh environments, making them a trusted choice for professionals who cannot afford downtime.
