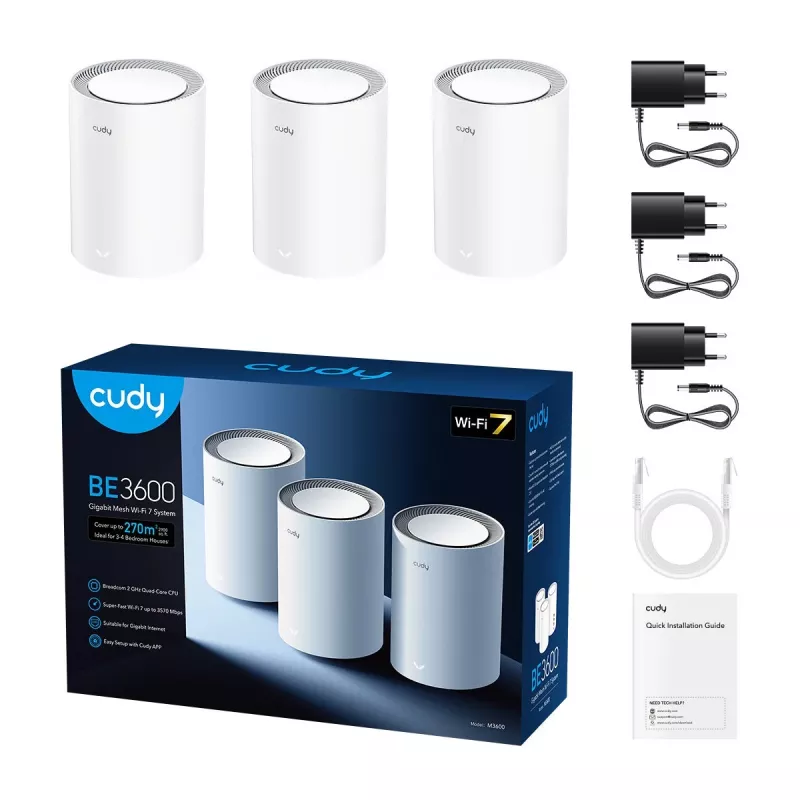

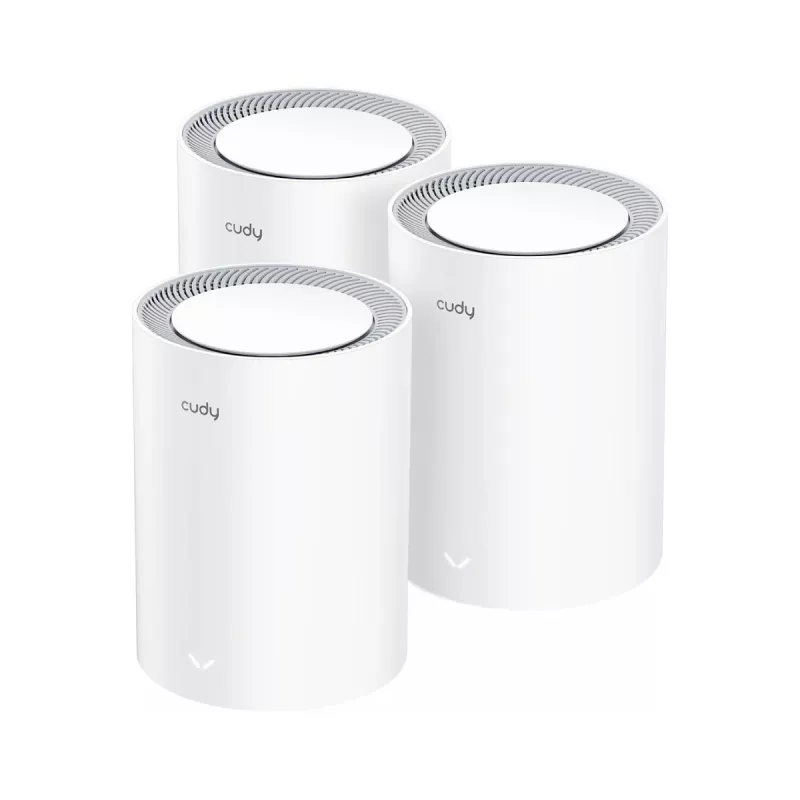

Mesh systém Cudy M3600 Wi‑Fi 7 dual-band (2,4/5 GHz), balenie 3 ks, 2882/688 Mbit/s, 3x LAN, interné antény

The Cudy M3600 Dual-band mesh system is a Wi‑Fi 7 (802.11be) router kit designed for large homes with Gigabit Internet. It supports simultaneous operation on 2.4 GHz and 5 GHz bands, offers an aggregate throughput up to 3.6 Gbps and includes three Gigabit Ethernet ports. The unit has internal antennas and comes in white, aiming to provide stable multi‑device connectivity throughout the living area.

Advantages

The mesh system supports the latest Wi‑Fi 7 standard for higher throughput and lower latency on compatible devices. With internal antennas and four antenna elements, it provides broad coverage while keeping a compact appearance. Three Gigabit LAN ports and an Ethernet WAN option allow wired connections for devices requiring consistent bandwidth. The integrated hardware (2 GHz processor, 512 MB RAM, 128 MB flash) supports smooth network operation and mesh management.

Suitable for

• Large homes and multi‑room coverage with Gigabit Internet
• Multiple simultaneous streaming and online gaming devices
• Devices that benefit from wired Gigabit connections (TV, desktop, NAS)
• Users upgrading to Wi‑Fi 7-capable devices

Key specifications

• Wi‑Fi standard: Wi‑Fi 7 (802.11be)
• Bands: Dual‑band 2.4 GHz / 5 GHz
• Maximum WLAN data rate: 2882 Mbit/s
• Ethernet LAN ports: 3 (Gigabit)
• Antenna: Internal, 4 elements
• Processor: 2 GHz
• Memory: 512 MB RAM, 128 MB flash
• Colour: White

How to use

Place the primary unit near your modem and connect it via the Ethernet WAN port. Position additional mesh nodes around the home to ensure overlapping coverage; keep nodes in open areas away from large metal objects and microwave ovens for best signal propagation. Use the Cudy setup app or web interface to configure network name (SSID), password and mesh settings, and to perform firmware updates. For devices that require maximum stability, connect them to the router’s Gigabit LAN ports.

Recommendations

For optimal performance, place mesh units so that each node is within good signal range of at least one other node, avoid placing units in enclosed cabinets, and update firmware regularly. Use wired Gigabit connections for bandwidth‑critical devices and enable QoS or device prioritization if available to manage traffic for gaming or streaming.
