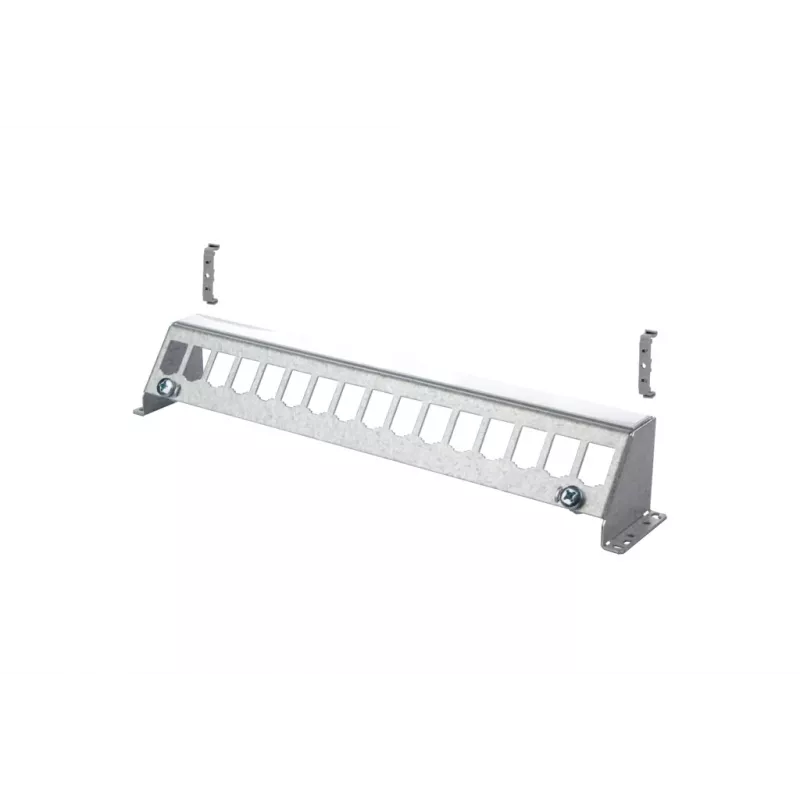

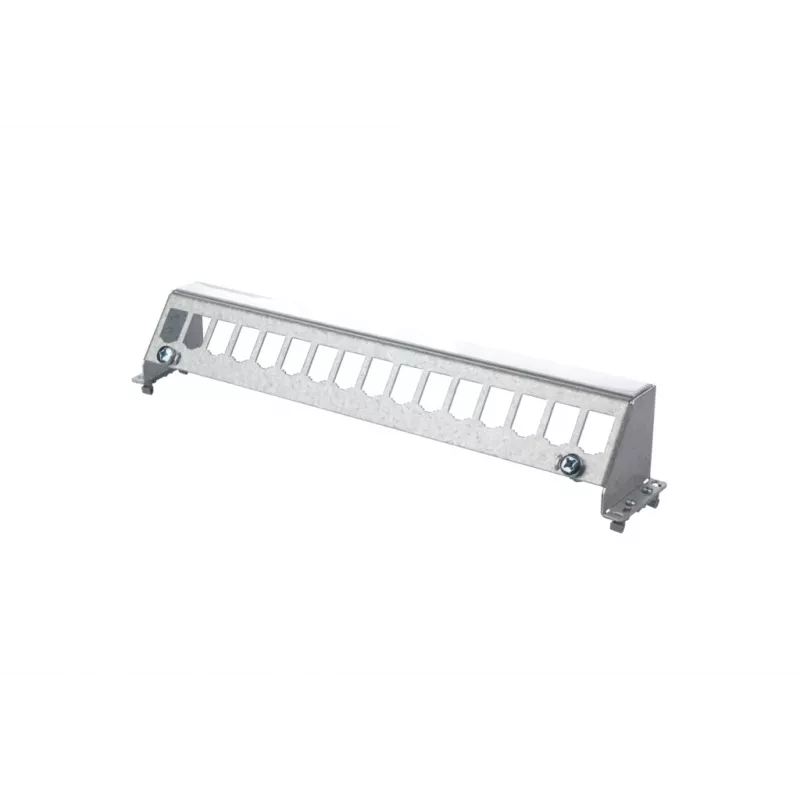

METZ BTR 130927-1600-E SmartConnect patch panel 16 port MC moduly Cat.6A tienený

The METZ BTR 130927-1600-E SmartConnect patch panel module is a high-performance, shielded Cat.6A module designed for use with BTR Netcom SmartConnect patch panels. It offers 16 RJ45 ports with LSA-Plus IDC termination, supporting data rates up to 10 Gigabit Ethernet. The die-cast zinc housing ensures durability and excellent EMI protection.

Advantages

This module provides reliable, high-speed connectivity for demanding network environments. Its shielded design minimizes crosstalk and interference, while the gold-plated contacts ensure long-lasting performance. The tool-assisted LSA termination allows for quick and secure installation.

Suitable for

• Data centers and server rooms requiring high-density patching
• Enterprise networks needing Cat.6A performance
• PoE applications including IEEE 802.3af/at/bt (up to 4PPoE)
• Structured cabling systems in commercial buildings

Key specifications

• Product Type: Network Patch Panel Module
• Number of Ports: 16
• Connector Type: RJ45
• Transmission Category: Cat.6A
• Shielding: Shielded (FTP/STP)
• Termination Type: LSA-Plus (IDC)
• Wiring Standard: TIA/EIA 568A/B
• Housing Material: Die-cast zinc
• Compatibility: BTR Netcom SmartConnect Patch Panels
• PoE Support: Yes (IEEE 802.3af/at/bt, up to 4PPoE)
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Contact Plating: Gold-plated contacts
• Mating Cycles: >750
• Operating Temperature Range: -40°C to +70°C
• Installation Method: Tool-assisted (LSA punch-down tool required)
• Module Design: Compact, modular cassette
• Data Rate Support: Up to 10 Gigabit Ethernet (10GBASE-T)
• Return Loss: Meets Cat.6A requirements
• Crosstalk: Meets Cat.6A requirements
• Flammability Rating: UL 94 V-0

Recommendations

For optimal performance, use with BTR Netcom SmartConnect patch panels and Cat.6A shielded cabling. A suitable LSA punch-down tool is required for termination.
