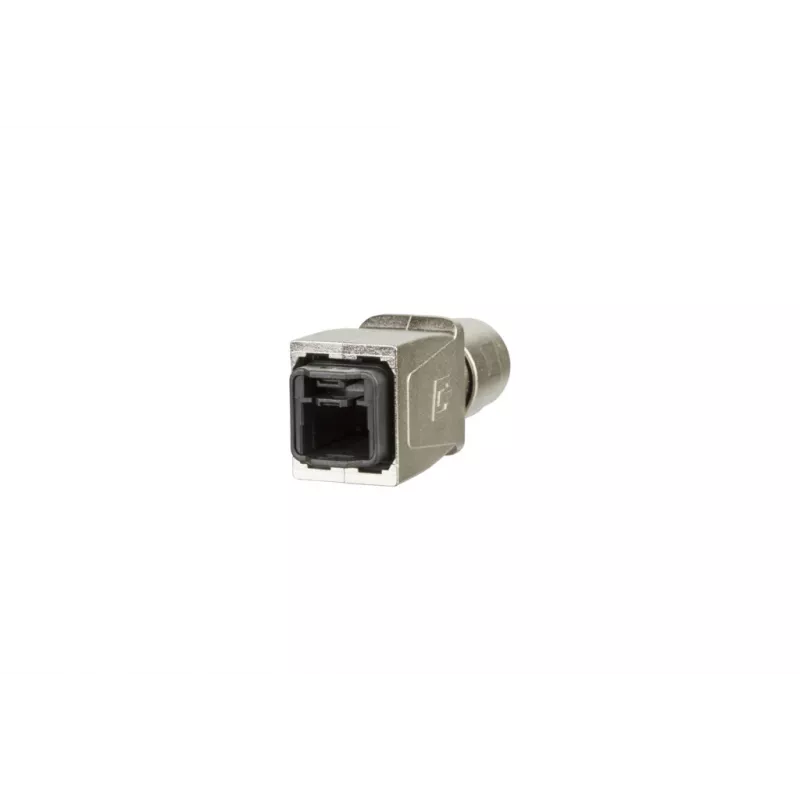

METZ BTR 14010850C0ME priemyselné IP67 V14 RJ45 konektorové puzdro, Push-Pull, prázdne

Industrial RJ45 plug housing engineered for harsh environments, delivering IP67 protection and a secure push-pull locking mechanism. This empty housing accepts Cat.6A RJ45 inserts, enabling field-installable, robust Ethernet connections in demanding industrial settings.

Advantages

Built to withstand dust, temporary immersion, vibration, and chemicals, the METZ BTR housing ensures reliable data transmission even in extreme conditions. Its push-pull design allows quick and secure mating without tools, reducing installation time and preventing accidental disconnection. The high-grade plastic construction meets UL94 V-0 flammability standards, adding an extra layer of safety.

Suitable for

• Industrial Ethernet and data networks
• Factory automation and machinery
• Outdoor or washdown environments requiring IP67 sealing
• Field assembly with shielded or unshielded RJ45 inserts

Key specifications

• Protection rating: IP67 (dust-tight, protected against temporary immersion)
• Locking mechanism: Push-Pull
• Series/Standard: V14 (IEC 61076-3-106)
• Compatibility: RJ45 Cat.6A inserts (empty housing)
• Mounting type: Cable mount, field-installable
• Housing material: High-grade industrial plastic, black
• Operating temperature range: -40°C to +70°C
• Flammability rating: UL94 V-0
• Cable diameter range: 6.5 mm - 9.5 mm
• Number of ports: 1
• Connector gender: Plug (male) housing
• Shielding support: Shielded and unshielded inserts

Recommendations

For optimal performance, pair this housing with METZ Cat.6A RJ45 inserts and use cables within the specified diameter range. Ensure proper sealing and strain relief for long-term reliability in industrial applications.
