METZ BTR 15090079-I OpDAT Q-LC MM keramická OM4 Erika fialová Quad LC spojka

With a typical insertion loss under 0.2 dB and a return loss exceeding 30 dB, this METZ OpDAT Q-LC quad adapter delivers exceptional signal integrity for high-speed multimode networks. The OM4 fiber compatibility supports 40/100 Gigabit Ethernet links up to 150 meters, making it a future-proof choice for data centers, enterprise LANs, and storage area networks.

Overview

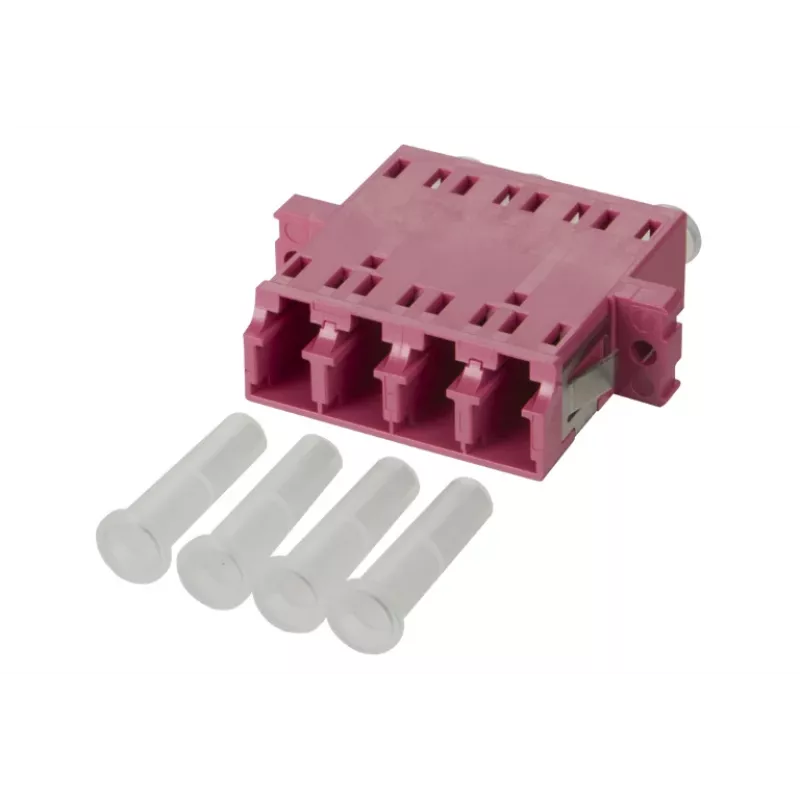

The METZ BTR 15090079-I is a panel-mount, snap-in fiber optic coupler featuring four LC duplex connections in a single compact housing. Both sides accept LC connectors, and the precision ceramic ferrules and sleeves ensure low loss and high durability. The adapter is color-coded in Erika Violet (RAL 4003) for instant identification of OM4 multimode infrastructure, in line with industry standards. Dust caps are included to protect the ferrule end faces when ports are not in use.

What stands out

• Quad LC design: four ports in one unit, maximizing density in patch panels and faceplates.
• Ceramic alignment sleeves: superior wear resistance and consistent performance over 500+ mating cycles.
• OM4 optimized: supports laser-optimized multimode fiber for 10G, 40G, and 100G applications.
• Erika Violet housing: quick visual identification and compliance with TIA-598 color coding.
• Flame-retardant plastic: UL 94 V-0 rating for enhanced safety in structured cabling.

Technical details

• Connector type (both sides): LC Quad (4 x LC duplex)
• Fiber type: Multimode (MM)
• Fiber category: OM4
• Ferrule material: Ceramic
• Sleeve material: Ceramic
• Insertion loss (typical): < 0.2 dB
• Return loss (typical): > 30 dB
• Durability: > 500 mating cycles
• Operating temperature: -20°C to +70°C
• Mounting type: Panel mount (snap-in)
• Standard compliance: IEC 61754-20, TIA/EIA-604-10
• Flammability rating: UL 94 V-0
• Dust caps: Included
• Orientation: Straight

Our verdict

For high-density OM4 fiber patching, this METZ quad LC coupler offers excellent optical performance, robust ceramic construction, and a convenient snap-in design. It's a reliable component for any modern fiber optic network.
