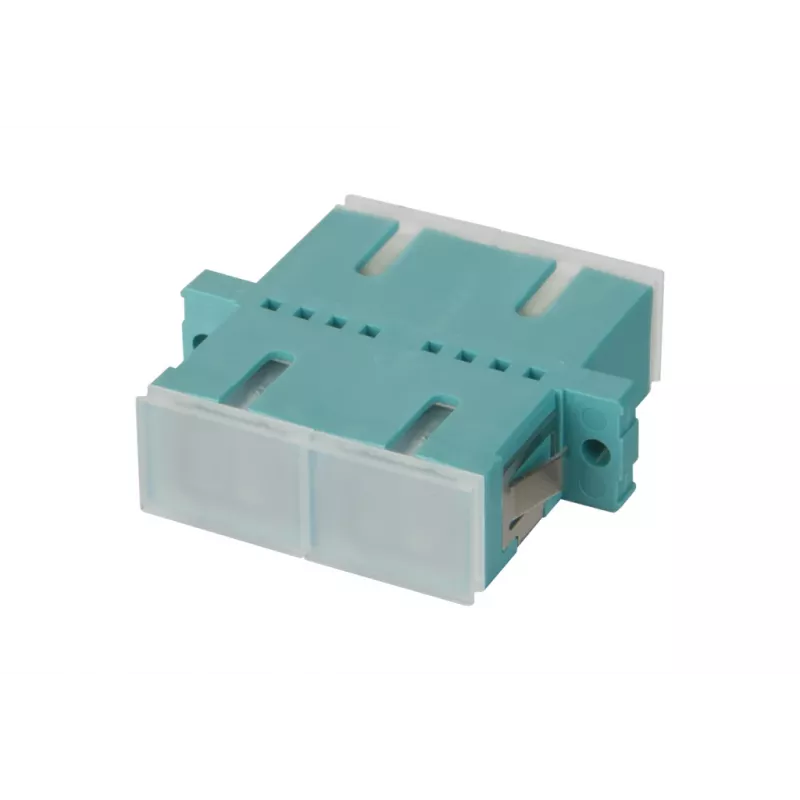

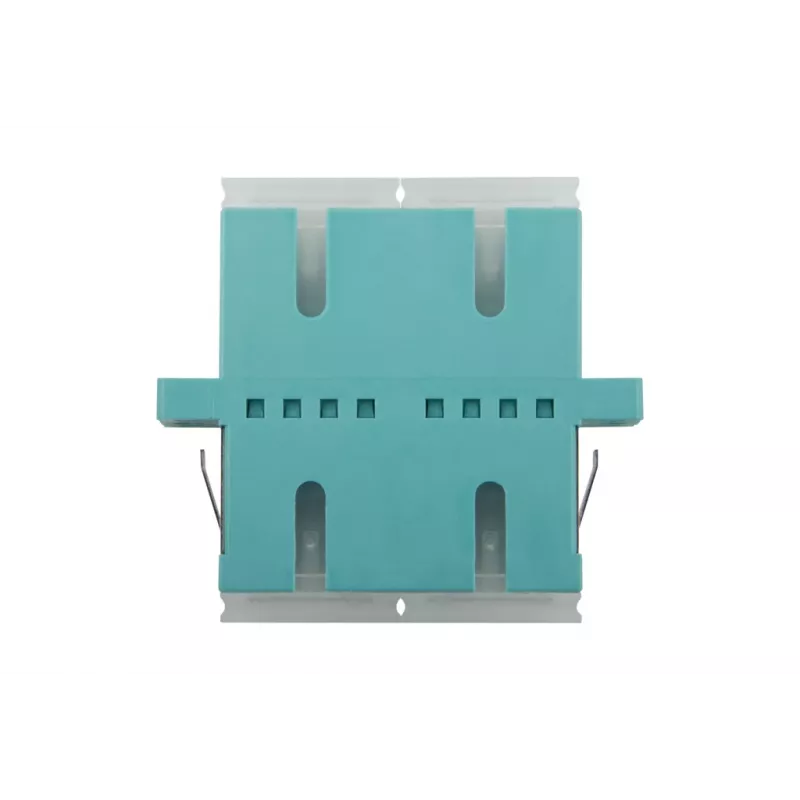

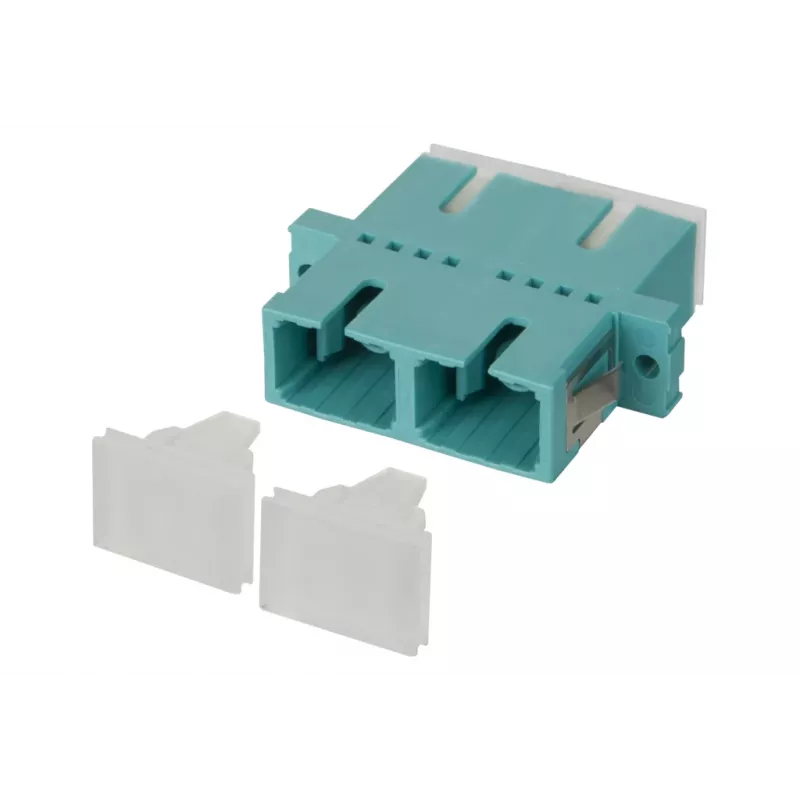

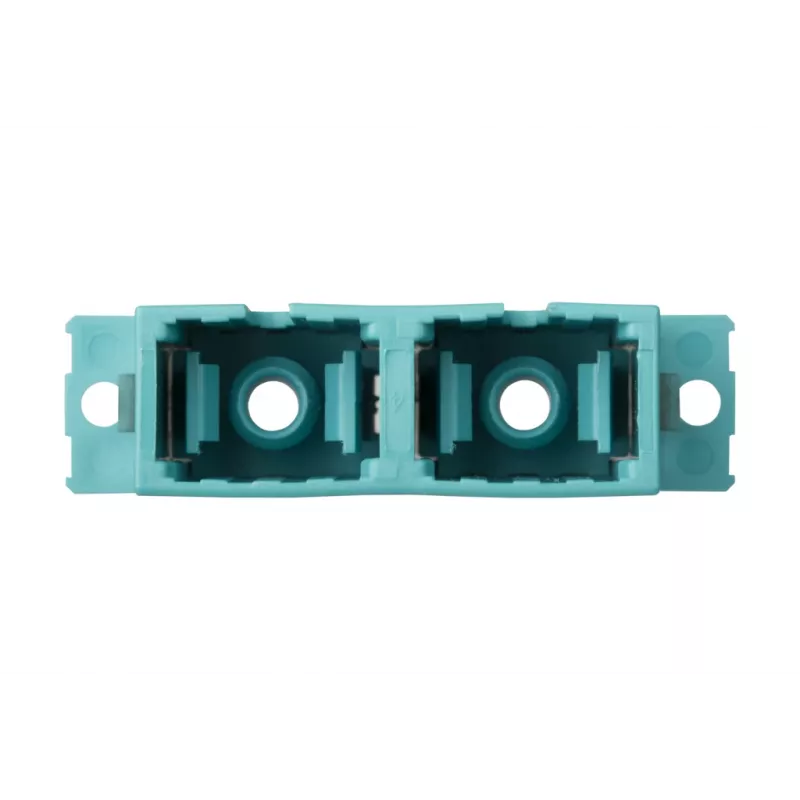

METZ BTR 150900BA-I OpDAT SC-D MM OM3 fosforbronz aqua Duplex spojka

With an insertion loss of less than 0.2 dB, this SC duplex coupler ensures your multimode OM3 links stay strong and clear. The phosphor bronze sleeve delivers precise alignment for every connection, making it a dependable choice for high-speed fiber networks.

Overview

The METZ BTR 150900BA-I is a snap-in SC duplex adapter designed for OM3 multimode fiber. Its aqua housing follows the standard color code for OM3, simplifying identification in patch panels, wall outlets, and distribution boxes. The coupler accommodates two fibers (duplex) and is built for reliable performance in demanding environments.

What stands out

• Phosphor bronze sleeve for accurate ferrule alignment and low insertion loss.
• Snap-in mounting for quick, tool-free installation in standard cutouts.
• UL 94 V-0 flammability rating for enhanced fire safety.
• Compliant with IEC 61754-4 and TIA/EIA-604-3 standards.
• Wide operating temperature range from -40°C to +85°C.

Technical details

• Connector type: SC duplex
• Fiber type: Multimode OM3
• Sleeve material: Phosphor bronze
• Housing material: Plastic, aqua
• Insertion loss: < 0.2 dB typical
• Mating cycles: > 500
• Operating temperature: -40°C to +85°C
• Storage temperature: -40°C to +85°C
• Standards: IEC 61754-4, TIA/EIA-604-3
• RoHS compliant

Our verdict

A robust and precise SC duplex coupler that delivers low-loss connectivity for OM3 multimode networks. Its phosphor bronze sleeve and snap-in design make it a practical choice for both new installations and upgrades.
