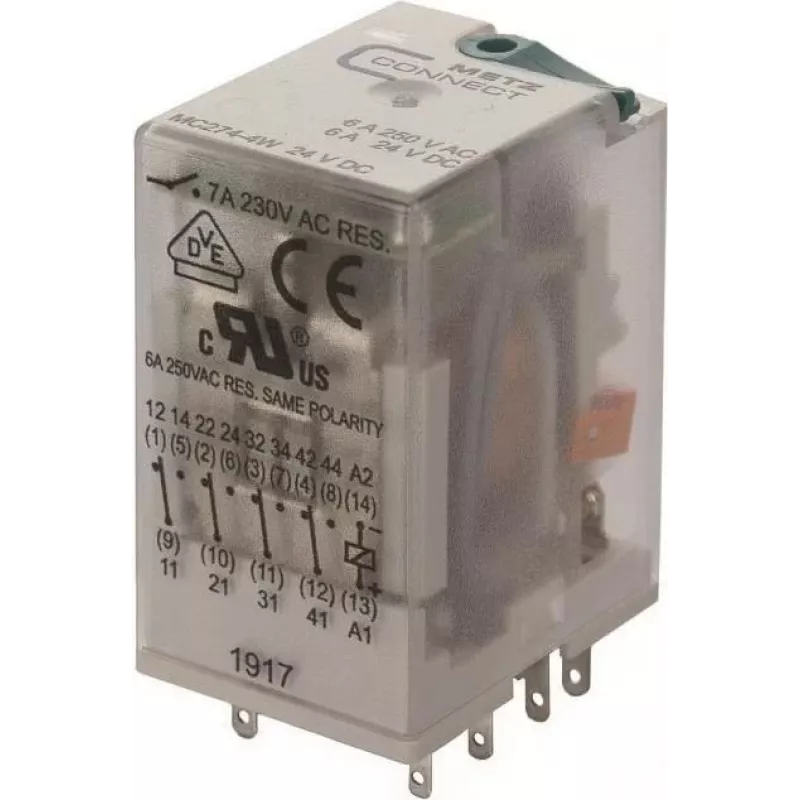

METZ BTR NETCOM priemyselné relé 4PDT 24VDC 7A zásuvné 110017-25.14.07

The METZ BTR NETCOM Industrial Relay 110017-25.14.07 is a high-quality plug-in relay designed for industrial control applications. With 4 changeover contacts (4PDT), a 24 V DC coil, and a 7 A switching capacity, it offers reliable performance and long service life. Suitable for use with standard relay sockets, this relay is ideal for automation, machinery, and panel building.

Advantages

Compact design with high switching capacity; dustproof protection (RT I) ensures durability in harsh environments; low coil power consumption of 0.9 W; high mechanical life of 20 million operations; approved by VDE, UL, CSA, EAC, and RoHS.

Suitable for

• Industrial control panels
• Automation systems
• Machine building
• Process control
• Switching of resistive and inductive loads

Key specifications

• Contact configuration: 4 changeover (4PDT)
• Coil voltage: 24 V DC
• Contact current rating: 7 A
• Contact voltage rating: 250 V AC / 30 V DC
• Contact material: AgNi
• Coil power consumption: 0.9 W
• Dielectric strength: 2.5 kV AC (coil/contact)
• Operating temperature: -40 °C to +70 °C
• Mounting: Plug-in (for relay socket)
• Mechanical life: 20 x 10^6 operations
• Electrical life: 100 x 10^3 operations (rated load)
• Protection degree: RT I (dustproof)
• Switching capacity AC1: 1750 VA
• Switching capacity DC1: 210 W (at 30 V DC)
• Response time: approx. 10 ms
• Release time: approx. 5 ms
• Approvals: VDE, UL, CSA, EAC, RoHS
• Terminal type: Plug-in pins

Recommendations

For optimal performance, use with a compatible relay socket (e.g., METZ CONNECT series). Ensure coil voltage matches your control circuit. Suitable for both new installations and replacement of existing relays.
