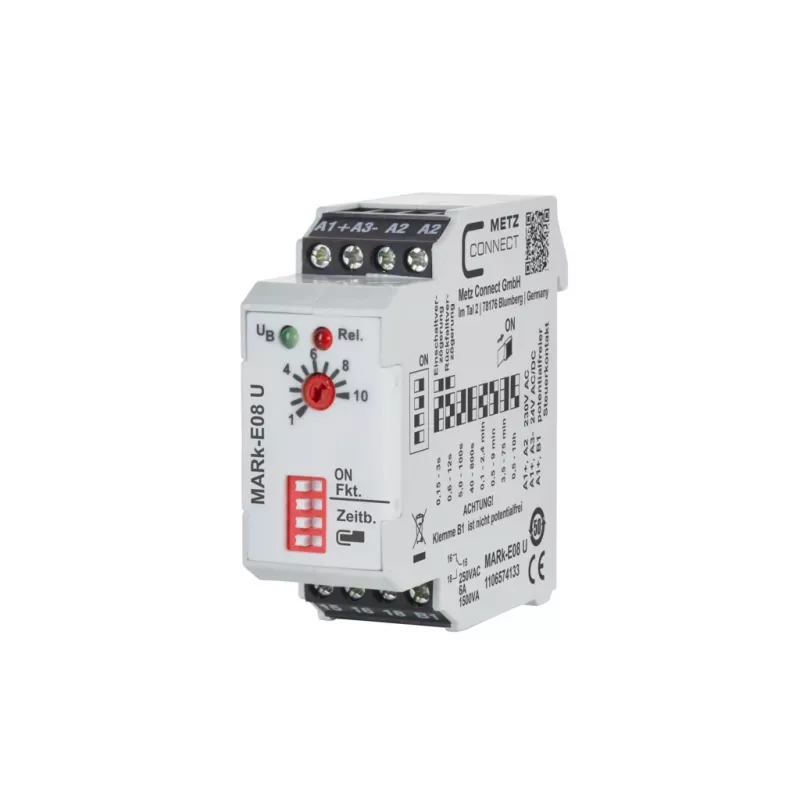

METZ CONNECT 1106574133 výkonové relé biela (1106574133)

In modern electrical engineering, reliable switching of high-power loads is a constant challenge. The METZ CONNECT 1106574133 Leistungsrelais Weiß (1106574133) tackles this head-on with a robust PCB-mounted relay that handles up to 16 A and 250 V AC. Its single changeover contact (SPDT) and flux-proof RT II protection make it a dependable choice for industrial controls, building automation, and power distribution systems where space is limited but performance cannot be compromised.

Who is it for

This relay is engineered for electrical engineers, panel builders, and automation specialists who need a compact, high-current switching solution on printed circuit boards. It suits applications in HVAC systems, lighting control, motor starters, and any scenario requiring reliable galvanic isolation between a low-voltage control circuit and a high-power load.

Main features

• High switching capacity: 16 A rated current, up to 250 V AC / 30 V DC, and 4000 VA / 360 W maximum switching power.
• 24 V DC coil with low power consumption (0.4 W) and 1440 Ohm coil resistance for efficient drive circuits.
• Silver nickel (AgNi) contact material ensures long electrical life (100,000 operations at rated load) and excellent conductivity.
• Reinforced insulation: 5000 V AC dielectric strength between coil and contacts, 1000 V AC between open contacts.
• Wide operating temperature range from -40 °C to +85 °C for harsh environments.
• Flux-proof (RT II) construction protects against solder flux and contaminants during PCB assembly.
• Compact PCB mounting with standard pin layout for easy integration.
• Approvals: VDE, UL, CSA for global compliance.

Specifications

• Contact configuration: 1 CO (SPDT)
• Rated switching current: 16 A
• Coil voltage: 24 V DC
• Coil power: 0.4 W
• Coil resistance: 1440 Ohm
• Max. switching voltage: 250 V AC / 30 V DC
• Max. switching power: 4000 VA / 360 W
• Contact material: AgNi
• Insulation voltage (coil-contact): 5000 V AC
• Dielectric strength (contact-contact): 1000 V AC
• Operating temperature: -40 °C to +85 °C
• Mounting type: PCB
• Protection degree: RT II (flux proof)
• Electrical life: 100,000 operations
• Mechanical life: 10,000,000 operations
• Color: White
• Approvals: VDE, UL, CSA

Tips

When designing the PCB, ensure adequate creepage and clearance distances around the relay contacts, especially for 250 V AC loads. Use a flyback diode across the coil to protect driving transistors from voltage spikes. For maximum contact life, consider snubber circuits for inductive loads. The relay's flux-proof design allows wave soldering, but avoid ultrasonic cleaning to prevent damage to the sealed construction.
