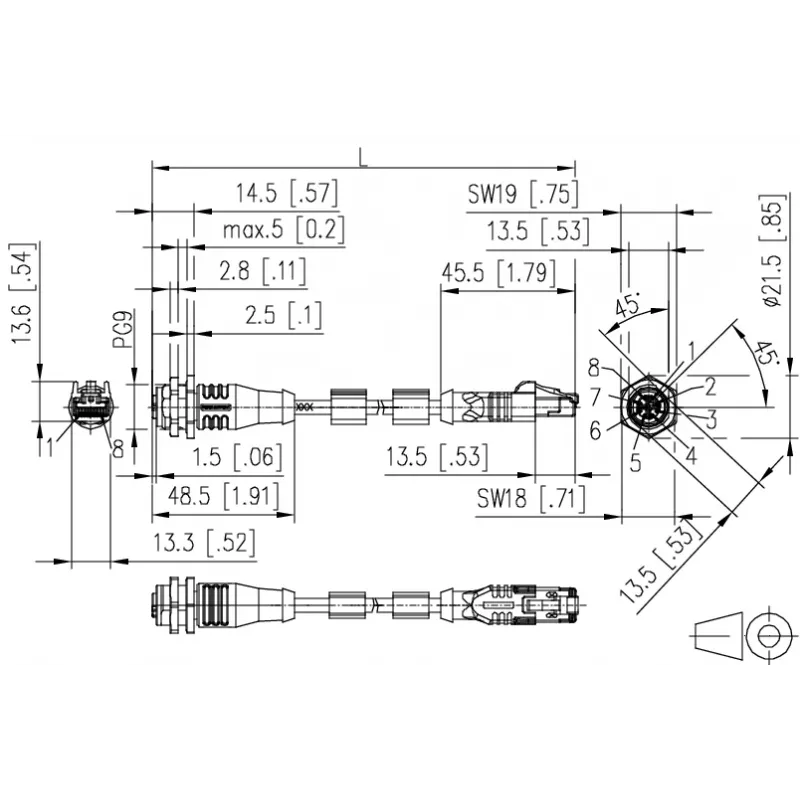

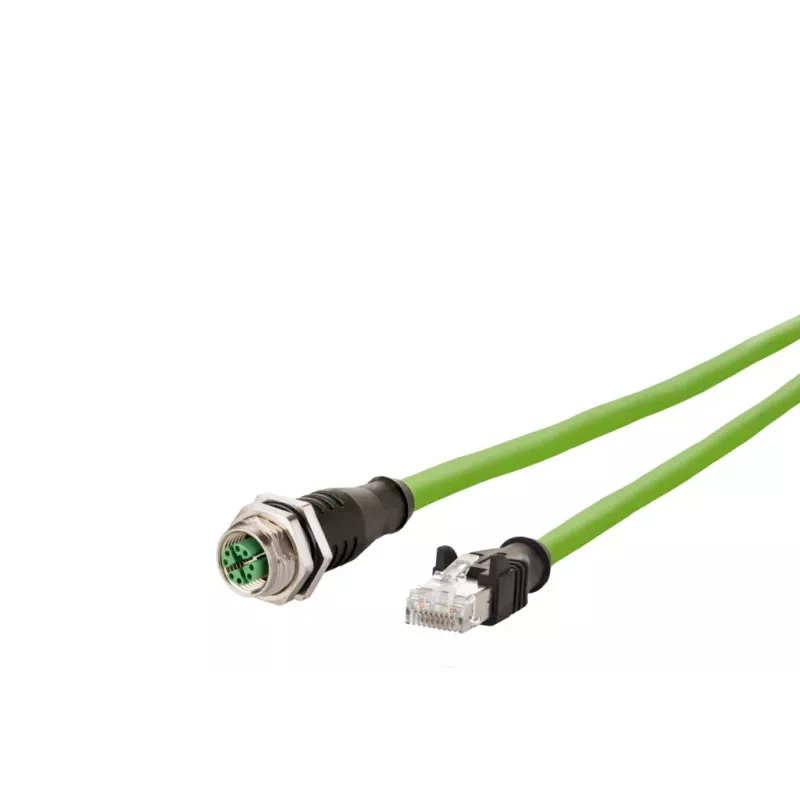

METZ CONNECT 142M2X25100 priemyselný ethernetový kábel - 10 m Cat 6a S/FTP, konektor samec M12 X-kódovaný na konektor samec RJ45, bezhalogénový zelený

Industrial Ethernet networks often face harsh conditions where standard cables fail, leading to signal loss, corrosion, or downtime. The METZ CONNECT 142M2X25100 solves these challenges with a rugged 10-meter Cat 6a S/FTP cable, engineered for reliable 10 Gigabit data transmission in demanding automation environments. Its halogen-free green jacket ensures safety and visibility, while the M12 X-coded plug and RJ45 male connector provide secure, high-performance connectivity.

Who is it for

This cable is ideal for system integrators, machine builders, and maintenance engineers working with industrial automation, machine vision, or process control. It suits applications requiring robust Ethernet connections between sensors, cameras, PLCs, and switches, especially where vibration, moisture, or tight spaces are present.

Main features

• Cat 6a performance supporting 10GBASE-T up to 10 Gbps
• S/FTP shielding (screened and foiled twisted pairs) for superior EMI immunity
• M12 X-coded plug (8-pin, IP67) to RJ45 male connector
• Halogen-free (LSZH) jacket for low smoke and toxicity in fire situations
• Stranded conductors for flexibility in moving applications
• Outer diameter of 6.4 mm for easy routing in cable carriers
• Green colour for quick identification in industrial settings

Specifications

• Brand: METZ CONNECT
• Model: 142M2X25100
• MPN: 142M2X25100
• EAN: 4251122182983
• Cable length: 10 m
• Cable type: Cat 6a S/FTP
• Connector 1: M12 X-coded plug
• Connector 2: RJ45 male
• Connector gender: Plug to Male
• Connector form factor: Straight
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Data rate: 10 Gbps
• Conductor type: Stranded
• Jacket material: Halogen-Free (LSZH)
• Outer diameter: 6.4 mm
• Colour: Green
• IP rating (Connector 1): IP67

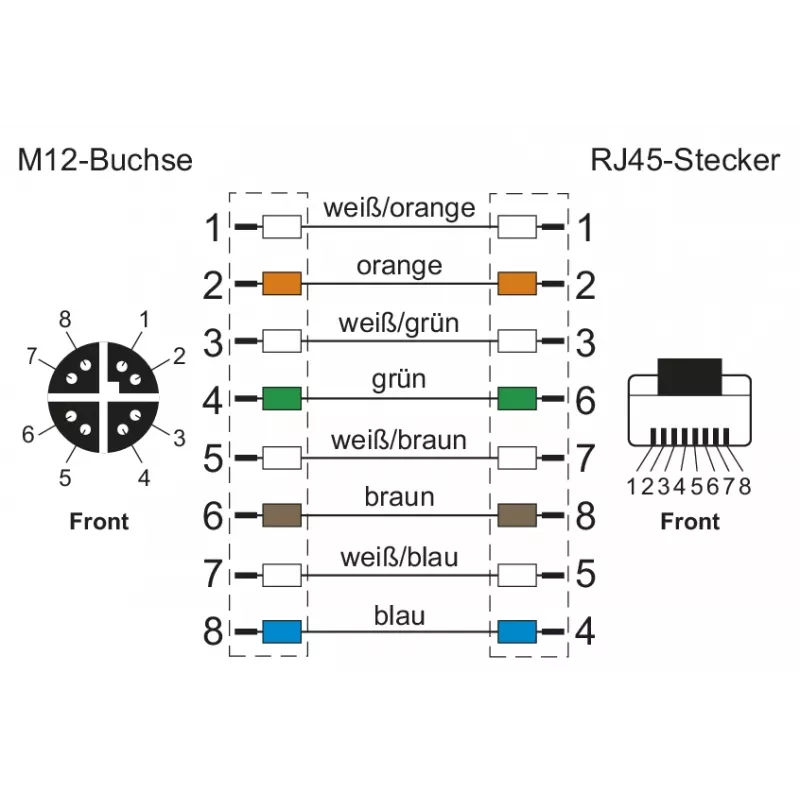

• Wiring standard: TIA/EIA-568B
• Application: Industrial Automation, Machine Vision, Process Control

Tips

For optimal performance, ensure connectors are fully seated and avoid sharp bends near the connector ends. Use cable ties or strain relief in high-vibration areas to prolong service life. When routing through cable carriers, maintain the minimum bend radius recommended by the manufacturer.
