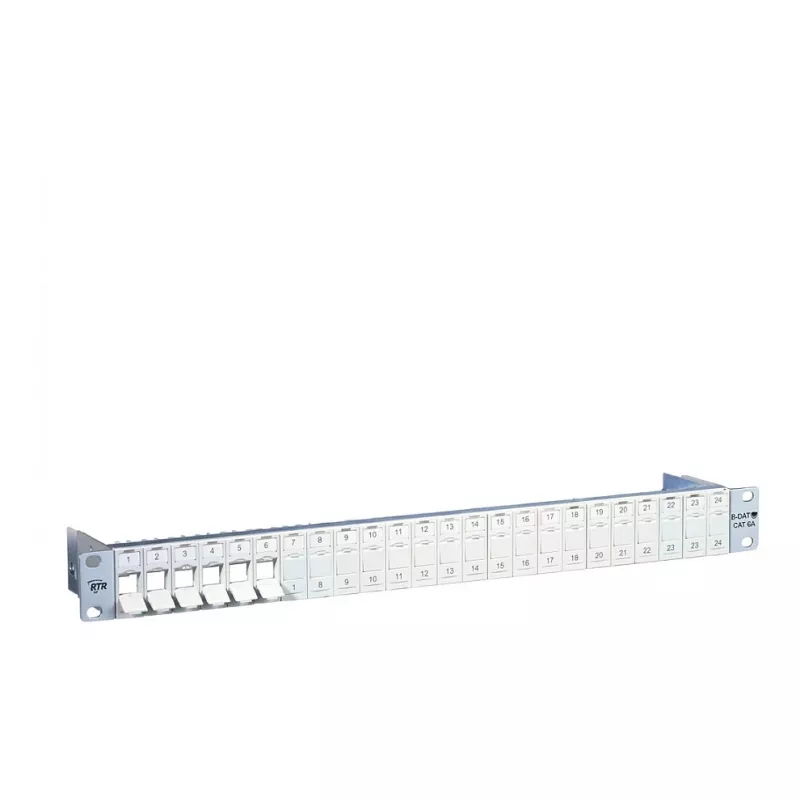

METZ CONNECT BTR E-DAT modulový patch panel - 24 portov - Cat.6A - tienený - 1U - svetlosivá (RAL 7035) - 130920-00-E

The METZ CONNECT BTR E-DAT Module Patch Panel is a high-performance, shielded 19-inch rack-mountable panel designed for structured cabling in demanding network environments. With 24 RJ45 ports and Cat.6A performance, it supports data rates up to 10 Gigabit Ethernet and is fully compatible with PoE++ (IEEE 802.3bt) Type 3 & 4, making it ideal for power-hungry devices such as PTZ cameras and wireless access points. The panel features tool-free module installation, LSA-Plus (IDC) termination for AWG 24-22, and a central grounding point for reliable shielding. Its light grey (RAL 7035) powder-coated steel front panel and galvanized steel housing ensure durability and corrosion resistance. The panel is UL listed and GHMT certified, guaranteeing compliance with international standards.

Advantages

This patch panel offers exceptional reliability and ease of installation. The tool-free module mounting saves time during deployment, while the clear labeling fields simplify port identification and management. The shielded design minimizes electromagnetic interference (EMI), ensuring stable data transmission even in high-density environments. With support for PoE++ up to 90W per port, it future-proofs your network for advanced IoT and smart building applications. The wide operating temperature range (-40°C to +70°C) makes it suitable for industrial and outdoor installations.

Suitable for

• Data centers requiring high-density, high-performance cabling
• Enterprise networks with 10 Gigabit Ethernet and PoE++ devices
• Industrial environments with extreme temperature conditions
• Smart building and IoT deployments needing reliable connectivity

Key specifications

• Product Type: Patch Panel
• Number of Ports: 24
• Connector Type: RJ45
• Performance Category: Cat.6A (ISO/IEC 11801 Ed.2.2, EN 50173-1, TIA/EIA-568-C.2)
• Shielding: Shielded (STP/FTP)
• Rack Units: 1U
• Mounting: 19-inch Rack Mountable
• Color: Light Grey (RAL 7035)
• Termination: LSA-Plus (IDC) for AWG 24-22
• Housing Material: Sheet steel, galvanized
• Front Panel Material: Sheet steel, powder-coated
• Contact Material: Phosphor bronze, gold-plated
• PoE Support: PoE+ (IEEE 802.3at) and PoE++ (IEEE 802.3bt) Type 3 & 4
• Cable Entry: Rear
• Grounding: Central grounding point
• Labeling: Labeling fields for port identification
• Installation: Tool-free module installation
• Operating Temperature: -40°C to +70°C
• Certifications: UL listed, GHMT certified

Recommendations

For optimal performance, pair this patch panel with METZ CONNECT Cat.6A shielded patch cables and LSA-Plus termination tools. Ensure proper grounding to maximize shielding effectiveness. This panel is an excellent choice for new installations or upgrades to 10GbE and PoE++ networks.
