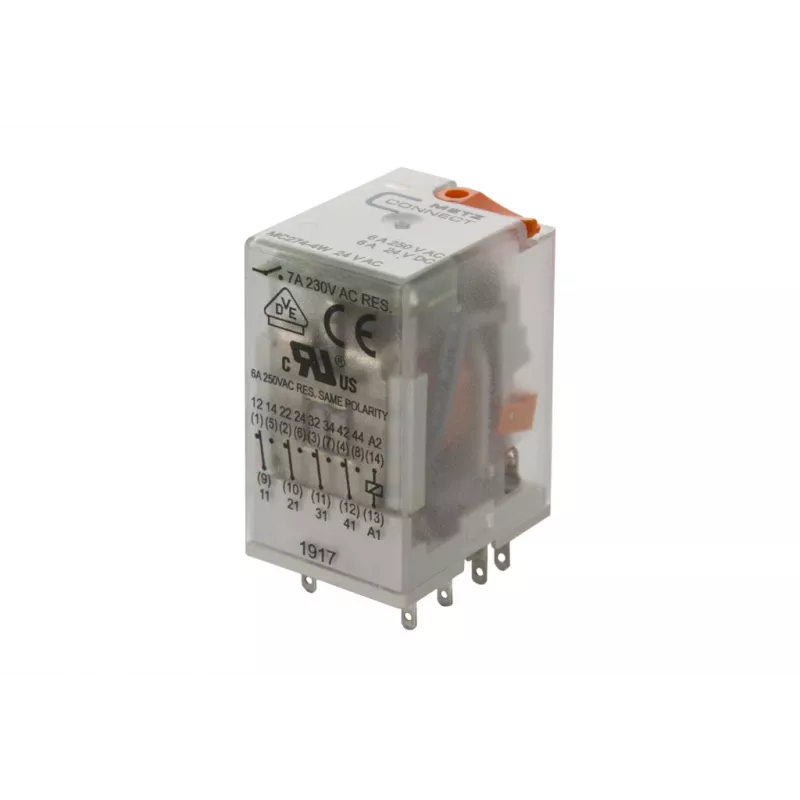

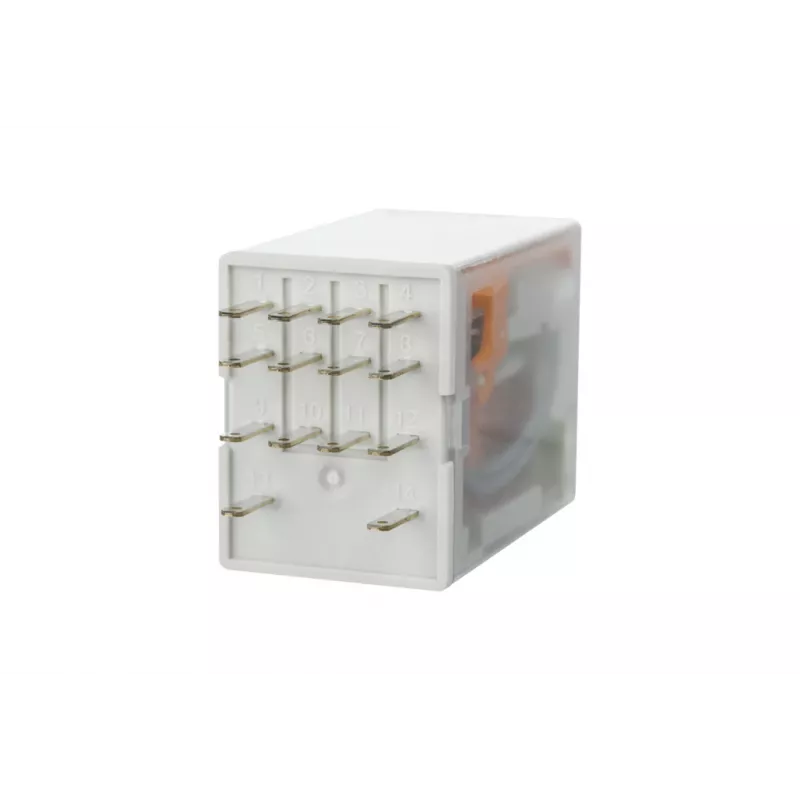

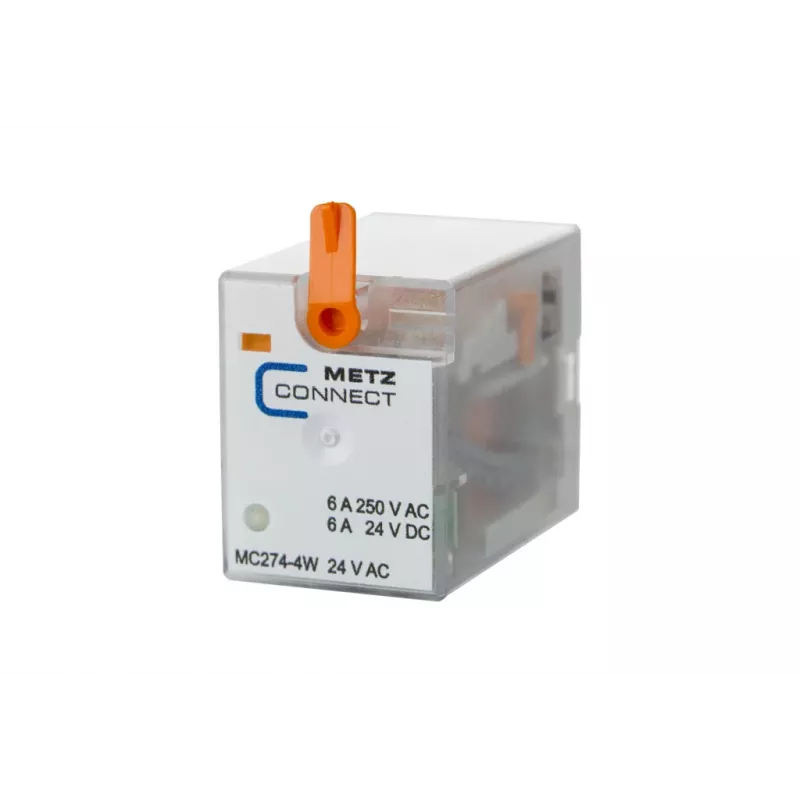

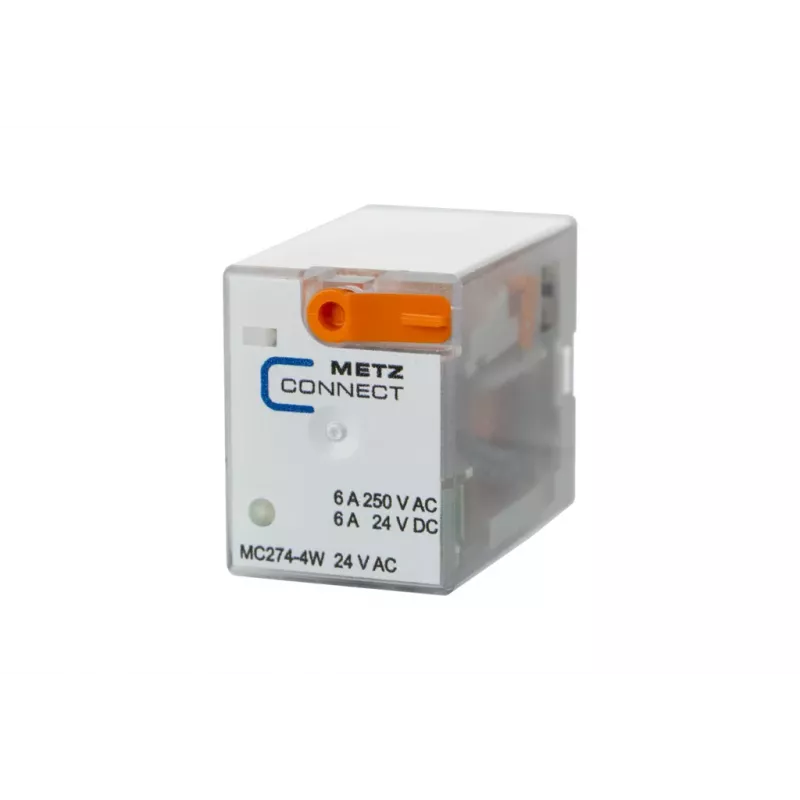

METZ CONNECT BTR NETCOM priemyselné relé 4PDT 24VAC 7A zásuvné relé 110017101407

The METZ CONNECT BTR NETCOM Industrial Relay is a high-quality, plug-in relay designed for demanding industrial applications. With a 4PDT (4 changeover) contact configuration, 24 VAC coil voltage, and a rated current of 7 A, this relay ensures reliable switching and long service life. It features silver nickel (AgNi) contacts, LED indication, and is approved by UL, CSA, and VDE.

Advantages

This relay offers excellent mechanical and electrical durability, with a mechanical life of 20 million operations and electrical life of 1 million operations at rated load. Its compact plug-in design with blade terminals simplifies installation and replacement. The integrated LED indicator provides clear visual status, and the wide operating temperature range (-40 to +70 °C) makes it suitable for harsh environments.

Suitable for

• Industrial control panels
• Automation systems
• Building management systems
• Machine control
• Process control

Key specifications

• Product Type: Industrial Relay
• Contact Configuration: 4 Changeover (4 CO / 4PDT)
• Coil Voltage: 24 VAC
• Rated Contact Current: 7 A
• Max. Switching Voltage: 250 VAC / 30 VDC
• Max. Switching Power: 1750 VA / 210 W
• Contact Material: AgNi (Silver Nickel)
• Coil Power Consumption: 1.2 VA
• Operating Temperature Range: -40 to +70 °C
• Mounting Type: Plug-in (for socket mounting)
• Number of Pins: 14
• Dielectric Strength (Coil-Contact): 2.5 kV (RMS, 1 min)
• Mechanical Life: 20 x 10^6 operations
• Electrical Life (at rated load): 10 x 10^5 operations
• Protection Degree: IP40
• Terminal Type: Blade Terminals
• Approvals: UL, CSA, VDE

Recommendations

For optimal performance, use with a compatible METZ CONNECT relay socket. Ensure proper mounting and wiring according to the manufacturer's specifications. This relay is ideal for upgrading or maintaining industrial control systems.
