METZ CONNECT E-DAT C6A IDC nástenná zásuvka dopravná biela - sieťové príslušenstvo

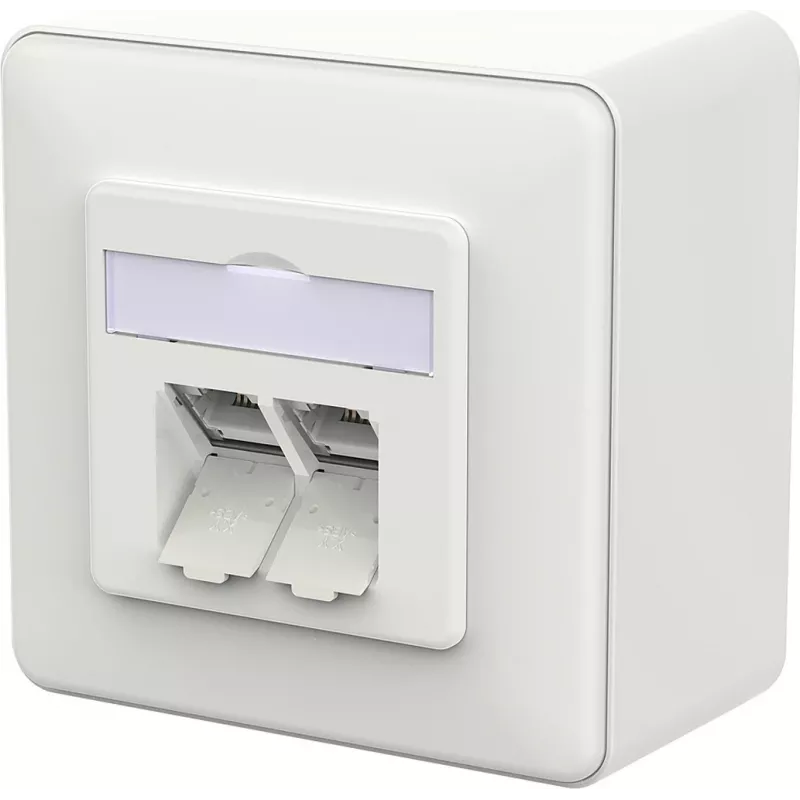

The METZ CONNECT E-DAT C6A IDC Surface Mount Outlet is a high-performance network data outlet designed for professional structured cabling. It supports Category 6A (ISO/IEC 11801-1) for 10 Gigabit Ethernet and features shielded construction for reliable data transmission. The outlet is surface-mounted (AP) and comes in traffic white (RAL 9010), making it suitable for visible installations in offices, data centers, and industrial environments.

Advantages

This outlet offers exceptional performance and durability. It supports PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt) for power over Ethernet applications. The IDC termination ensures quick and secure connections without special tools. Integrated dust protection flaps and strain relief enhance longevity and reliability. The 45° outlet angle facilitates easy cable management.

Suitable for

• Structured cabling in commercial buildings
• Data center patching
• Industrial Ethernet networks
• PoE devices such as IP cameras, access points, and IoT sensors

Key specifications

• Product Type: Network Data Outlet
• Mounting Type: Surface-mounted (AP)
• Number of Ports: 2x RJ45
• Category: Cat.6A (ISO/IEC 11801-1)
• Shielding: Shielded
• Termination Type: IDC
• Color: Traffic White (RAL 9010)
• Transmission Speed: Up to 10 Gigabit Ethernet
• Wiring Scheme: TIA-568A/B
• Housing Material: PC/ABS
• Contact Plating: Gold-plated (min. 0.8 µm)
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Cable Compatibility (Solid): AWG 24/1 - 22/1
• Cable Compatibility (Stranded): AWG 26/7 - 22/7
• Certifications: ISO/IEC 11801-1, EN 50173-1, ANSI/TIA-568-C.2
• Operating Temperature: -40°C to +70°C
• IP Rating: IP20
• Design Features: Integrated dust protection flaps, strain relief
• Connection Angle: 45° outlet angle
• Series: E-DAT C6A

Recommendations

For optimal performance, use with Cat.6A shielded patch cables and ensure proper grounding. This outlet is ideal for high-speed networks requiring reliability and future-proofing.
