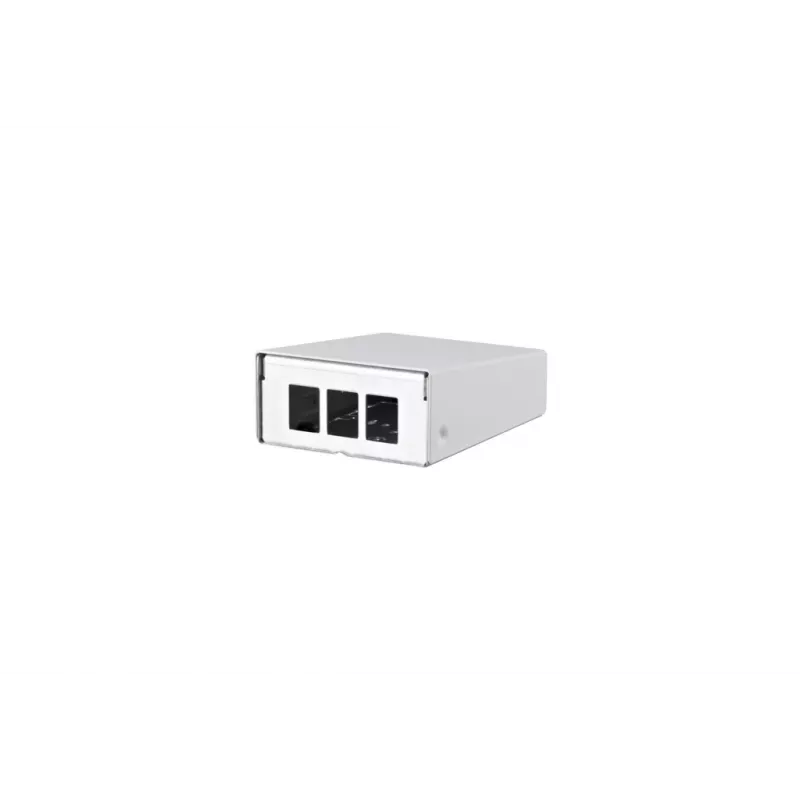

Metz Connect Keystone AP kryt 3 porty čistá biely, nezakrytý

The Metz Connect Keystone AP Housing 3 Port is a high-quality wall-mounted surface mount enclosure designed for structured cabling in FTTH, LAN, and data center applications. This robust housing accommodates up to three keystone modules and features a sleek pure white finish (RAL 9010) that blends seamlessly into any environment. Manufactured with a powder-coated aluminium body and a powder-coated steel front plate, it offers durability and a professional appearance. The housing supports LC-Duplex connectors with zirconia ceramic adapter sleeves for reliable fiber optic connections. It provides multiple cable entry options (rear, top, bottom) and accepts cables up to 13 mm in diameter. With an IP20 protection class, it is suitable for indoor use. The product meets IEC 61753-1 and EN 50173-1 standards, ensuring compliance with industry requirements.

Advantages

This housing offers a compact and versatile solution for terminating fiber optic cables. Its wall-mountable design saves space and allows for easy installation. The powder-coated materials provide corrosion resistance and a long service life. The inclusion of zirconia ceramic sleeves ensures low insertion loss (<0.25 dB) and high return loss (>30 dB), maintaining signal integrity. The housing is compatible with standard keystone modules, offering flexibility for various connector types.

Suitable for

• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN)
• Data center cabling
• Wall outlet points for fiber optic connections

Key specifications

• Mounting Type: Wall-mounted (surface mount)
• Connector Type: LC-Duplex
• Number of Ports: 2 (housing supports up to 3 keystone modules)
• Fiber Type: Multimode OM4
• Adapter Sleeve Material: Zirconia ceramic
• Colour: White (RAL 9010)
• Housing Material: Powder-coated aluminium
• Front Plate Material: Powder-coated steel
• Protection Class: IP20
• Operating Temperature: -20 to 70 °C
• Storage Temperature: -25 to 70 °C
• Humidity: 5 to 95% (non-condensing)
• Insertion Loss: <0.25 dB
• Return Loss: >30 dB
• Cable Entry Options: Rear, top, bottom
• Max. Cable Diameter: 13 mm
• Standards Compliance: IEC 61753-1, EN 50173-1

Recommendations

For optimal performance, use with OM4 multimode fiber patch cables and LC connectors. Ensure proper cable management to maintain bend radius. This housing is ideal for creating neat and organized fiber termination points in commercial and residential settings.
