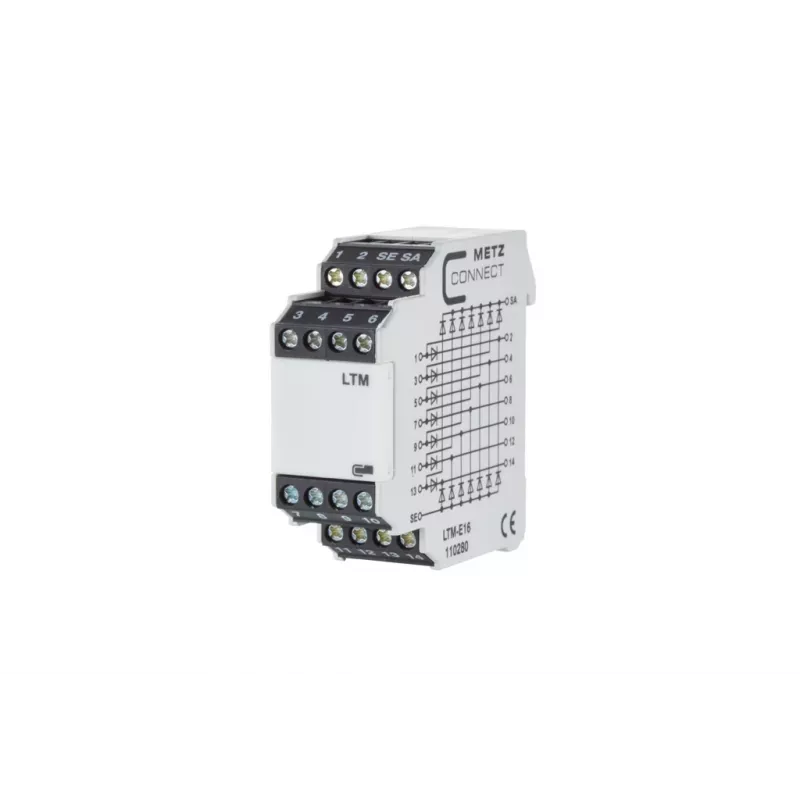

METZ CONNECT LTM-E16 výkonové relé biele 16 A 1 prepínač 24 V DC 110280

For switching tasks where a compact, high-current interface relay is required, the METZ CONNECT LTM-E16 stands apart from typical plug-in relays with its 16 A changeover contact and robust coil design. Its white housing and washable construction make it suitable for both industrial control panels and demanding environments where cleanliness and reliability matter.

Highlights

• 1 changeover (CO) contact rated for 16 A switching current
• Coil voltage 24 V DC with low 0.45 W power consumption
• High dielectric strength of 5000 V AC between coil and contact
• Washable RT I protection for PCB cleaning processes
• Wide operating temperature range from -40 °C to +70 °C

In daily use

This relay is engineered for plug-in mounting, simplifying installation and replacement in sockets or PCB assemblies. The 5-pin layout ensures secure connection, while the mechanical life of 10 million operations guarantees long-term durability. With an electrical life of 100,000 operations at rated load, it handles frequent switching without premature failure. The white housing provides clear visual identification in dense control cabinets.

Full specifications

• Product type: Power Relay / Interface Relay
• Contact configuration: 1 Changeover (CO)
• Rated switching current: 16 A
• Rated switching voltage AC: 250 V AC
• Rated switching voltage DC: 30 V DC
• Coil voltage: 24 V DC
• Coil power: 0.45 W
• Coil resistance: 1280 Ohm
• Dielectric strength coil/contact: 5000 V AC
• Mounting type: Plug-in
• Number of pins: 5
• Operating temperature range: -40 °C to +70 °C
• Mechanical life: 10^7 operations
• Electrical life: 10^5 operations at rated load
• Protection degree: RT I (washable)
• Housing colour: White

Final note

The METZ CONNECT LTM-E16 combines high switching capacity with a compact, washable design, making it a reliable choice for industrial automation and control applications.
