METZ CONNECT RJ45 keystone modul Cat.6A tienený čierny balenie 1 ks

The METZ CONNECT 1309310901-E is a high-performance RJ45 keystone module designed for Category 6A (Class EA) applications, supporting 10 Gigabit Ethernet (10GBASE-T) and Power over Ethernet (PoE, PoE+, PoE++) up to IEEE 802.3bt. This shielded (STP/FTP) module ensures reliable data transmission and minimal crosstalk in demanding network environments.

Advantages

Tool-free termination with IDC technology simplifies installation, saving time and reducing errors. The die-cast zinc housing with nickel plating provides robust shielding and durability, while gold-plated phosphor bronze contacts guarantee over 750 mating cycles. Compatible with 24-22 AWG solid and 26-22 AWG stranded cables, this module offers flexibility for various cabling setups.

Suitable for

• Structured cabling in data centers and enterprise networks
• 10GBASE-T installations requiring Cat.6A performance
• PoE applications including security cameras, access points, and IoT devices
• Keystone patch panels and faceplates

Key specifications

• Connector Type: RJ45 Jack
• Category: Cat.6A (Class EA)
• Shielding: Shielded (STP/FTP)
• Transmission Standard: 10 Gigabit Ethernet (10GBASE-T)
• PoE Support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Mounting Type: Keystone Module
• Termination Type: Tool-free IDC
• Color: Black (RAL 9005)
• Housing Material: Die-cast zinc (nickel-plated)
• Contact Material: Gold-plated phosphor bronze
• Number of Ports: 1
• Cable Entry Direction: Straight (180°)
• AWG Compatibility: 24-22 AWG solid, 26-22 AWG stranded
• Mating Cycles: >750
• Operating Temperature: -40°C to +70°C
• Flammability Rating: UL 94 V-0 (plastic parts)

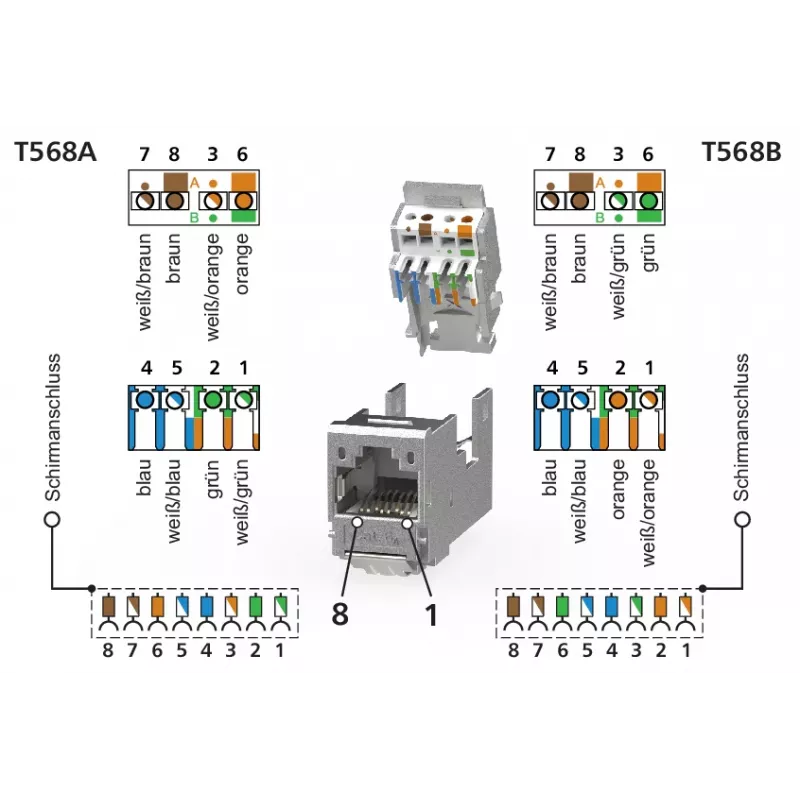

• Wiring Scheme: T568A / T568B
• Standard Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Recommendations

For optimal performance, pair with Cat.6A shielded patch cables and ensure proper grounding. Suitable for use with METZ CONNECT patch panels and faceplates.
