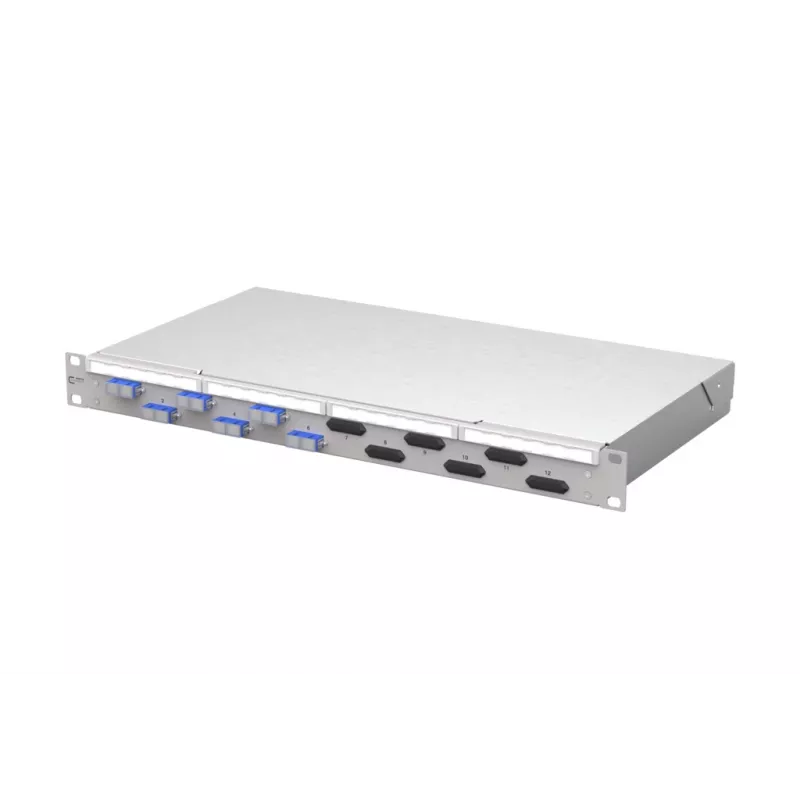

METZ CONNECT VIK 6xSC-D OS2 optický patch panel, 1U racková montáž, 12 vlákien, single-mode, svetlosivá 150450E206-F

Engineered for high-density fiber management, this METZ CONNECT VIK patch panel delivers 12 OS2 single-mode fibers in a compact 1U rack-mount footprint. With 6 SC duplex ports and a pre-installed splice cassette, it ensures low insertion loss and reliable performance in demanding network environments.

Overview

The VIK 6xSC-D OS2 patch panel is a 19-inch rack-mountable solution designed for structured cabling in data centers, enterprise networks, and telecommunications rooms. It accommodates up to 12 fibers (6 SC duplex ports) and features a robust steel housing with a light grey powder-coated finish (RAL 7035). The panel includes a splice cassette with holders for crimp and heat shrink splice protection, and 2-meter pigtails with 900 µm buffer diameter. Cable entry is via rear knockouts (M20/M25/M32), allowing flexible installation. The panel complies with IEC 61753-1 Category U and is RoHS/REACH compliant.

What stands out

• High density: 12 fibers in 1U for efficient rack space utilization.
• Pre-terminated with SC OS2 pigtails (G.657.A1) for quick splicing.
• Integrated splice cassette simplifies fiber management and protection.
• Durable steel housing with light grey powder coating blends into standard racks.
• Rear cable entry with multiple knockout sizes for flexible routing.
• Operating temperature range -10°C to +60°C for harsh environments.

Technical details

• Product type: Fiber optic patch panel
• Series: VIK

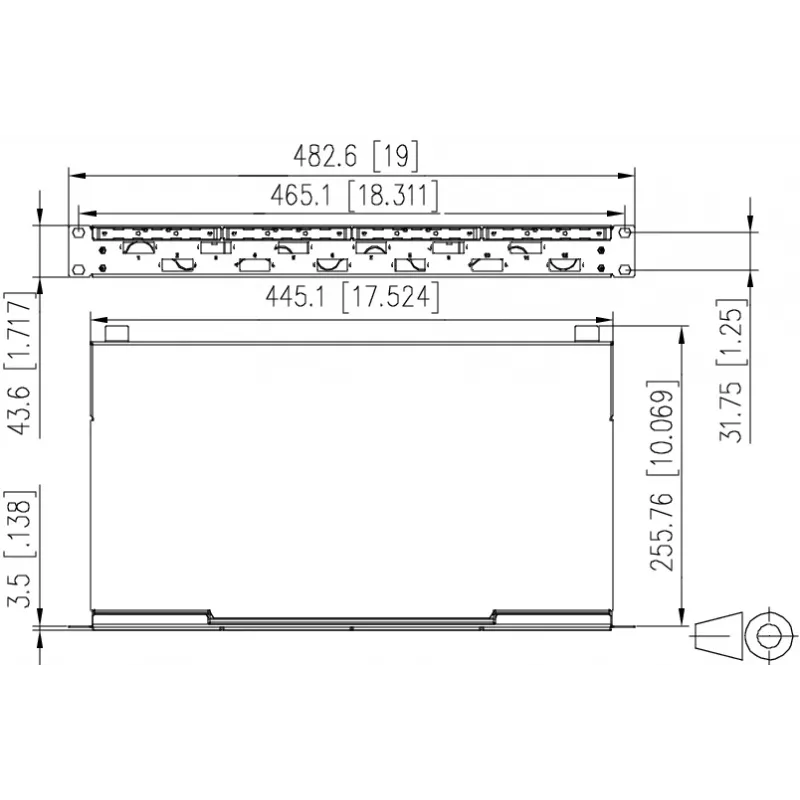

• Mounting: 19-inch rack, 1U height
• Ports: 6x SC duplex (12 fibers total)
• Fiber type: Single-mode OS2 (E9/125µm)
• Pigtail type: SC, OS2, G.657.A1, length 2 m, buffer 900 µm
• Splice cassette: 1x included, for crimp and heat shrink splice protection
• Housing material: Steel, powder-coated, light grey (RAL 7035)
• Cable entry: Rear, knockouts M20/M25/M32
• Protection class: IP20
• Operating temperature: -10°C to +60°C
• Standards: RoHS, REACH, IEC 61753-1 Cat. U

Our verdict

A reliable, space-efficient fiber patch panel for professional installations. The pre-installed pigtails and splice cassette reduce installation time, while the robust construction ensures long-term performance. Ideal for data centers and enterprise networks needing single-mode connectivity.
