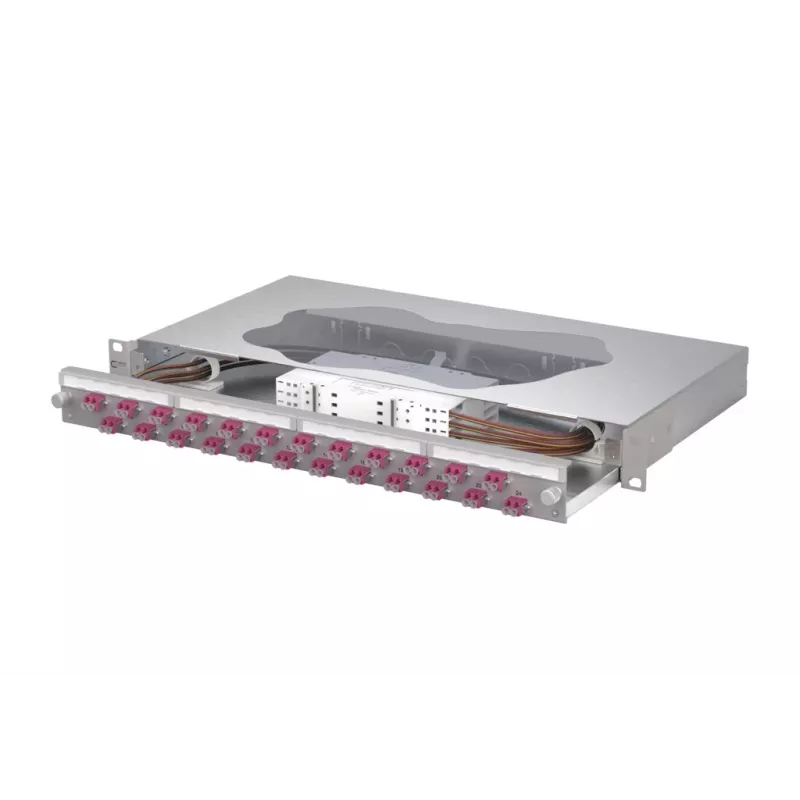

METZ CONNECT zvárací patch panel 24xLC-Duplex OM4, 1U rack montáž, 48 vlákien 1504677524-E

For high-density fiber optic terminations where every rack unit counts, this METZ CONNECT splice patch panel packs 24 LC-Duplex ports into a slim 1U footprint. Unlike basic coupler panels that simply join pre-terminated cables, this unit is built for permanent splicing of pigtails, giving you a clean, low-loss connection point for 48 multimode fibers. The OM4 grade supports 40/100 Gigabit Ethernet up to 150 meters, making it a future-ready choice for data centers and enterprise backbones.

Highlights

• 24 LC-Duplex ports, 48 fibers total, in 1U 19-inch rack mount
• OM4 multimode fiber, optimized for 850 nm VCSEL transmission
• Splice tray design for secure pigtail splicing and fiber management
• Powder-coated steel housing in light grey (RAL 7035)
• Rear cable entry with integrated strain relief and routing guides
• Complies with IEC 61753-1, TIA/EIA-568-C.3, ISO/IEC 11801

In daily use

Installation is straightforward: mount the panel in a standard 19-inch rack, route incoming trunk cables through the rear entry, and splice fibers to the pre-installed pigtails inside the splice tray. The tray slides out for easy access, and the clear port labeling helps technicians identify connections quickly. The steel housing protects against accidental impacts, while the light grey finish blends with most rack environments. With an operating range of -10°C to +60°C, it handles typical indoor conditions without issue.

Full specifications

• Product type: Fiber optic splice patch panel
• Connector type: LC-Duplex
• Number of ports: 24 (duplex)
• Fiber type: Multimode OM4
• Total fiber capacity: 48
• Splicing method: Splice (for pigtails)

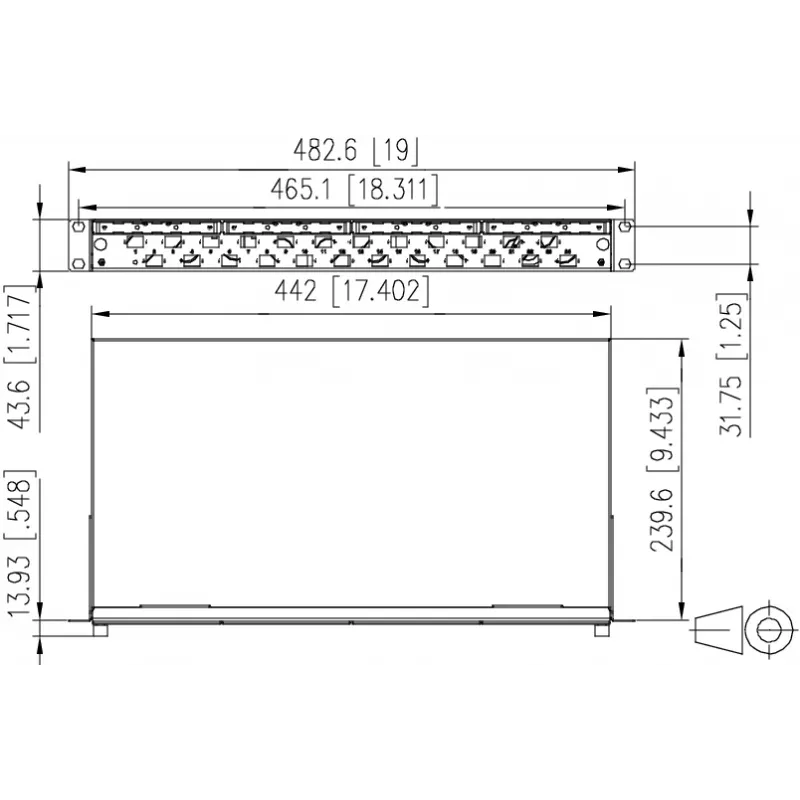

• Mounting: 19-inch rack, 1U height
• Housing material: Steel, powder-coated
• Color: Light grey (RAL 7035)
• Cable entry: Rear
• Integrated cable management: Yes (strain relief and routing guides)
• Application environment: Indoor
• Protection class: IP20
• Operating temperature: -10°C to +60°C
• Storage temperature: -25°C to +70°C
• Standards compliance: IEC 61753-1, TIA/EIA-568-C.3, ISO/IEC 11801

Final note

When you need a reliable, high-density splice solution for OM4 multimode networks, this METZ CONNECT panel delivers the performance and build quality expected from a trusted German manufacturer.
