Zásuvka RJ-45 BTR NETCOM 130B11D31002-E biela

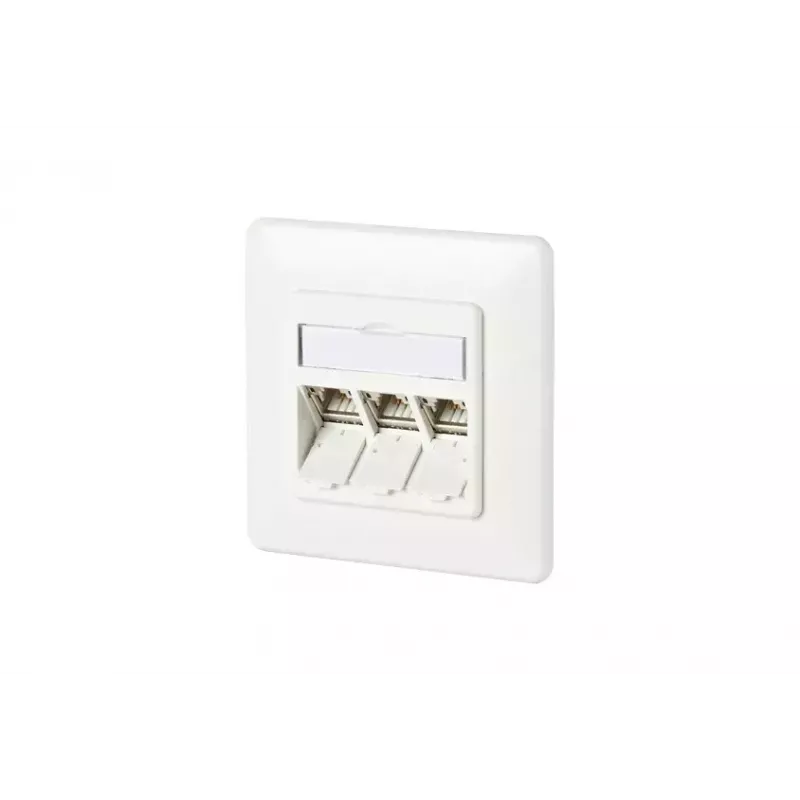

The BTR NETCOM 130B11D31002-E is a flush-mounted RJ-45 socket outlet in pure white (RAL 9010) with a matt structured finish. It uses a C6A module positioned at 180° and is designed and tested for high-speed networks including 10 Gbit Ethernet (IEEE 802.3an). The socket is certified to GHMT Cat.6A re-embedded PVP and complies with class EA up to 500 MHz; component testing covers standards ISO/IEC 11801 Ed.2.2, DIN EN 50173-1 and TIA/EIA-568-C.2, with component tests up to 600 MHz and link tests up to 800 MHz. The unit includes integrated dust protection covers, a label window for identification labels, and comes in 1-, 2- and 3-port variants.

Advantages

The socket supports 10 Gbit Ethernet and is suitable for Power over Ethernet (PoE, PoE+ and UPoE). It offers reliable termination via insulation displacement connectors (IDC) for solid AWG 26/1 to 22/1 and stranded AWG 26/7 to 22/7 conductors. The module plug is oriented 45° downwards for convenient cable routing, and a snapped-on strain relief is provided on the stuffer cap. Integrated dust covers (available in colors) and a label window improve installation clarity and protection. The cover parts are finished in pure white RAL 9010 with a matt textured surface.

Suitable for

• High-speed LANs and structured cabling installations
• 10 Gbit Ethernet deployments (IEEE 802.3an)
• PoE, PoE+ and UPoE powered devices
• Residential and commercial wall-mounted network outlets (design central units)

Key specifications

• Product: Socket-outlet RJ-45 BTR NETCOM 130B11D31002-E
• Color/Finish: Pure white RAL 9010, matt structured surface
• Module: C6A module, 180° orientation
• Standards/Certifications: GHMT Cat.6A re-embedded PVP; ISO/IEC 11801 Ed.2.2; DIN EN 50173-1; TIA/EIA-568-C.2; IEC 60603-7-51 component testing
• Performance: Class EA up to 500 MHz (compliance); components tested up to 600 MHz, link tested up to 800 MHz
• Network: 10 Gbit Ethernet (IEEE 802.3an)
• PoE compatibility: PoE, PoE+ and UPoE
• Termination: IDC for solid AWG 26/1–22/1 and stranded AWG 26/7–22/7
• Module plug direction: 45° downwards
• Variants: 1-port, 2-port, 3-port
• Note: Not suitable for mounting in standard flush-mounted or cavity wall casings

How to use

Prepare the structured cabling according to the applicable installation standards. Terminate conductors into the insulation displacement connectors (IDC) matching the conductor type and AWG size. Fit the C6A module into the flush-mounted termination unit with the module plug oriented 45° downwards for correct cable routing. Snap the strain relief onto the stuffer cap to secure the cable. Insert the identification label into the label window and close the integrated dust protection covers as needed. Follow site-specific grounding and cable management practices.

Recommendations

Do not install this unit in standard flush-mounted or cavity wall casings; use the appropriate design central units when required. Use the labeled identification sheets (accessory) for clear outlet marking and verify PoE power requirements for connected devices prior to commissioning.
