MIBOXER C6 Pixel LED diaľkový ovládač SPI 2,4GHz RGB/RGBW/RGB+CCT

The MIBOXER C6 stands out as a dedicated pixel LED controller with 2.4GHz RF wireless connectivity, capable of managing up to eight independent zones for SPI-based LED strips. Unlike generic IR remotes, it supports RGB, RGBW, and RGB+CCT configurations, making it suitable for both simple colour mixing and tunable white applications.

Highlights

• 2.4GHz RF wireless control with a range of up to 30 metres
• Eight independent control zones for multi-area setups
• Compatible with SPI protocols including WS2812, SK6812, and TM1804
• Adjustable brightness, saturation, and colour temperature
• 16 million colours and dynamic modes with speed control
• Memory function recalls the last setting after power off

In daily use

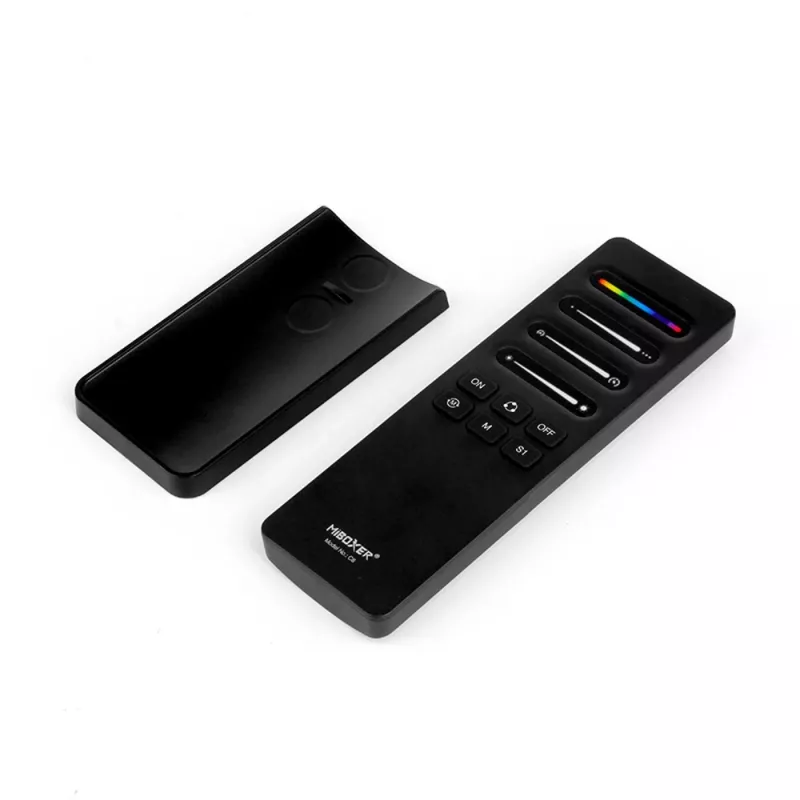

The handheld remote is powered by two AAA batteries and features a compact ABS plastic body. Its GFSK modulation at 6dBm transmission power ensures reliable communication within the 2400-2483.5MHz band. The remote can be used as a handheld device or mounted on a wall with an optional bracket.

Full specifications

• Control method: 2.4GHz RF wireless
• Number of zones: 8
• Compatible LED types: RGB, RGBW, RGB+CCT
• Target LED protocol: SPI (WS2812, SK6812, TM1804, etc.)
• Wireless range: up to 30 m
• Power supply: 2x AAA batteries (not included)
• Operating voltage: 3V DC
• Standby power consumption: 20uA
• Material: ABS plastic
• Operating temperature: -20°C to 60°C
• Modulation: GFSK
• Transmission power: 6dBm
• Frequency band: 2400-2483.5MHz

Final note

The MIBOXER C6 is a versatile remote for users needing precise control over pixel LED installations, offering multi-zone management and broad protocol compatibility.
