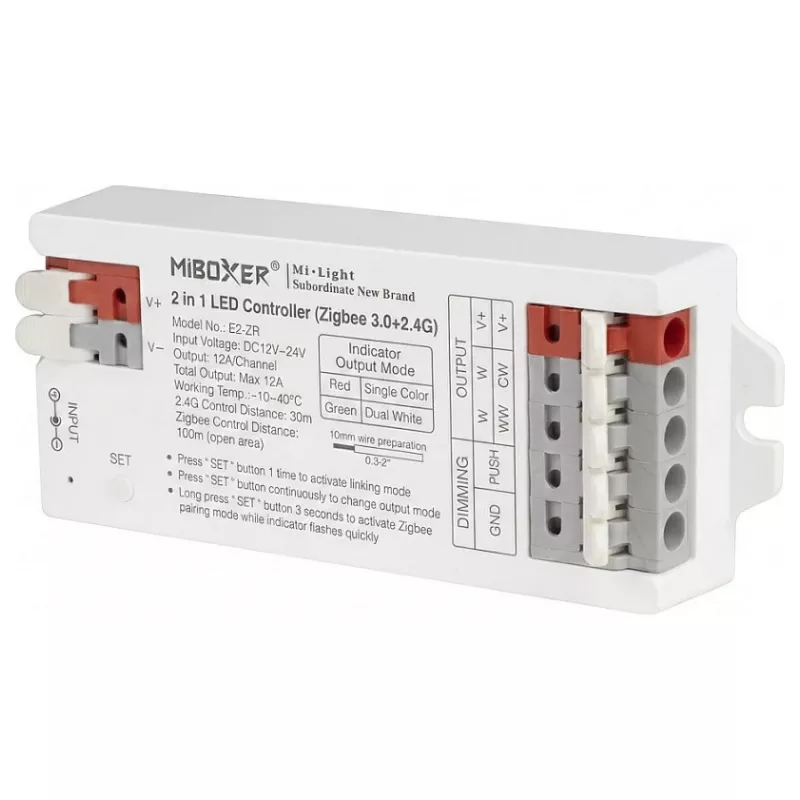

Miboxer LED ovládač 2in1 Single Color/Dual White (CCT) Zigbee 3.0/2.4GHz RF (E2-ZR)

The Miboxer E2-ZR is a versatile 2in1 LED controller that supports both single color (dimming) and dual white (CCT) control modes. It integrates Zigbee 3.0 and 2.4GHz RF wireless protocols, making it compatible with popular smart home systems like Philips Hue, SmartThings, IKEA TRÅDFRI, Amazon Echo Plus, and Home Assistant (via Zigbee2MQTT/ZHA), as well as MiBoxer/Milight 2.4G RF remotes. This controller allows you to adjust brightness and color temperature (warm white to cold white) smoothly from 0-100%.

Advantages

Dual control modes (single color and CCT) in one device; seamless integration with major Zigbee hubs; long-range RF control up to 30m; auto-transmitting and auto-synchronization for multiple controllers; memory function retains last settings after power loss.

Suitable for

• Smart home lighting systems
• Commercial and residential LED strip installations
• DIY lighting projects requiring both dimming and color temperature adjustment

Key specifications

• Product Type: LED Controller
• Control Modes: Single Color (DIM), CCT (Dual White)
• Wireless Protocol 1: Zigbee 3.0
• Wireless Protocol 2: 2.4GHz RF (MiBoxer/Milight compatible)
• Input Voltage: DC 12-24V
• Max Output Current: 12A (Total)
• Max Output Power (12V): 144W
• Max Output Power (24V): 288W
• Output Type: Constant Voltage
• Dimming Range: 0-100%
• Number of Output Channels: 2 Channels (Warm White / Cold White)
• RF Control Distance: Up to 30m
• Operating Temperature: -20°C to 60°C
• Protection Rating: IP20
• Housing Material: ABS Plastic

Recommendations

For best performance, use with a compatible Zigbee hub or MiBoxer/Milight 2.4G remote. Ensure power supply voltage matches your LED strip (12V or 24V). Not suitable for constant current LEDs.
