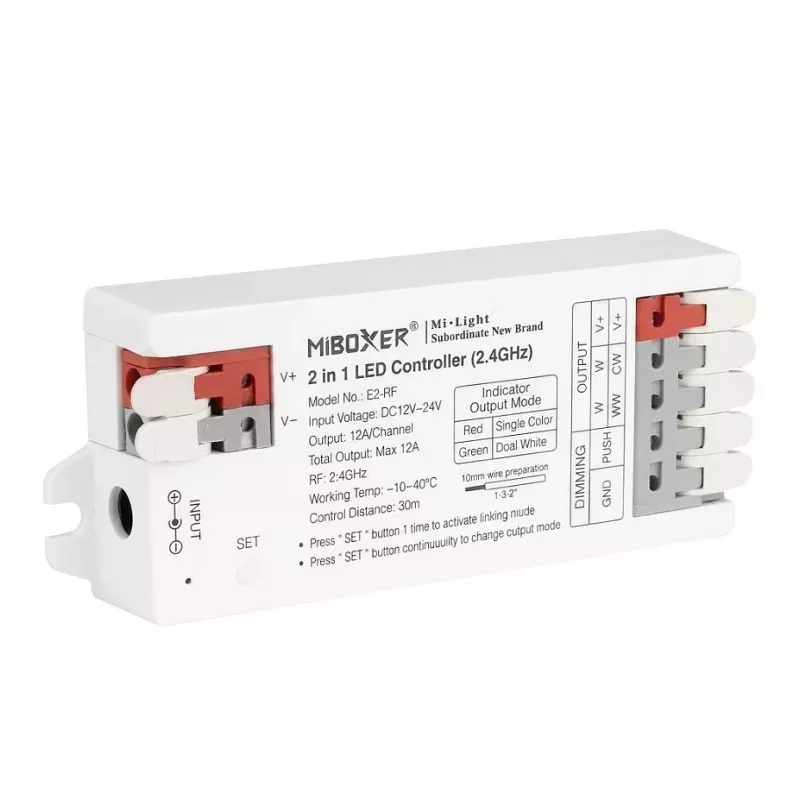

MIBOXER LED ovládač séria E 2in1 jednofarebný / dvojitá biely (CCT) 2,4GHz RF E2-RF

The MIBOXER E2-RF is a versatile 2in1 LED controller designed for both single color (dimming) and dual white (CCT) LED strips. It operates on a 2.4GHz RF wireless protocol, ensuring reliable control up to 30 meters. Compatible with MiBoxer and MiLight systems, this controller can be used with remote controls, wall panels, or via smartphone app and voice control when paired with the WL-Box1 gateway.

Advantages

This controller offers dual functionality in one device, reducing inventory complexity. It features power-off memory, overload and short circuit protection, and a wide dimming range from 0 to 100%. The CCT mode allows color temperature adjustment from 2700K to 6500K, making it suitable for various lighting scenes.

Suitable for

• Single color LED strip dimming
• Dual white (CCT) LED strip control
• Residential and commercial lighting projects
• Smart home integration via gateway

Key specifications

• Input Voltage: DC 12V-24V
• Output Current per Channel: Max 6A
• Total Output Current: Max 12A
• Max Output Power: 144W (12V) / 288W (24V)
• Control Distance: Up to 30 meters
• Operating Temperature: -20°C to 60°C
• Output Channels: 2
• Dimming Range: 0-100%
• Color Temperature Range: 2700K-6500K
• Connection Type: Screw Terminals
• Protection: Overload, Short Circuit
• Memory Function: Power-off memory
• Housing Material: ABS Plastic
• IP Rating: IP20

Recommendations

For full smart control, pair with the MIBOXER WL-Box1 gateway to enable smartphone app and voice control via Amazon Alexa or Google Assistant.
