MiBoxer TR2 2v1 LED ovládač, DIN lišta, 12–48 V DC, 20 A

MiBoxer TR2 controls single-colour and dual-white CCT constant-voltage LED strips. The Set button selects one of these two output modes, indicated by a red or green light. It accepts 12–48 V DC and supports up to 20 A per channel, with a maximum of 20 A across all channels combined. The power supply and LED strip must use the same voltage.

Control is provided by compatible MiBoxer/Mi-Light 2.4 GHz RF remotes, with a specified range of up to 30 m in suitable conditions. The controller can forward commands to another linked controller. Tuya Smart app and supported voice-assistant integration require a separate compatible 2.4 GHz gateway. A Link button starts pairing, and the configurable Do Not Disturb function determines the light state after a power interruption.

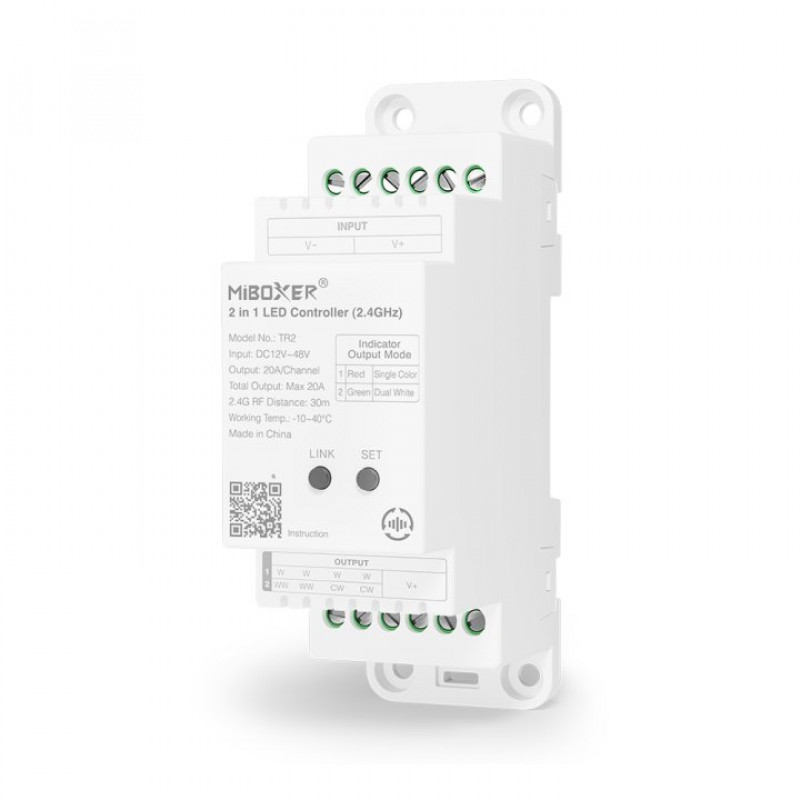

The white enclosure mounts on a standard 35 mm DIN rail, including TS-35/7.5 and TS-35/15 profiles. Screw terminals connect the power supply and single-colour or warm/cool-white outputs. It is rated IP20 for dry indoor use and operates at −10 to +40 °C. The power supply, LED strips, rail, remote and gateway are selected separately to suit the installation.
