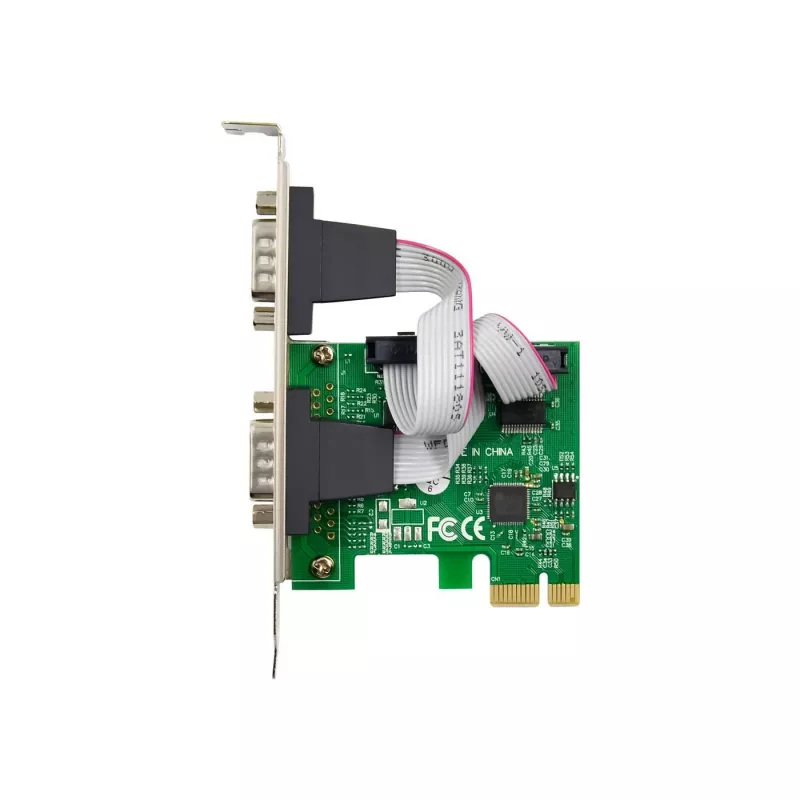

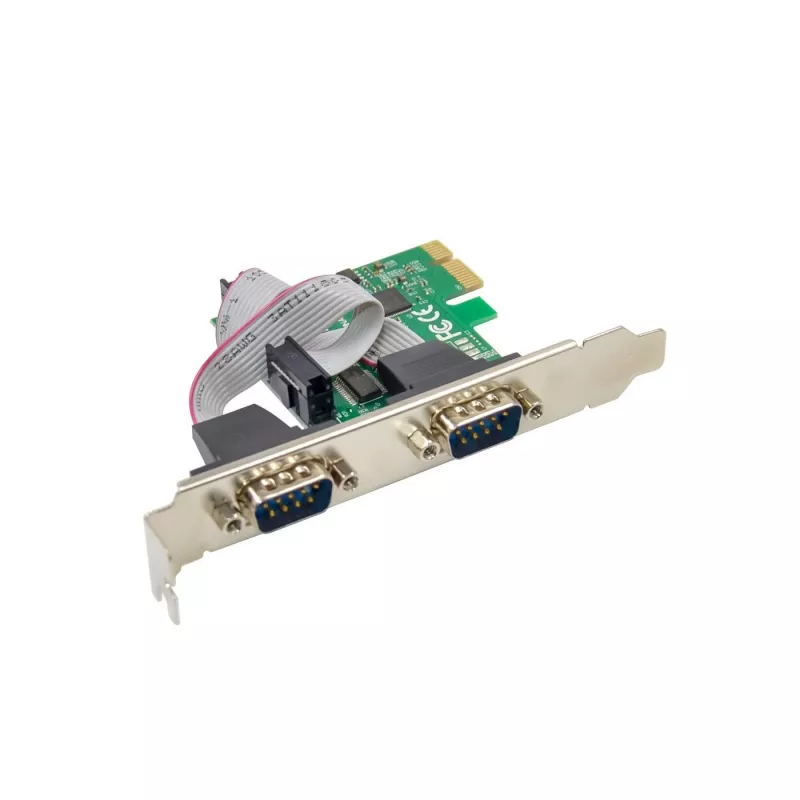

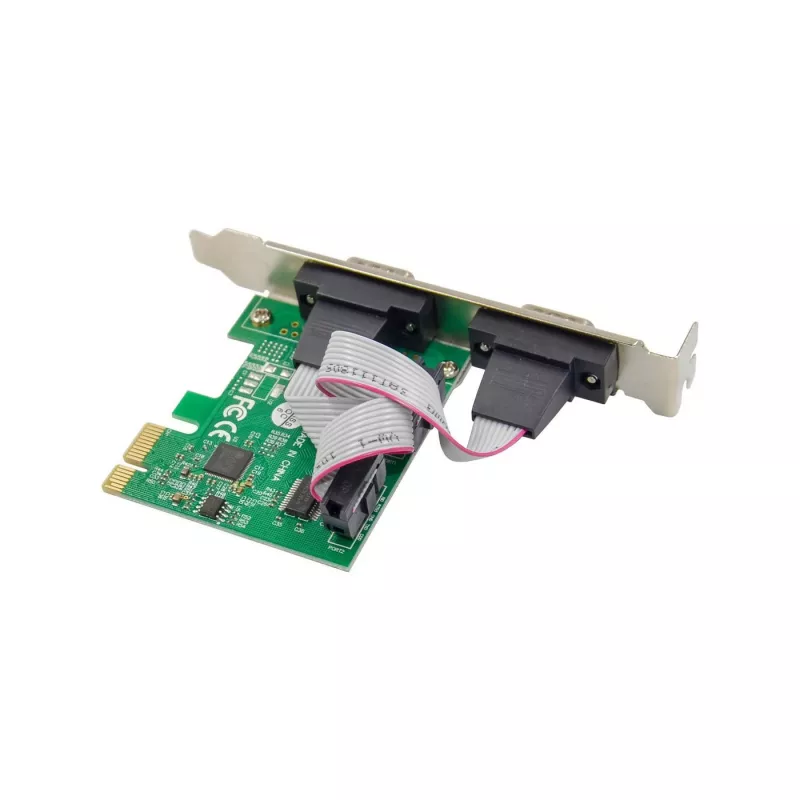

Microconnect MC-PCIE-MCS2S rozširujúca karta/adaptér interný Serial

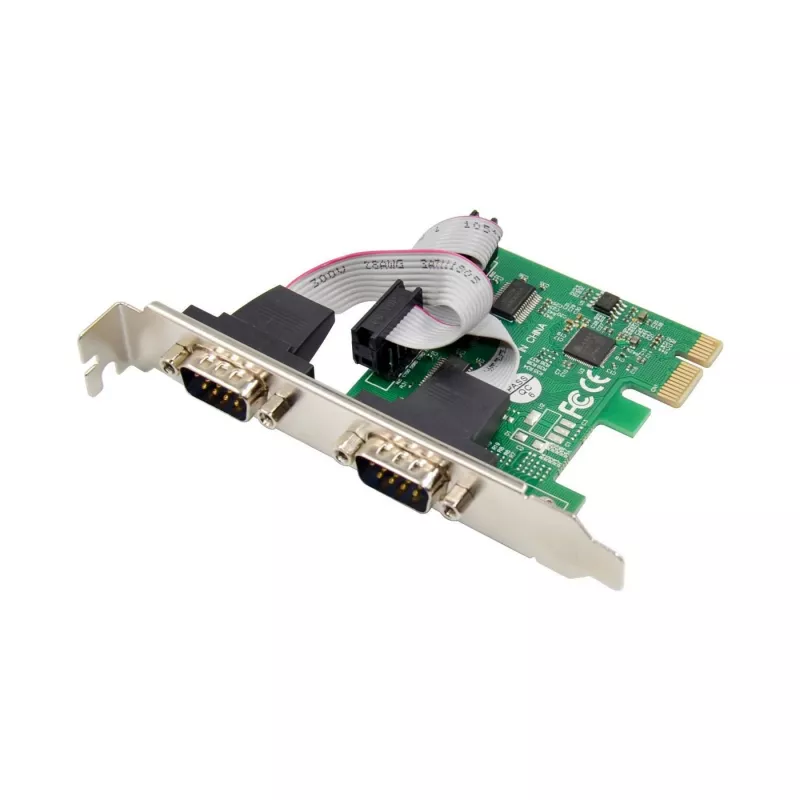

The Microconnect MC-PCIE-MCS2S is a PCI Express expansion card that provides two external serial ports (RS-232) and one external parallel port. It uses the MCS9901 chipset and fits into a standard PCIe slot to add legacy device connectivity to desktop PCs. The card is supplied with a standard profile bracket already mounted and includes an extra low-profile bracket for compact or small-form-factor systems.

Advantages

The card delivers reliable serial and parallel connectivity for peripherals such as scanners, printers and mice. Its PCIe host interface ensures compatibility with modern motherboards while the compact dimensions (175 mm x 130 mm x 34 mm) and light weight (0.11 kg) make it suitable for a range of desktop and compact PC enclosures. Inclusion of both standard and low-profile brackets simplifies installation in different chassis types.

Suitable for

• Connecting serial devices (RS-232) such as barcode scanners and industrial equipment
• Adding a parallel port for older printers and legacy peripherals
• Upgrading desktop or small-form-factor PCs that require additional I/O ports

Key specifications

• Model: Microconnect MC-PCIE-MCS2S
• Host interface: PCIe
• Chipset: MCS9901
• External ports: 2 × serial (RS-232), 1 × parallel
• Internal: Yes
• Weight: 0.11 kg
• Package size: 175 mm × 130 mm × 34 mm

How to use

Power off the PC and insert the card into an available PCIe slot on the motherboard. Secure the bracket to the case, then install the appropriate driver for the MCS9901 chipset if required by the operating system. Reconnect power, boot the system and attach serial and parallel devices to the external ports. Verify port availability and settings in the operating system's device manager or serial port configuration utility.

Recommendations

Install drivers provided by your OS vendor or the card manufacturer for reliable operation. Use shielded serial cables in electrically noisy environments and choose the low-profile bracket when installing in compact cases to ensure proper fit.
