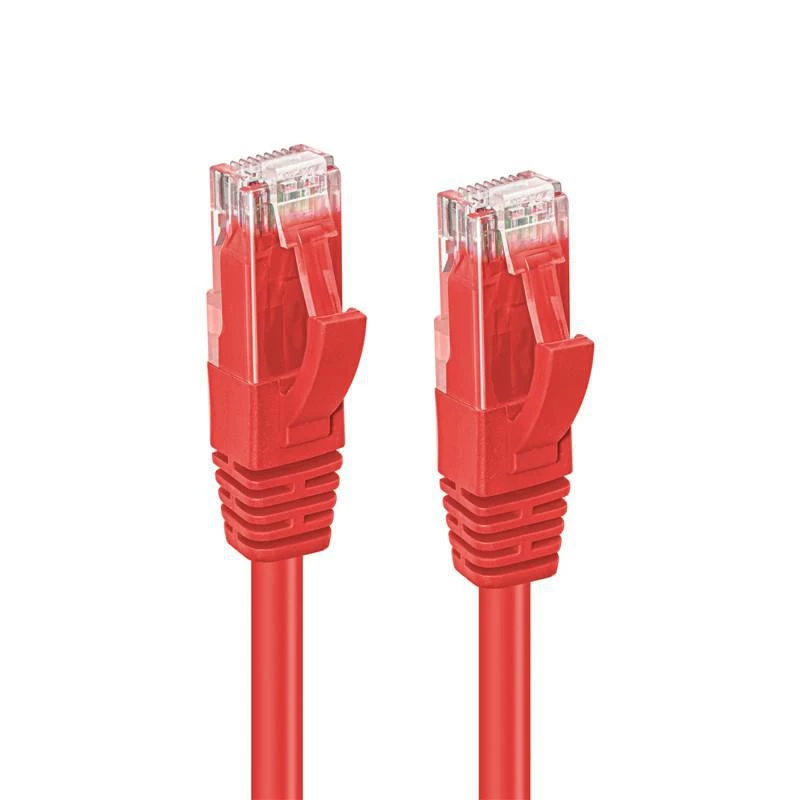

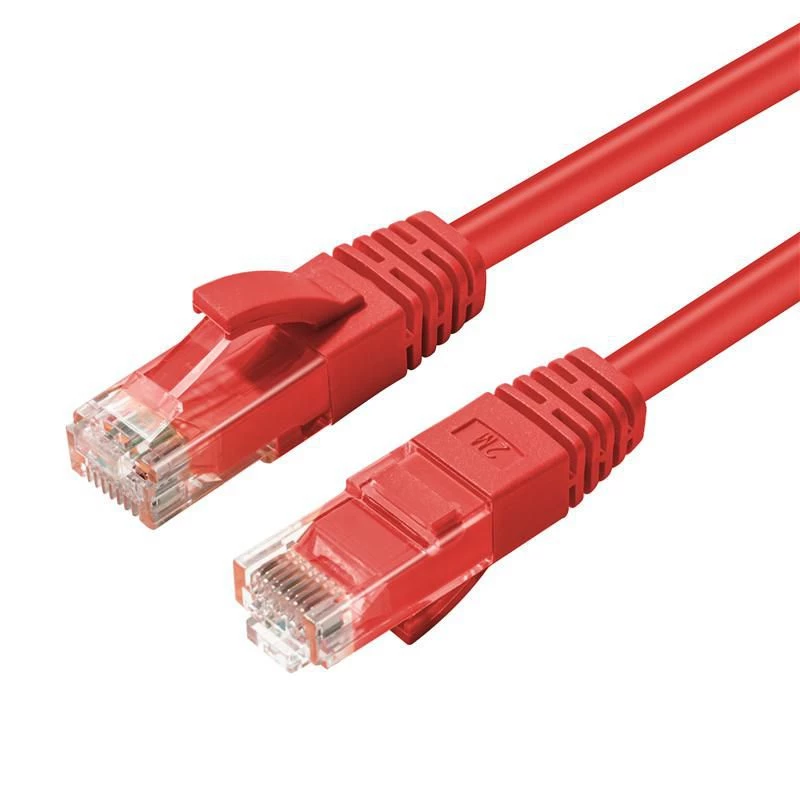

Microconnect MC-UTP6A20R sieťový kábel červený 20 m Cat6a U/UTP (UTP)

The MicroConnect CAT6a Patch Cable MC-UTP6A20R is a 20 m U/UTP network cable with RJ-45 connectors designed for 10Gbit/s networks and bandwidths up to 500 MHz. The cable has gold-plated 50 µ" RJ45 contacts to ensure stable connectivity, a latch protection design that helps prevent clip breakage, and meter markings on the boot for quick length identification. The red PVC jacket makes the cable easy to identify in cable runs.

Advantages

This Cat6a cable supports data rates up to 10000 Mbit/s and is suitable for demanding network environments thanks to U/UTP construction and high-frequency performance up to 500 MHz. Gold-plated contacts improve contact reliability and corrosion resistance, while latch protection reduces the risk of connector damage during handling. Meter markings on the boot provide fast visual length identification.

Suitable for

• 10G Ethernet connections in server rooms and data centers
• High-bandwidth office networks and workstations
• Structured cabling installations requiring Cat6a performance
• Temporary or permanent patching where cable color coding is useful

Key specifications

• Brand: MicroConnect
• Model / MPN: MC-UTP6A20R
• Standard: Cat6a
• Length: 20 m
• Connectors: RJ-45 to RJ-45
• Data rate: up to 10000 Mbit/s
• Bandwidth: up to 500 MHz
• Shielding: U/UTP (unshielded twisted pair with overall screen)
• Contacts: gold-plated 50 µ" RJ45
• Colour: Red
• Weight: 0.516 kg

How to use

Connect one RJ-45 plug to the network device (switch, router, NIC) and the other plug to the corresponding port. Ensure connectors click into place and the latch protection is aligned to reduce stress on the clip. Route the cable to avoid sharp bends and excessive tension, and use the meter markings on the boot to confirm the required length during installation.

Recommendations

For best performance, use this Cat6a cable in environments that require 10G Ethernet and maintain cable bend radius and separation from strong electromagnetic sources. Avoid excessive pulling force during installation and verify connections after deployment.
