Microconnect POEINJ-60W-UK PoE adaptér Gigabit Ethernet 55 V

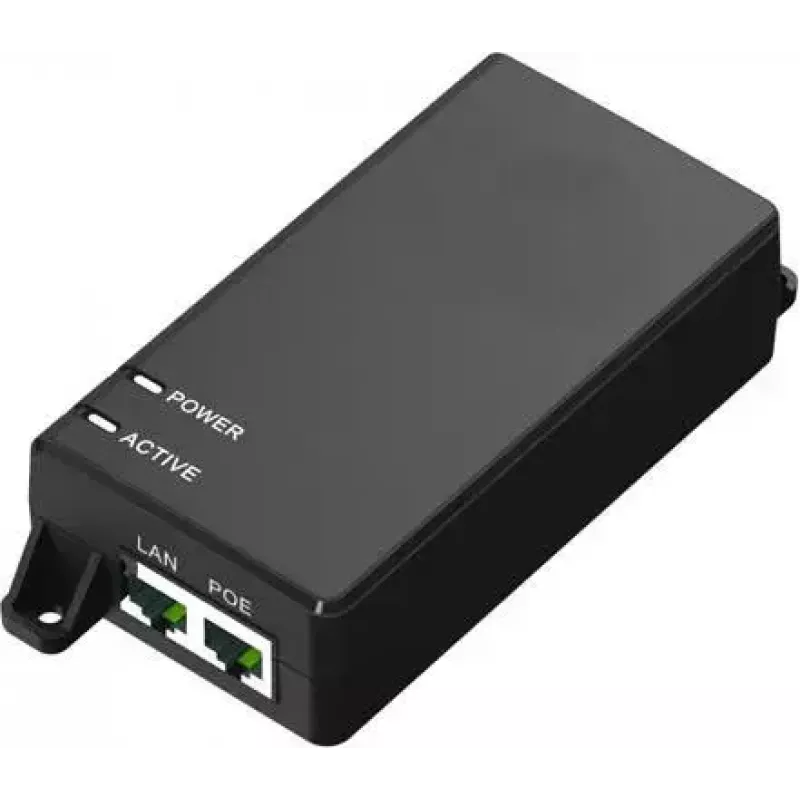

The MicroConnect POEINJ-60W-UK is a single-port Gigabit PoE adapter with two RJ45 ports: one for Ethernet data input and one for combined data and power output. It injects up to 55 V and 60 W over Ethernet to remote devices that comply with IEEE 802.3af/at (PoE/PoE+) standards. The adapter requires a network switch for data sources, mixes the switch data with power, and transmits both over a single network cable to powered devices such as wireless access points, IP cameras, VoIP phones and network switches. Compact and certified (CE, FCC, UL), it supports 100–240 V AC input and includes over-current protection.

Advantages

This PoE adapter supplies up to 60 W on the data output port while maintaining Gigabit Ethernet data rates and adheres to IEEE 802.3af/at compatibility. Its compact dimensions and 55 V PoE voltage make it suitable for installations where mains power is unavailable at the device location. Built-in protections and international safety certifications ensure stable operation and easier integration into existing network infrastructures.

Suitable for

• Wireless access points (APs)
• IP/network cameras
• VoIP phones and small network switches
• Industrial Ethernet terminals and PoE-enabled routers

Key specifications

• Model: MicroConnect POEINJ-60W-UK
• PoE output voltage: 55 V
• Power output: up to 60 W per port
• Standards: IEEE 802.3af/at compatible
• Ethernet ports: 2 × RJ45 (1 data input, 1 data+power output)
• Input voltage: 100–240 V AC
• Weight: 0.38 kg
• Colour: Black
• Certifications: CE, FCC, UL

How to use

Connect the network switch output to the adapter’s Ethernet data input port. Plug the adapter into mains power (100–240 V). Connect the PoE output port to the Ethernet port of the remote PoE device using a standard Cat5e/Cat6 cable. The adapter will combine the switch data with power and deliver both to the powered device. Ensure the powered device supports IEEE 802.3af/at and that cable runs conform to Ethernet cabling standards.

Recommendations

Install the adapter near the network switch and keep ventilation clear. Use appropriate Ethernet cable types (Cat5e or higher) for reliable Gigabit performance and limit cable length to standard Ethernet maximums to avoid voltage drop. Verify device PoE class compatibility and consult the device power requirements if multiple devices are powered from the same supply.
