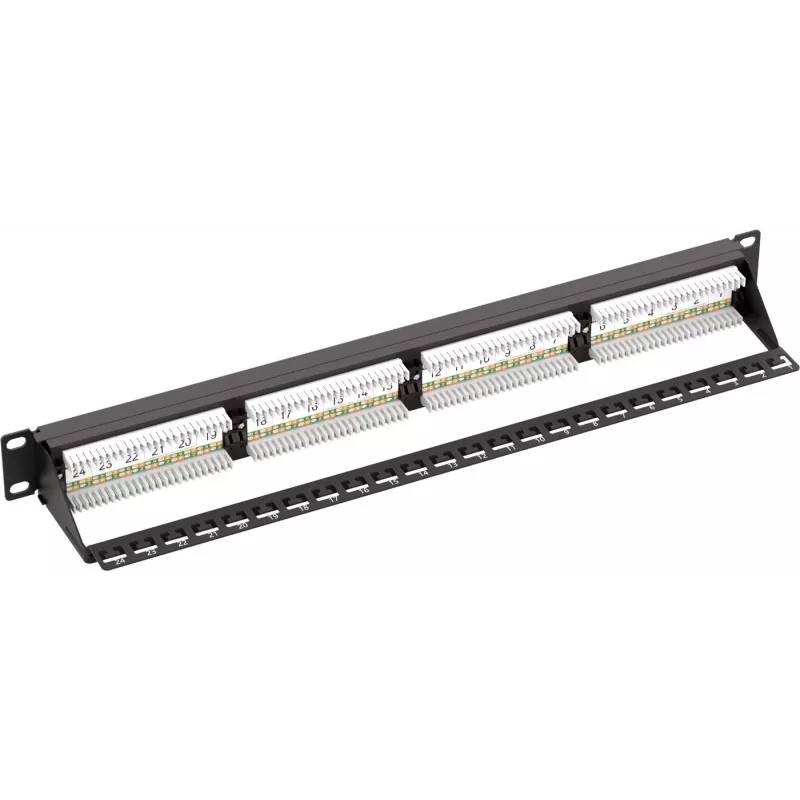

Microconnect PP-004 patch panel 1U

The Microconnect PP-004 is a 1U rack-mounted patch panel designed for 24 RJ-45 ports and Cat6 cabling environments. Its compact 1U form factor and black finish suit standard network racks, allowing tidy front-access termination and organized cable routing. The panel's metal construction balances durability with a low weight of 0.55 kg, facilitating handling and installation in equipment cabinets.

Advantages

The patch panel provides centralized cable management for Cat6 networks, reducing clutter and simplifying moves, adds and changes. Its 24-port layout supports high-density installations while maintaining clear port labeling and straightforward access. The slim 1U profile conserves rack space, and the black finish integrates with common rack aesthetics. The lightweight design makes mounting and repositioning easier for installers without compromising structural stability.

Suitable for

• Small and medium office network racks
• Server rooms and telecommunications cabinets
• Structured cabling projects using Cat6 cabling
• Patch and cross-connect panels for switches and routers

Key specifications

• Form factor: 1U rack-mount
• Ports: 24 RJ-45 ports (for Cat6)
• Cable standard support: Cat6
• Colour: Black
• Weight: 0.55 kg
• Package dimensions (approx.): 110 mm × 520 mm × 80 mm

How to use

Mount the patch panel into a standard 19-inch rack, aligning the panel's mounting holes with rack rails and securing it with appropriate rack screws. Terminate Cat6 cables to the rear IDC or punch-down positions following the T568A or T568B wiring scheme as required by your installation standards. Connect patch cords from the front RJ-45 ports to network equipment such as switches or routers, and use clear port labeling to maintain an organized cabling system. After installation, verify continuity and performance with a cable tester to ensure each port meets Cat6 requirements.

Recommendations

For reliable performance, use certified Cat6 patch cords and maintain proper cable bend radius when routing cables to the panel. Label each port and document connections in your network management records. Avoid over-tightening rack screws and ensure adequate airflow in the rack to prevent overheating of adjacent active equipment.
