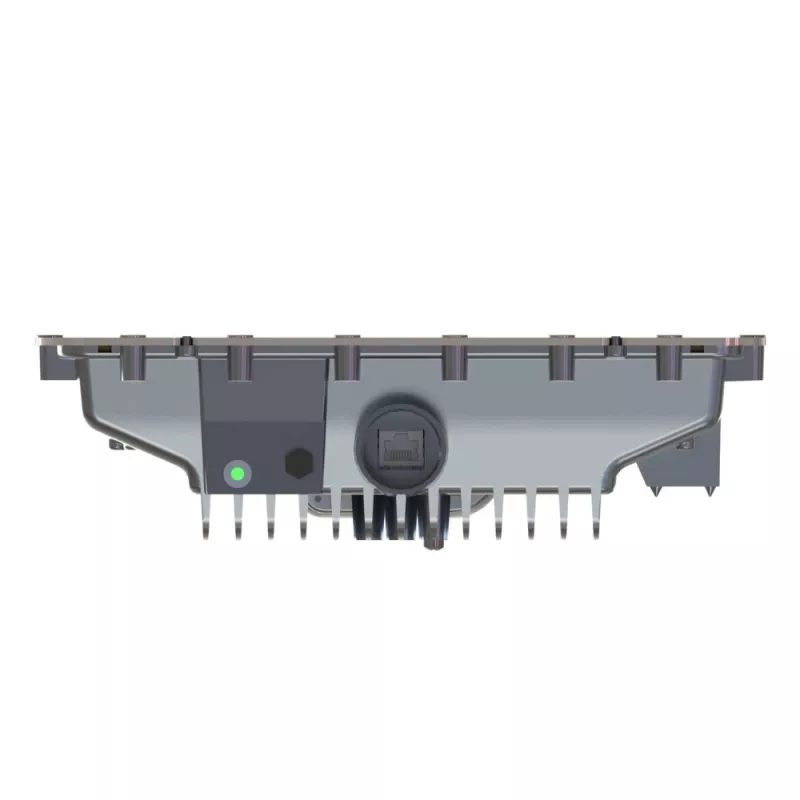

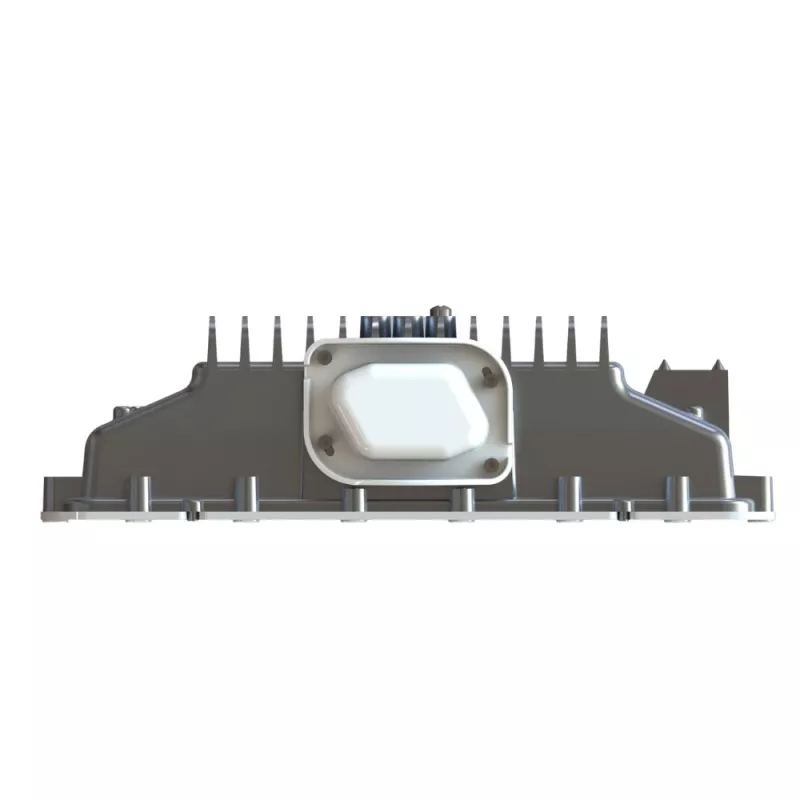

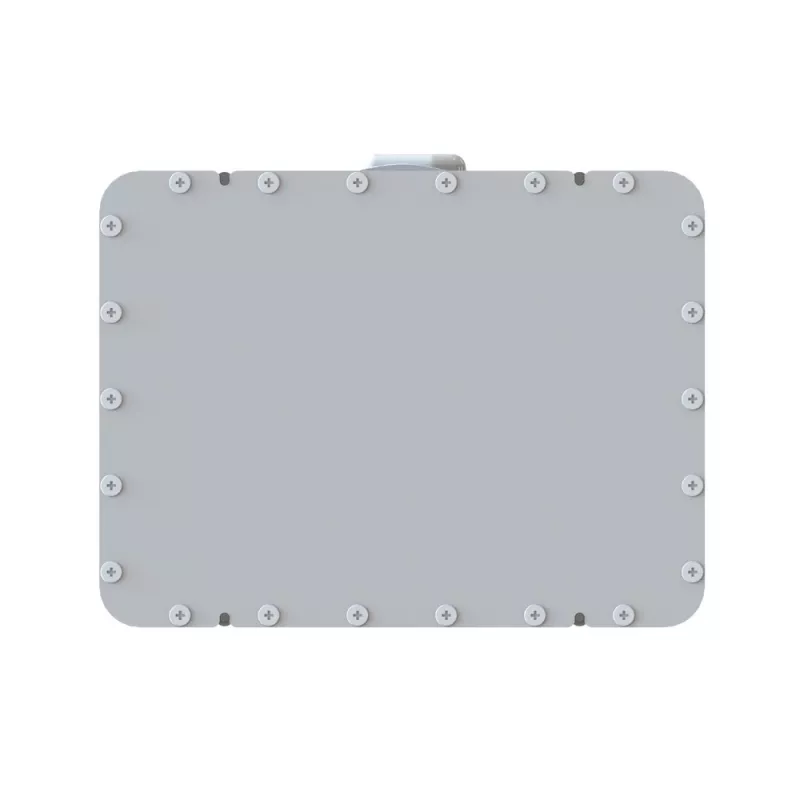

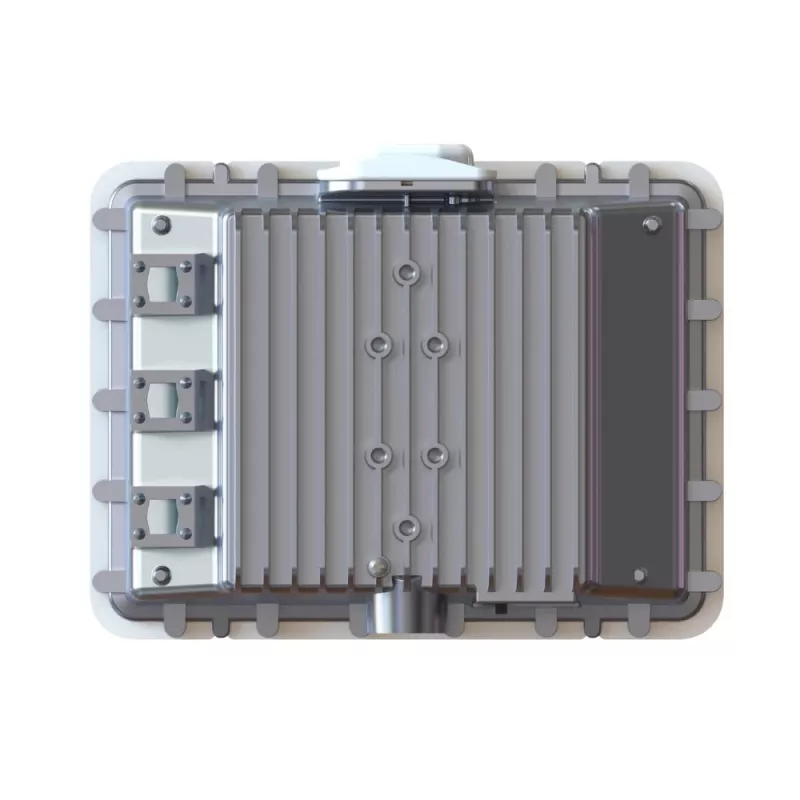

Mimosa C6 Gigabit PTMP klientske rádiové zariadenie 100-60224-03

Where ordinary client radios struggle with interference and latency, the Mimosa C6 stands apart by pairing a high-gain 19 dBi directional antenna with Mimosa's proprietary SRS (Synchronized Radio Stream) technology. This combination delivers up to 600 Mbps of reliable throughput in point-to-multipoint networks, making it a standout choice for fixed wireless access in dense deployments.

Highlights

• Operates in the 4.9–6.4 GHz band with dual-slant 45° polarization and 2x2:2 MIMO OFDM for robust links.
• Supports 20/40/80 MHz channel bandwidths and achieves sub-1 ms latency, ideal for voice and video.
• Integrated directional antenna with 19 dBi gain extends range while reducing noise.
• IP55 weather-resistant enclosure and wide operating temperature range (-40°C to 55°C) ensure year-round outdoor performance.
• Powered by 24–56V passive PoE (injector not included) with only 10 W maximum consumption.

In daily use

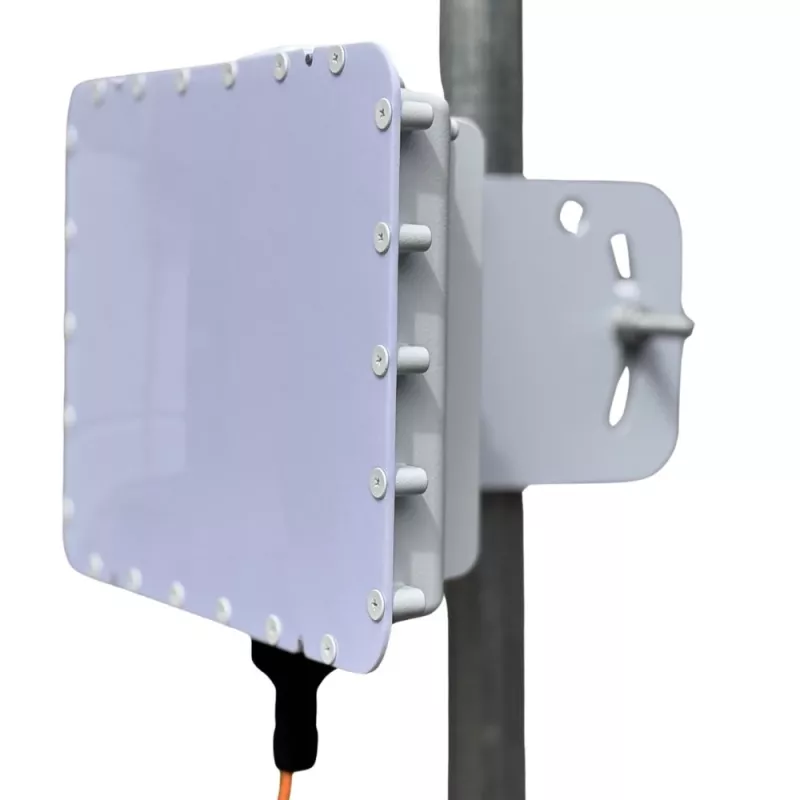

As a client radio, the C6 connects to a Mimosa access point and delivers fiber-like speeds to homes or businesses. Its synchronized protocol eliminates packet collisions, so multiple clients can transmit simultaneously without degrading performance. The single Gigabit Ethernet port handles full throughput, and 128-bit AES encryption keeps data secure. Installation is straightforward with the included pole mount, and the compact design blends into rooftops or masts.

Full specifications

• Wireless Standard: Mimosa SRS (Synchronized Radio Stream)
• Operating Mode: Point-to-Multipoint (PTMP) Client
• Frequency Band: 4.9-6.4 GHz
• Max Throughput: Up to 600 Mbps
• Antenna Gain: 19 dBi
• Antenna Type: Integrated Directional
• Polarization: Dual-Slant 45°
• MIMO Configuration: 2x2:2 MIMO OFDM
• Channel Bandwidth: 20/40/80 MHz
• Ethernet Ports: 1x Gigabit Ethernet (RJ45)
• Power Method: 24-56V Passive PoE (PoE Injector not included)
• Max Power Consumption: 10 W
• Operating Temperature: -40°C to 55°C (-40°F to 131°F)
• Enclosure Rating: IP55 Weather Resistant
• Security: 128-bit AES Encryption
• Latency: < 1 ms
• Mounting: Pole Mount (included)

Final note

The Mimosa C6 is a high-performance client radio engineered for reliable, low-latency connectivity in demanding outdoor environments.
