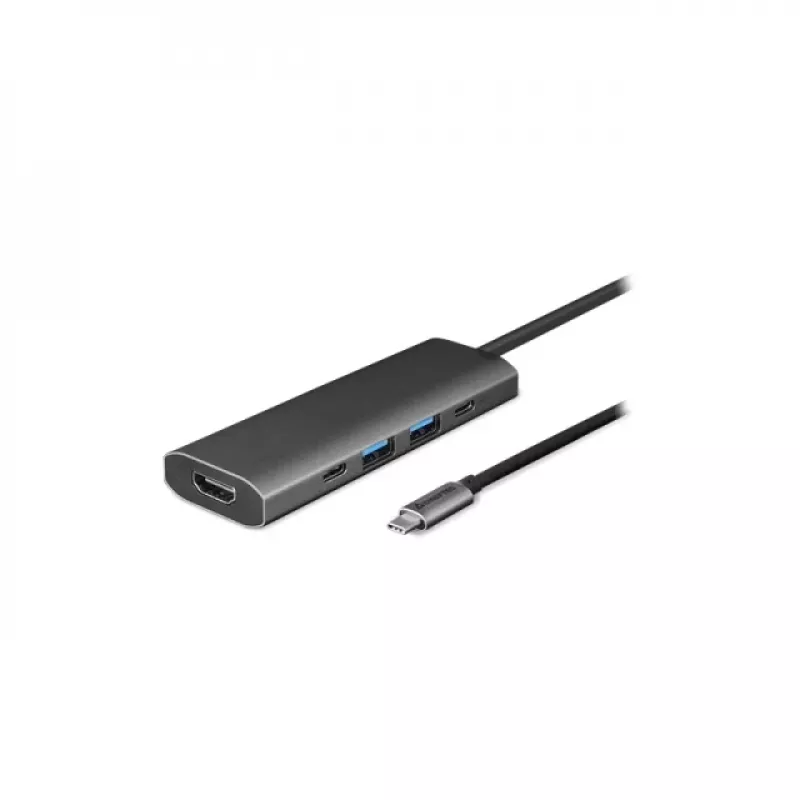

Mobilná dokovacia stanica Chieftec DSC-502 USB Type-C sivá

The CHIEFTEC DSC-502 is a compact 5-in-1 USB Type-C dock station that expands connectivity for notebooks and other USB-C devices. It supports USB Power Delivery 3.0 with up to 80W charging, one HDMI 2.0 port with 4K@30Hz output, two USB 3.2 Gen1 Type-A ports and an extra USB Type-C port, all in a lightweight grey housing with compact dimensions.

Advantages

The DSC-502 combines power delivery and multiple data/video interfaces in a small form factor suitable for mobile use. USB Power Delivery 3.0 enables charging of compatible laptops and devices up to 80W, while HDMI 2.0 provides a 4K@30Hz external display option. Two USB 3.2 Gen1 Type-A ports offer high-speed data transfer for peripherals, and the additional USB-C port increases flexibility for modern accessories. Its light weight and compact dimensions make it convenient to carry with a notebook.

Suitable for

• Expanding connectivity on USB-C notebooks and ultrabooks
• Connecting an external monitor via HDMI 2.0 (4K@30Hz)
• Attaching USB peripherals such as external drives, keyboards and mice
• Charging laptops and USB-C devices using Power Delivery 3.0 up to 80W

Key specifications

• Model: CHIEFTEC DSC-502
• Dock type: 5-in-1 USB Type-C docking station
• Power Delivery: USB PD 3.0, up to 80W
• Video output: 1 × HDMI 2.0 (supports up to 4K@30Hz)
• USB ports: 2 × USB 3.2 Gen1 Type-A; 1 × USB Type-C (data/power as supported)
• Dimensions: 103 × 35 × 13 mm
• Weight: 55.2 g
• Colour: Grey
• Compliance: CB EAC

How to use

Connect the DSC-502 to a USB Type-C port on your notebook using the built-in cable or supplied connector. To use external display functionality, connect an HDMI cable from the dock's HDMI 2.0 port to the monitor and set the display mode on the notebook. Plug USB peripherals into the Type-A or Type-C ports for data transfer or peripheral use. If charging is required, attach a compatible USB-C power adapter that supports Power Delivery; the dock will negotiate up to 80W with supported hosts and chargers.

Recommendations

Use a Power Delivery-compliant USB-C charger of appropriate wattage to ensure stable charging. For 4K output, use HDMI 2.0-certified cables and verify that the host device supports DisplayPort over USB-C or HDMI alt mode as required.
