Modem ALLNET ALL-BM310

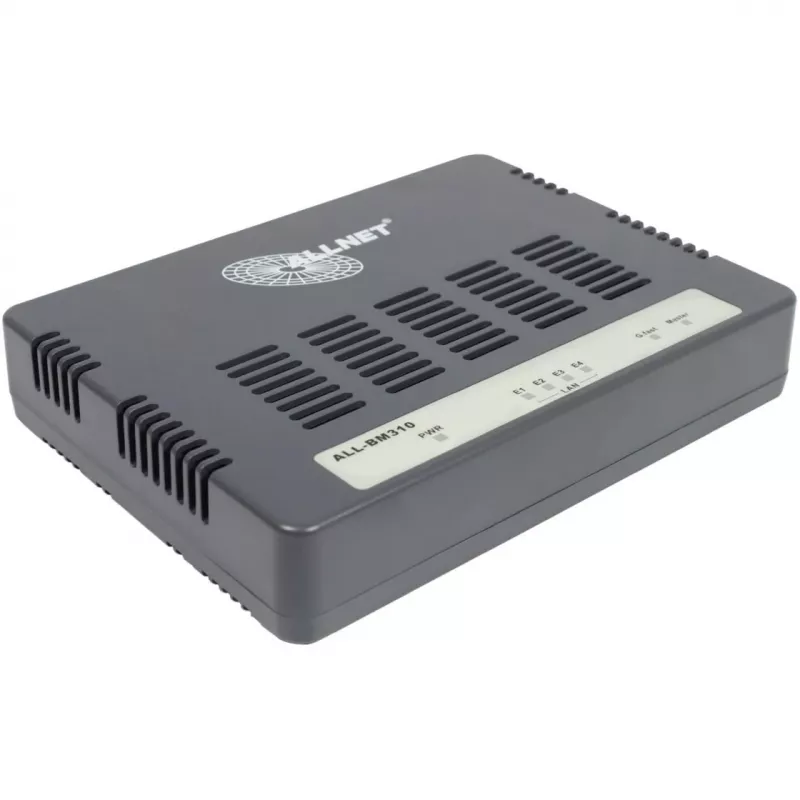

The ALLNET ALL-BM310 is a G.fast modem designed to deliver high-speed broadband connectivity up to 100000 Kbit/s. Housed in a compact black enclosure, this device integrates a managed switch and standard IEEE 802.3 Ethernet interfaces to connect multiple wired devices. It supports modern network security features including an IPv6-capable firewall, URL filtering and parental control, and accepts a 12V DC power input. Compliance with RoHS, CE and FCC indicates adherence to common safety and electromagnetic compatibility requirements.

Advantages

The modem provides G.fast technology for fast downstream and upstream throughput over short copper lines, while the integrated managed switch simplifies local network segmentation and traffic management. Security functions such as IPv6 firewall, URL filtering and parental control add layers of protection and policy enforcement. Compact form factor and standard IEEE 802.3 Ethernet ports allow straightforward deployment in home or small-business wiring closets. Compliance with RoHS, CE and FCC ensures the device meets widely recognized regulatory and environmental requirements.

Suitable for

• High-speed internet delivery over existing copper infrastructure using G.fast
• Small office or home networks requiring managed switching and basic security
• Environments where IPv6 support and firewall filtering are required

Key specifications

• Broadband technology: G.fast with maximum throughput up to 100000 Kbit/s

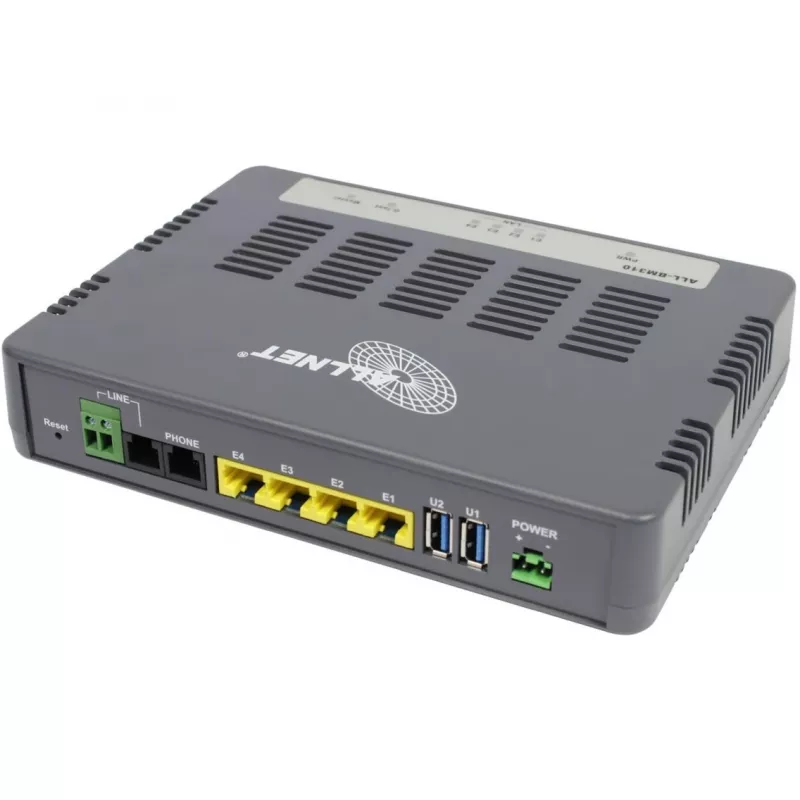

• Ethernet interfaces: IEEE 802.3 compliant ports for wired connections
• Network management: integrated managed switch functionality
• Security features: IPv6 firewall, URL filtering, parental control

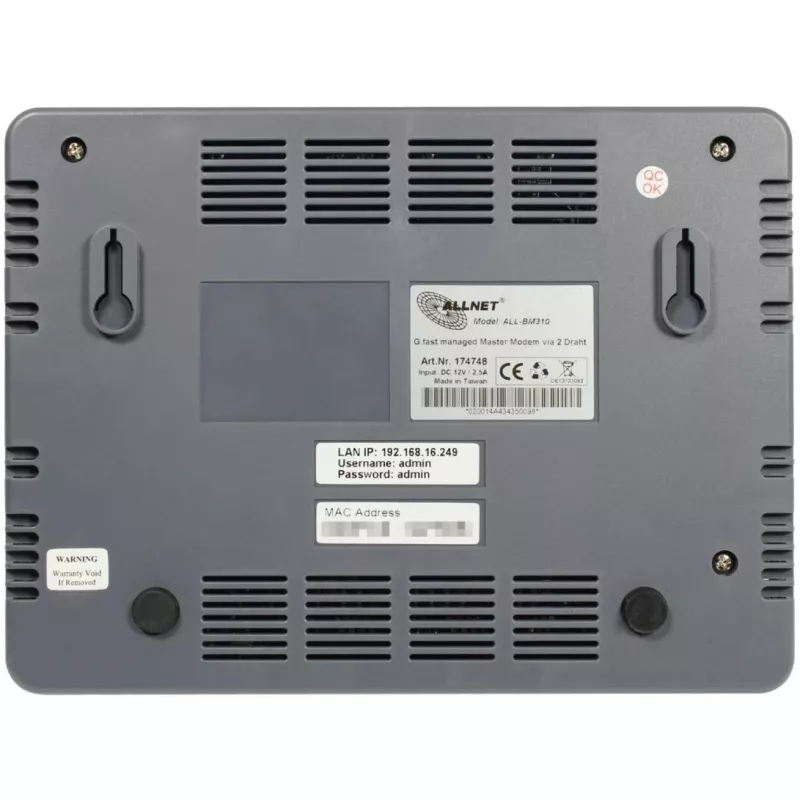

• Power input: 12V DC
• Color: black
• Regulatory compliance: RoHS, CE, FCC

How to use

Install the ALLNET ALL-BM310 near the existing copper distribution or termination point and connect the G.fast line to the designated DSL/copper port. Use standard Ethernet cables to connect client devices or upstream network equipment to the IEEE 802.3 ports. Power the unit with a compatible 12V DC adapter. Access the device management interface to configure network settings, enable the managed switch features, and set up security policies such as firewall rules, URL filters and parental control profiles. Apply firmware updates from the vendor as they become available to maintain stability and security.

Ieteikumi lietošanai

The modem should be installed in a dry, well-ventilated location away from strong electromagnetic interference sources. Regularly review security settings and update firmware to reduce exposure to vulnerabilities.
