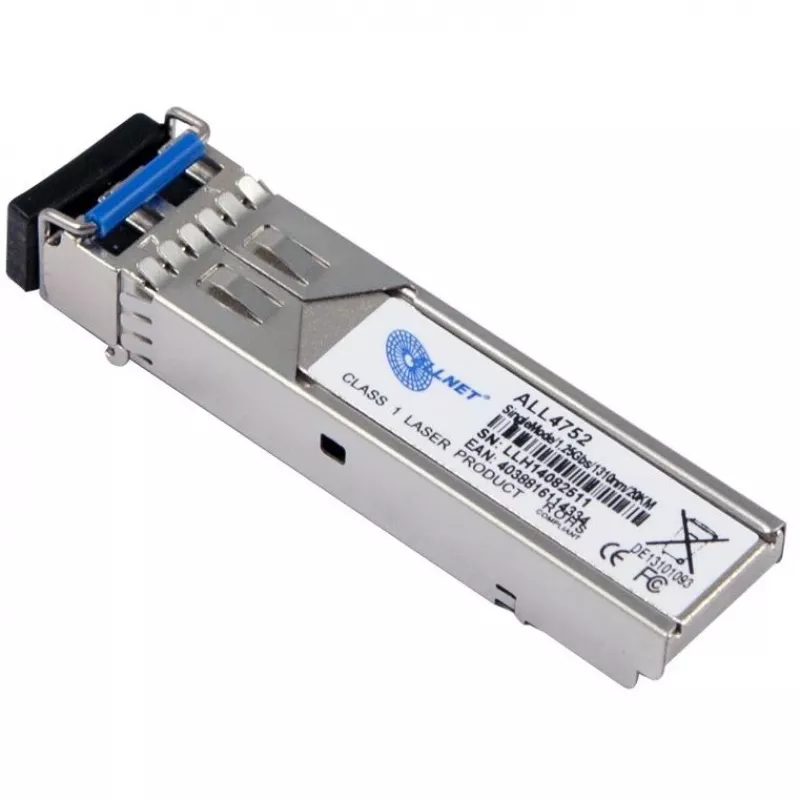

Modul optického transceivera ALLNET ALL4752-INDU

The ALLNET ALL4752-INDU is a fiber optic SFP transceiver module engineered for gigabit Ethernet links. It supports a maximum data transfer rate of 1000 Mbit/s and is built in a compact SFP (MiniGBIC) form factor for straightforward installation into compatible switches, media converters and industrial networking equipment. With support for single-mode fiber links reaching up to 20,000 meters, this transceiver is intended for extended-reach network segments where reliable optical connectivity is required.

Advantages

This fiber optic transceiver offers a standardized SFP interface for hot-pluggable installation, enabling quick upgrades or replacements without downtime. The module’s support for 1000 Mbit/s throughput ensures full gigabit performance for backbone or point-to-point fiber links. Its single-mode, long-reach capability to 20,000 meters makes it suitable for industrial and campus environments where long-distance fiber runs are necessary. The compact MiniGBIC connector and SFP housing minimize space requirements in densely populated equipment racks.

Suitable for

• Industrial Ethernet networks requiring long-reach fiber connections
• Point-to-point links between buildings or sites across campus networks
• Integration into switches or media converters with SFP ports
• Upgrading existing network segments to gigabit fiber connectivity

Key specifications

• Maximum data transfer rate: 1000 Mbit/s
• Maximum transfer distance: up to 20,000 m over single-mode fiber
• Form factor: SFP (MiniGBIC)
• Fiber type: single-mode optical fiber (long-reach)
• Interface: optical SFP module for insertion into compatible ports

How to use

To install the ALLNET ALL4752-INDU, power down or use hot-swap capability on the host device and insert the SFP module into an available SFP slot following the equipment manufacturer’s guidance. Connect the single-mode fiber cable using the MiniGBIC-compatible connector and secure both ends at the transceiver and the remote device. Ensure correct optical polarity and that link partners are configured for 1000 Mbit/s operation. Verify link status via the host device LED indicators or management interface and monitor signal levels where supported.

Recommendations

Use single-mode fiber rated for long-reach runs and maintain proper fiber handling to avoid contamination. Verify compatibility with the host equipment SFP port and observe ESD precautions during handling and installation. For reliable long-distance links, confirm that transceiver optical budgets and connector cleanliness meet the network design requirements.
