Modul tlačidla zvončeka Schneider Electric Ritto 1840170

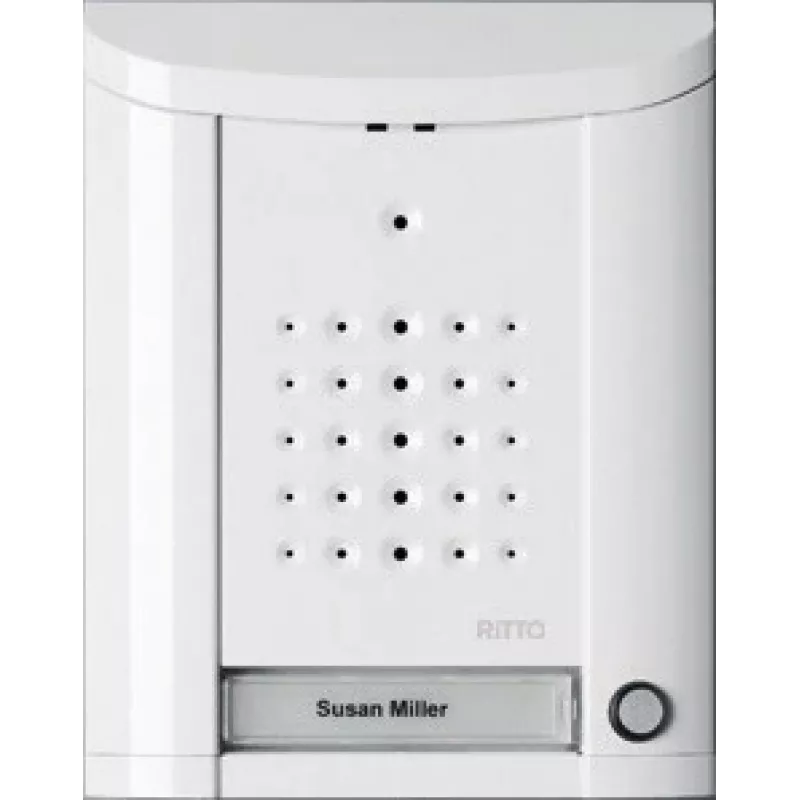

The Schneider Electric Ritto 1840170 call button module is a surface-mounted accessory designed for intercom systems. Finished in white, the module measures 141 mm in width, 22 mm in depth and 178 mm in height, providing a compact and unobtrusive interface for door communication. The unit is intended to be mounted on the surface of walls or panels where access to a call button is required and integrates with compatible Ritto intercom installations to enable visitor calls and simple user interaction.

Advantages

The call button module offers a slim profile and a clean white appearance that fits modern interior and exterior mounting locations. Its surface-mounted form factor simplifies installation where recessed mounting is impractical. The dimensions provide a clearly visible calling interface while keeping the unit compact. The module is built to interface with standard Ritto intercom wiring and provides reliable mechanical operation for repeated use.

Suitable for

Key specifications

How to use

Install the module on a suitable flat surface, securing it with appropriate screws or fasteners for the mounting material. Connect the module wiring to the Ritto intercom system following the system wiring diagram and local electrical regulations. After connection, verify that the call button actuates correctly and that calls are received at the corresponding indoor stations. For maintenance, periodically check mounting stability and clean the exterior with a soft, dry cloth; disconnect power before any more significant inspection.

Recommendations

Use the module in environments within typical indoor or sheltered exterior conditions to avoid prolonged exposure to direct weather without appropriate protection. Ensure wiring and installation are performed by a qualified technician familiar with Ritto/Schneider Electric intercom systems to maintain system integrity and safety.
